WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE 0003 1INSTRUMENT PANEL 0004 1FLOOR 0005 1DOOR, SEAT, ROOF & BACK DOOR 0006 1CLAMP 0007 1DIODE 0008 1CABLE BOND 0009 1REPAIR WIRE 0010 1REPAIR WIRE

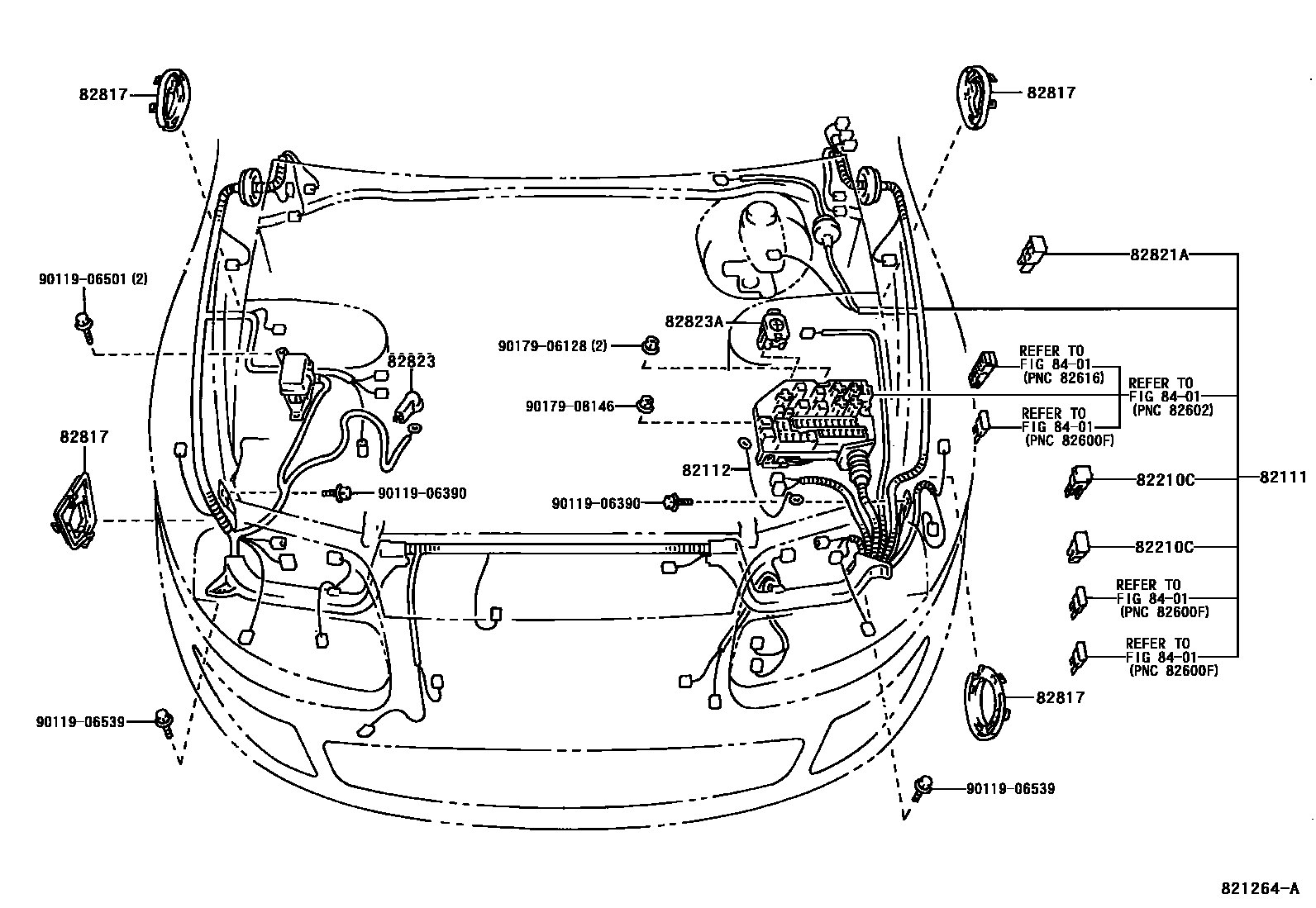

82111WIRE, ENGINE ROOM MAIN

main82111-1B510iJZA80..TWC199305-199607

main82111-1B520iJZA80..TWT..USA199305-199601

main82111-1B521iJZA80..TWT..USA199601-199607

main82111-1B540iJZA80..CND199308-199601

main82111-1B541iJZA80..CND199601-199607

main82111-1B620iJZA80..TWC199607-199709

main82111-1B621iJZA80..TWC199709-199805

main82111-1B630iJZA80..TWT..USA199607-199805

main82111-1B640iJZA80..CND199607-199709

82112WIRE, ENGINE ROOM, NO.2

main82112-14020iJZA80199305-199808

82210CFUSIBLE LINK

main90982-08188iJZA80..TWT199305-199805

30A,TERM.:FEMALE,PNK

main90982-08190iJZA80..USA199305-199805

60A,TERM.:FEMALE,YEL

main90982-08227iJZA80199607-199805

50A,TERM.:FEMALE,RED

main90982-08271iJZA80199305-199805

120A,TERM.:MALE,WHT

main90982-08277iJZA80..CND199305-199607

50A,TERM.:FEMALE,RED

main90982-08283iJZA80199607-199808

30A,TERM.:FEMALE,PNK,HOUSING=ORANGE

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-24480iJZA80199305-199805

FRONT LH APRN

main82817-24490iJZA80..TWT199305-199805

FRONT RH APRN

main82817-24500iJZA80..TWC199305-199805

FRONT RH APRN

main82817-24511iJZA80199305-199805

REAR APRN

82821ACOVER, CONNECTOR

main82821-30460iJZA80..TWC199305-199310

82823CAP, TERMINAL, NO.1

main82823-24030iJZA80199305-199805

82823ACAP, TERMINAL, NO.2

main82823-14100iJZA80199305-199805

8401

9011906390

main90119-06390

9011906501

main90119-06501

9011906539

main90119-06539

9017906128

main90179-06128

9017908146

main90179-08146

13 parts on this diagram · 10 diagrams in section
