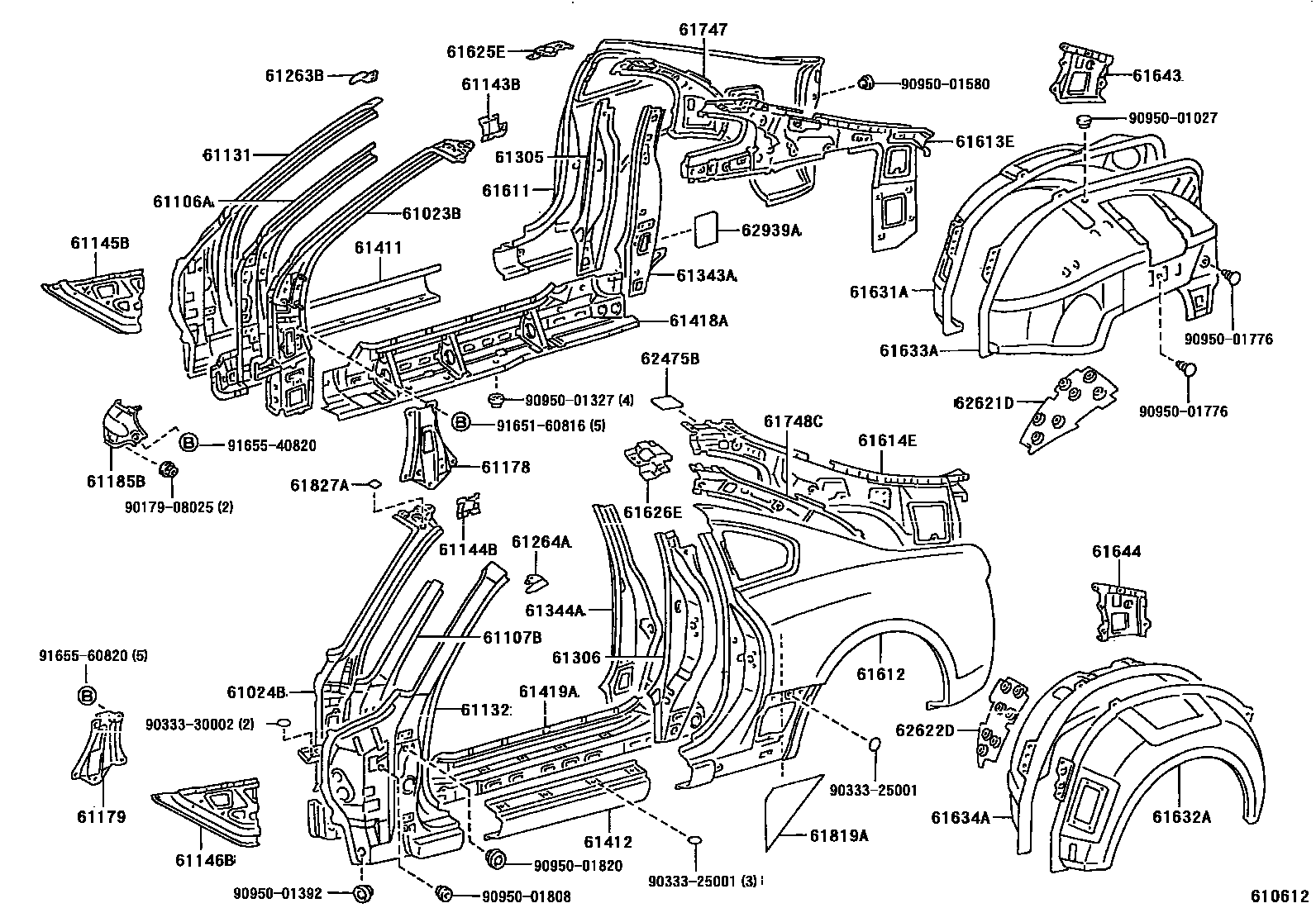

SIDE MEMBER
61106AREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH
61107BREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61132PILLAR, FRONT BODY, UPPER OUTER LH
61143BGUSSET, FRONT BODY PILLAR, UPPER INNER RH
61144BGUSSET, FRONT BODY PILLAR, UPPER INNER LH
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
61146BGUSSET, FRONT BODY PILLAR, LOWER LH
61178REINFORCEMENT, FRONT BODY PILLAR, LOWER INNER RH
61179REINFORCEMENT, FRONT BODY PILLAR, LOWER INNER LH
61185BBRACKET, INSTRUMENT PANEL SIDE, NO.3 RH
61263BCHANNEL, ROOF DRIP SIDE, FRONT RH
61264ACHANNEL, ROOF DRIP SIDE, FRONT LH
61343APILLAR, CENTER BODY, INNER RH
61344APILLAR, CENTER BODY, INNER LH
61411PANEL, ROCKER, OUTER RH
61412PANEL, ROCKER, OUTER LH
61418AREINFORCEMENT, ROCKER PANEL, RH
61419AREINFORCEMENT, ROCKER PANEL, LH
61611PANEL, QUARTER, RH
61612PANEL, QUARTER, LH
61613EPANEL, QUARTER, INNER RH
61614EPANEL, QUARTER, INNER LH
61625EEXTENSION, QUARTER PANEL, INNER REAR RH
61626EEXTENSION, QUARTER PANEL, INNER REAR LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
61643GUSSET, QUARTER WHEEL HOUSE CENTER, RH
61644GUSSET, QUARTER WHEEL HOUSE, CENTER LH
61747BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH
61748CBRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH
61819ASEAL, ROOF SIDE INNER LOWER COVER
RH
LH
61827APLATE, NOISE CONTROL, NO.4
62475BSEAL, ROOF SIDE, INNER
sub61824-12120
62621DPAD, QUARTER WHEEL HOUSE, INNER FRONT RH
62622DPAD, QUARTER WHEEL HOUSE, INNER FRONT LH
62939ASILENCER, QUARTER VENT
9017908025
main90179-08025
9033325001
main90333-25001
9033330002
main90333-30002
9095001027
main90950-01027
9095001327
main90950-01327
9095001392
main90950-01392
9095001580
main90950-01580
9095001776
main90950-01776
9095001808
main90950-01808
9095001820
main90950-01820
9165160816
main91651-60816
9165540820
main91655-40820
9165560820
main91655-60820
56 parts on this diagram · 2 diagrams in section
