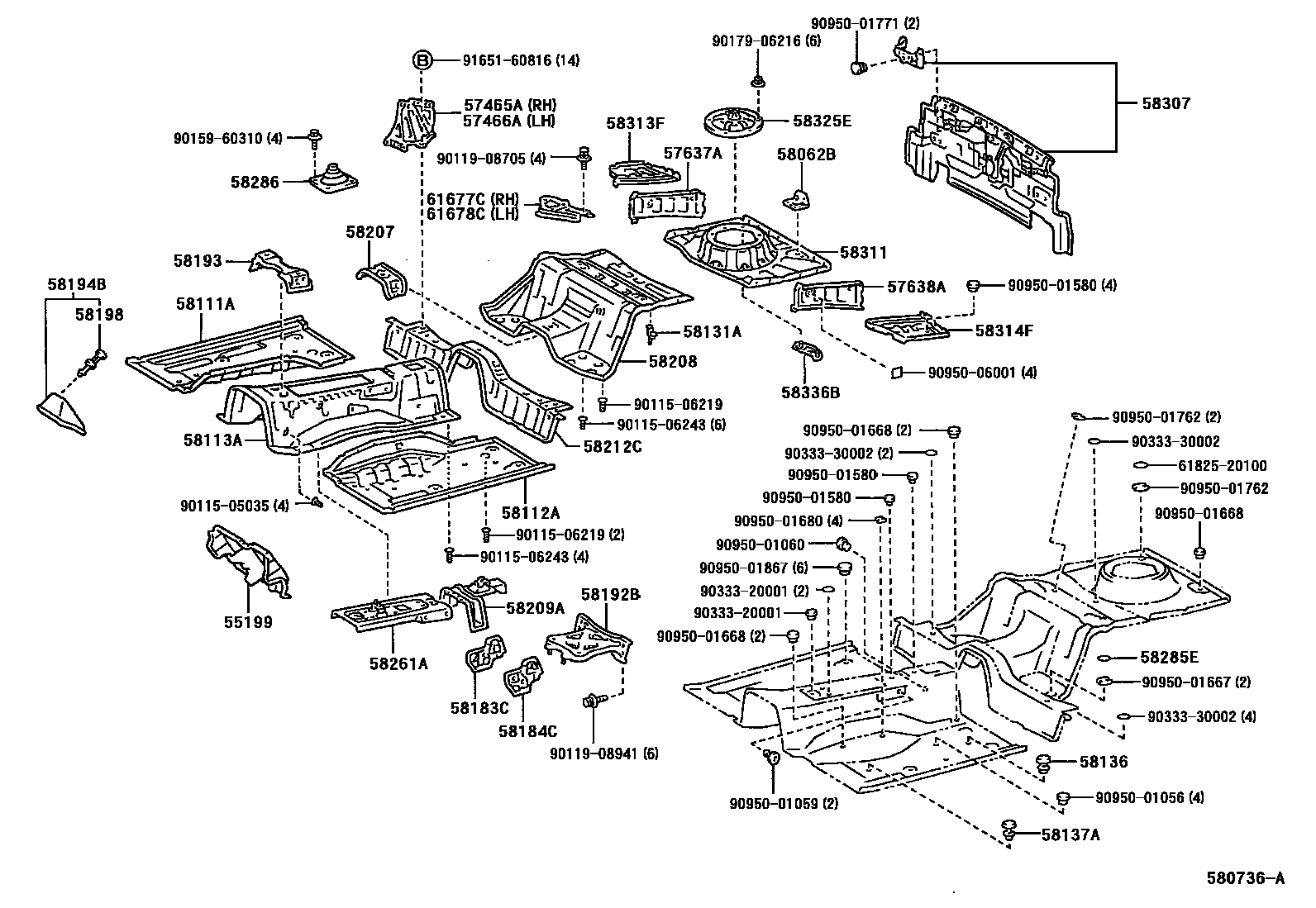

FLOOR PAN & LOWER BACK PANEL
55199COVER, DASH PANEL COMPUTER
57465AGUSSET, CENTER FLOOR CROSSMEMBER, RH
57466AGUSSET, CENTER FLOOR CROSSMEMBER, LH
57637AREINFORCEMENT, REAR FLOOR SIDE, RH
57638AREINFORCEMENT, REAR FLOOR SIDE, LH
58062BBRACKET SUB-ASSY, FUEL TANK MOUNTING, LH
58111APAN, FRONT FLOOR, RH
58112APANEL, FRONT FLOOR, LH
58113APANEL, FRONT FLOOR, CENTER
58131ABRACKET, FRONT FLOOR HEAT INSULATOR, NO.1
58136COVER, FRONT FLOOR HOLE
58137ASEAL, FRONT FLOOR HOLE
58183CBRACKET, FRONT SEAT MOUNTING, INSIDE RH
58184CBRACKET, FRONT SEAT MOUNTING, INNER LH
58192BPLATE, FRONT FLOOR, REAR
58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING
58194BFOOTREST, FRONT FLOOR, NO.3
58198CLIP, FOOTREST
58207BRACKET SUB-ASSY, PARKING BRAKE CABLE, NO.1
58208PAN, CENTER FLOOR
58209AREINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT
58212CPAN, CENTER FLOOR, FRONT
58261ACOVER, TRANSMISSION
58285ECOVER, CENTER FLOOR HOLE
58286BOOT, SHIFT & SELECT LEVER, NO.1
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58336BREINFORCEMENT, REAR FLOOR PAN
6182520100PLATE, QUARTER INNER PANEL, LOWER FRONT RH
main61825-20100
9011505035
main90115-05035
9011506219
main90115-06219
9011506243
main90115-06243
9011908705
main90119-08705
9011908941
main90119-08941
9015960310
main90159-60310
9017906216
main90179-06216
9033320001
main90333-20001
9033330002
main90333-30002
9095001056
main90950-01056
9095001059
main90950-01059
9095001060
main90950-01060
9095001580
main90950-01580
9095001667
main90950-01667
9095001668
main90950-01668
9095001680
main90950-01680
9095001762
main90950-01762
9095001771
main90950-01771
9095001867
main90950-01867
9095006001
main90950-06001
9165160816
main91651-60816
55 parts on this diagram · 2 diagrams in section
