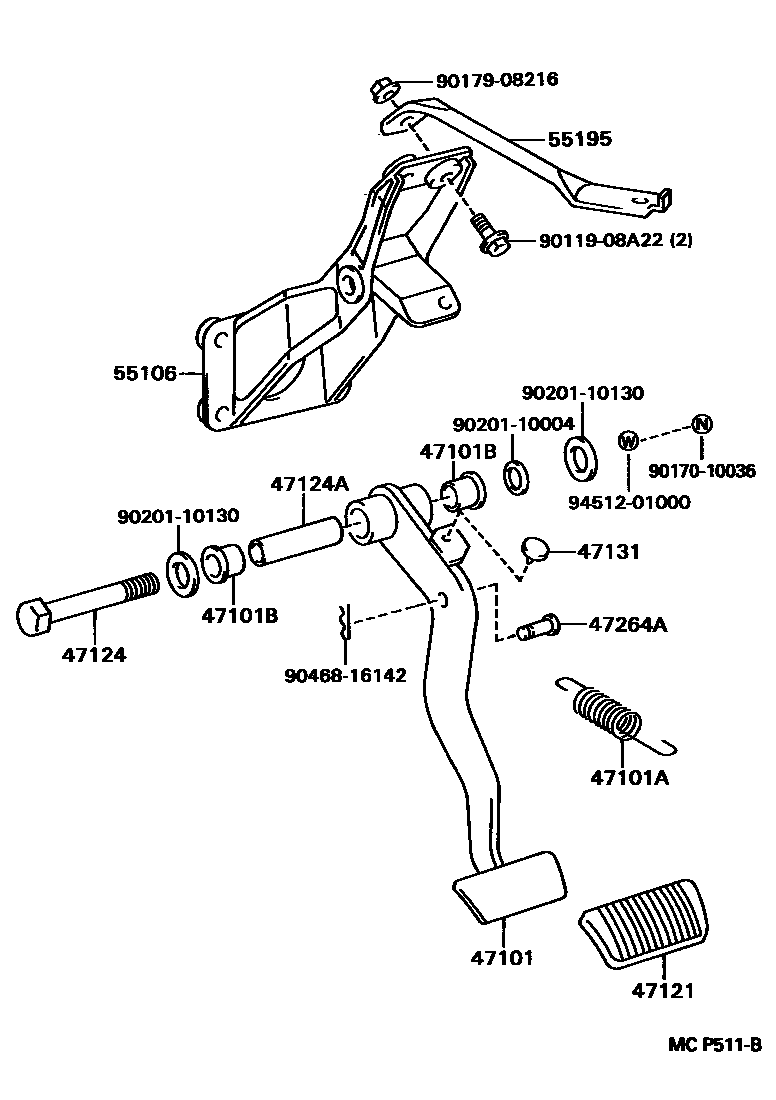

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-14230iJZA80..MTM199305-199808

main47101-14240iJZA80..4FC199305-199808

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90905-07004iJZA80199305-199808

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iJZA80199305-199808

47121PAD, BRAKE PEDAL

main31321-14020iJZA80..MTM199305-199808

main47121-14010iJZA80..4FC199305-199808

47124SHAFT, BRAKE PEDAL

main90101-10081iJZA80199305-199808

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10135iJZA80199305-199808

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iJZA80199305-199808

47264APIN(FOR PUSH ROD)

main90249-10064iJZA80199305-199808

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55171-14170iJZA80199305-199808

55195STAY, PEDAL BRACKET, NO.1

main55195-14010iJZA80199305-199808

9011908A22

main90119-08A22

9017010036

main90170-10036

9017908216

main90179-08216

9020110004

main90201-10004

9020110130

main90201-10130

9046816142

main90468-16142

9451201000

main94512-01000

17 parts on this diagram · 1 diagram in section
