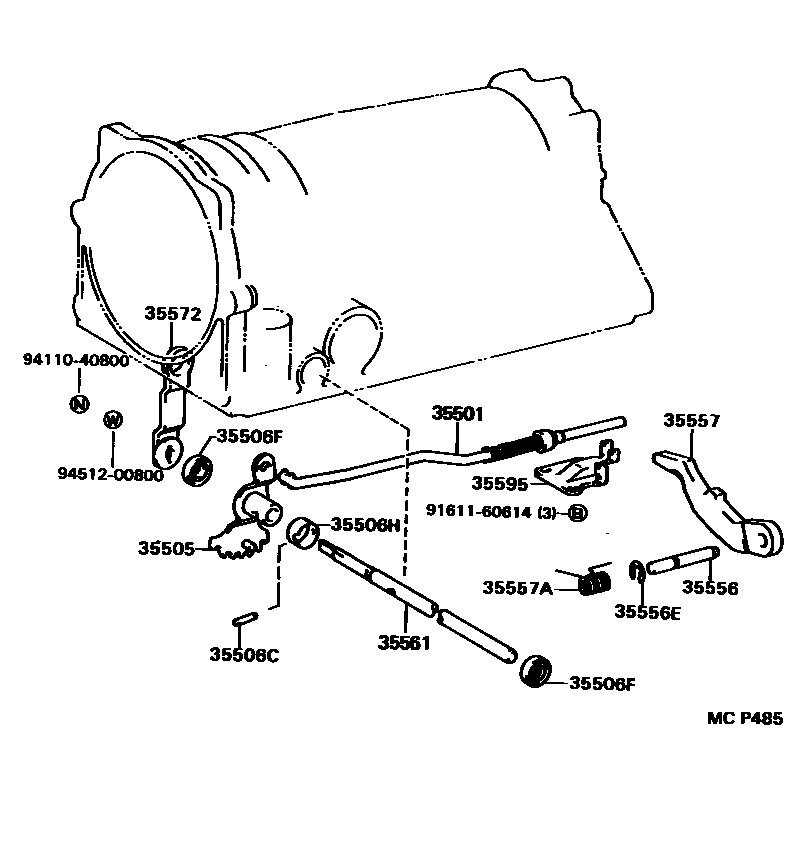

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A340E 0002 1A340E

35501ROD SUB-ASSY, PARKING LOCK

main35501-30010iJZA80..4FC199305-199607

main35501-60010iJZA80..4FC199607-199808

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-14010iJZA80..4FC199305-199808

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iJZA80..4FC199305-199808

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12001iJZA80..4FC199709-199808

sub90311-12002

main90311-12002iJZA80..4FC199305-199709

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20006iJZA80..4FC199305-199808

35556SHAFT, PARKING LOCK PAWL

main35556-30020iJZA80..4FC199305-199808

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iJZA80..4FC199305-199808

35557PAWL, PARKING LOCK

main35557-30020iJZA80..4FC199305-199607

main35557-60020iJZA80..4FC199607-199808

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21002iJZA80..4FC199305-199808

35561SHAFT, MANUAL VALVE LEVER

main35561-30070iJZA80..4FC199305-199808

35572LEVER, TRANSMISSION CONTROL SHAFT, RH

main35572-30060iJZA80..4FC199306-199808

main35572-50011iJZA80..4FC199305-199306

sub35572-30060

35595BRACKET, PARKING LOCK PAWL

main35595-30010iJZA80..4FC199305-199607

main35595-60010iJZA80..4FC199607-199808

9161160614

main91611-60614

9411040800

main94110-40800

9451200800

main94512-00800

15 parts on this diagram · 2 diagrams in section
