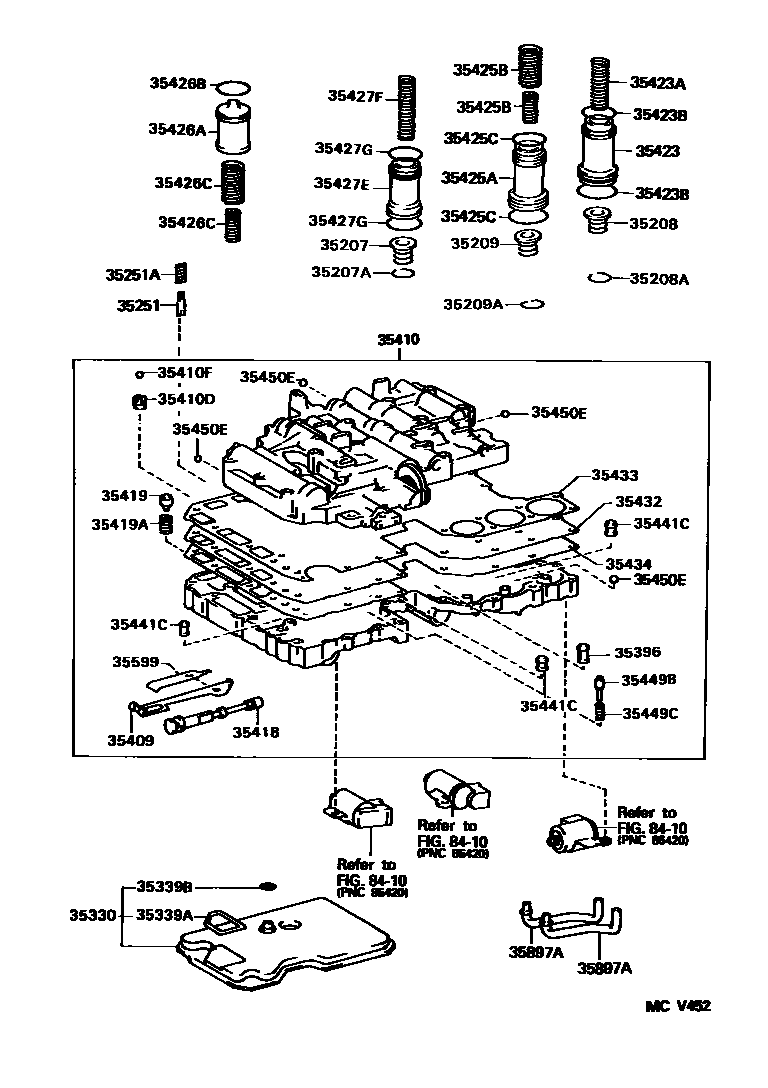

VALVE BODY & OIL STRAINER (ATM)
35207SPRING SUB-ASSY, B-0 ACCUMULATOR
35207ARING, HOLE SNAP (FOR B-0 ACCUMULATOR SPRING)
35208SPRING SUB-ASSY, B-2 ACCUMULATOR
35208ARING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING)
35209SPRING SUB-ASSY, C-2 ACCUMULATOR
35209ARING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING)
35251BODY, CHECK BALL
35251ASPRING, COMPRESSION (FOR CHECK BALL BODY)
35330STRAINER ASSY, VALVE BODY OIL
35339AGASKET, OIL STRAINER, NO.1
35339BGASKET, OIL STRAINER, NO.2
35396STRAINER, THROTTLE OIL
35409SPRING SUB-ASSY, MANUAL DETENT
35410BODY ASSY, TRANSMISSION VALVE
35410DVALVE, CHECK
35410FBALL (FOR CHECK VALVE)
35418VALVE, MANUAL
35419VALVE, CHECK, NO.1
35419ASPRING, COMPRESSION (FOR CHECK VALVE)
35423PISTON, B-2 ACCUMULATOR
35423ASPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)
35423BRING, O (FOR B-2 ACCUMULATOR PISTON)
UPPER
UPPER
LOWER
35425APISTON, C-2 ACCUMULATOR
35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)
OUTER
OUTER
OUTER
INNER
INNER
35425CRING, O (FOR C-2 ACCUMULATOR PISTON)
UPPER
LOWER
35426APISTON, C-0 ACCUMULATOR
35426CSPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON)
OUTER
INNER
INNER
OUTER
35427EPISTON, B-0 ACCUMULATOR
35427FSPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON)
35427GRING, O (FOR B-0 ACCUMULATOR PISTON)
UPPER
UPPER
LOWER
35432PLATE, VALVE BODY, NO.1
35433GASKET, VALVE BODY, NO.1
35434GASKET, VALVE BODY, NO.2
35441CSTRAINER, SOLENOID OIL
LWR VALVE BODY
UPR VALVE BODY
35449BVALVE, PRESSURE RELIEF
35449CSPRING, COMPRESSION (FOR VALVE PRESSURE RELIEF)
35450EBALL (FOR UPPER VALVE BODY)
OD=5.535,RUBBER
OD=6.35,RUBBER
35599COVER, MANUAL DETENT SPRING
35897ATUBE, 1ST & REVERSE BRAKE, NO.1
8410
41 parts on this diagram · 12 diagrams in section
