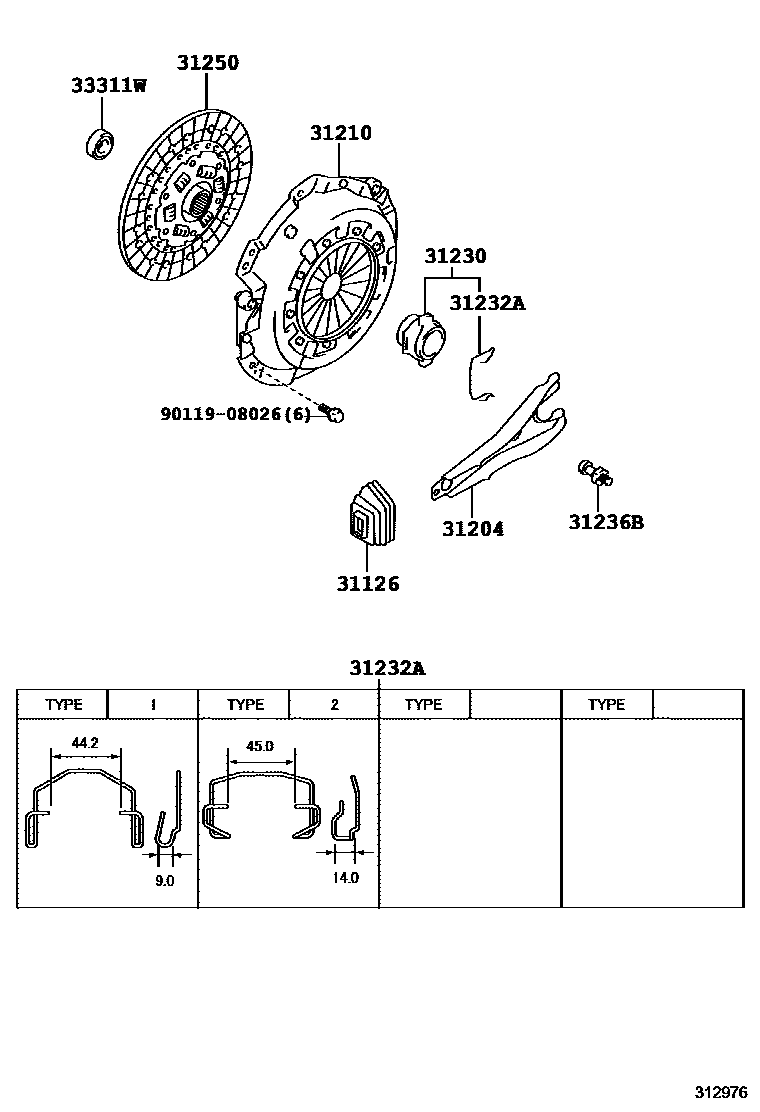

CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-22050iJZA80..5F199305-199709

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-14060iJZA80..6F199305-199808

main31204-22050iJZA80..5F199305-199709

31210COVER ASSY, CLUTCH

main31210-14170iJZA80..6F199305-199808

main31210-30260iJZA80..5F199305-199309

sub31210-30261

main31210-30261iJZA80..5F199309-199709

sub31210-30262

31230BEARING ASSY, CLUTCH RELEASE

main31230-22100iJZA80..5F199305-199709

sub31230-22101

31232ACLIP, RELEASE BEARING HUB

main31232-22020iJZA80..5F199305-199709

TYPE 1

main31232-22030iJZA80..5F199305-199709

TYPE 2

sub31232-22020

31236BSUPPORT, RELEASE FORK

main31236-14010iJZA80..5F199305-199709

main31236-14030iJZA80..6F199305-199808

31250DISC ASSY, CLUTCH

main31250-14190iJZA80..6F199305-199808

main31250-30390iJZA80..5F199305-199709

sub31250-30391

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iJZA80..MTM199305-199808

sub90363-12024

9011908026

main90119-08026

9 parts on this diagram · 2 diagrams in section
