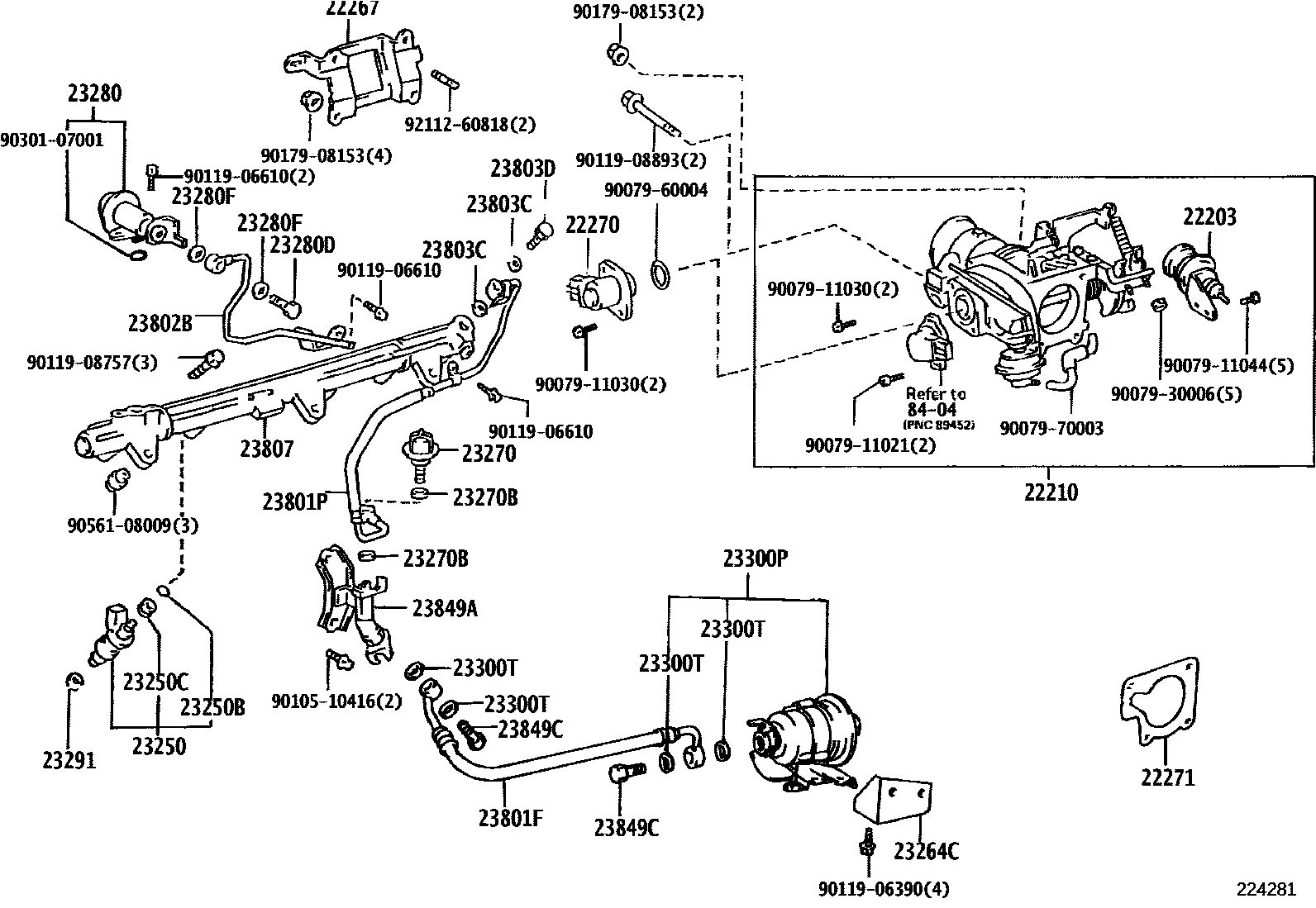

FUEL INJECTION SYSTEM
22210BODY ASSY, THROTTLE
CALIFORNIA SPEC
CALIFORNIA SPEC
22267BRACKET, THROTTLE BODY
22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
CALIFORNIA SPEC
22271GASKET, THROTTLE BODY
23250BRING, O(FOR FUEL INJECTOR)
NO.1
NO.2
23250CGROMMET(FOR FUEL INJECTOR)
23264CBRACKET, FUEL FILTER
23270DAMPER ASSY, FUEL PRESSURE PULSATION
23270BGASKET(FOR PULSATION DAMPER HOSE)
DERIVERY PIPE SIDE
DAMPER SIDE
23280REGULATOR ASSY, FUEL PRESSURE
23280DBOLT, UNION(FOR FUEL PIPE OR HOSE SET)
23280FGASKET(FOR FUEL PRESSURE REGULATOR)
23291INSULATOR, INJECTOR VIBRATION
CALIFORNIA SPEC
INJECTOR SIDE
DELIVERY PIPE SIDE
23300PFILTER, FUEL(FOR EFI)
23300TGASKET(FOR FUEL FILTER)
23801FHOSE, FUEL, NO.1
23802BPIPE SUB-ASSY, FUEL, NO.2
23803CGASKET(NOZZLE LEKAGE PIPE NO.3)
23803DBOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
23849ASUPPORT, FUEL PIPE
23849CBOLT, UNION(FOR FUEL PIPE SUPPORT)
8404
9007911021
main90079-11021
9007911030
main90079-11030
9007911044
main90079-11044
9007930006
main90079-30006
9007960004
main90079-60004
9007970003
main90079-70003
9010510416
main90105-10416
9011906390
main90119-06390
9011906610
main90119-06610
9011908757
main90119-08757
9011908893
main90119-08893
9017908153
main90179-08153
9030107001
main90301-07001
9056108009
main90561-08009
9211260818
main92112-60818
41 parts on this diagram · 6 diagrams in section
