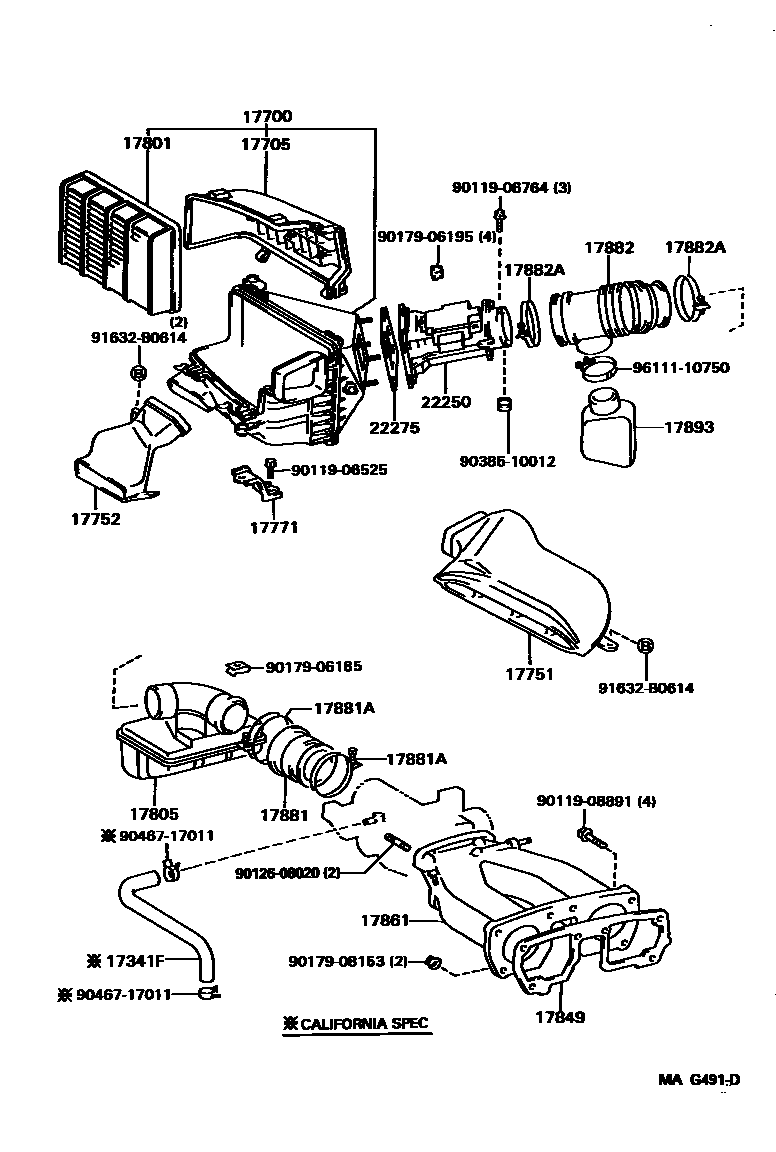

AIR CLEANER
17341FHOSE, AIR, NO.1
CALIFORNIA SPEC
17700CLEANER ASSY, AIR
17705CAP SUB-ASSY, AIR CLEANER
17751INLET, AIR CLEANER, NO.1
17752INLET, AIR CLEANER, NO.2
17771BRACKET, AIR CLEANER INLET DUCT
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17805CONNECTOR SUB-ASSY, INTAKE AIR
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
AIR CONNECTOR SIDE
RESONATOR SIDE
ENGINE SIDE
AIR FLOW METER SIDE
AIR CLEANER SIDE
17882HOSE, AIR CLEANER, NO.2
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
17893RESONATOR, INTAKE AIR
22250METER ASSY, INTAKE AIR FLOW
22275GASKET, AIR FLOW METER
9011906525
main90119-06525
9011906764
main90119-06764
9011908891
main90119-08891
9012608020
main90126-08020
9017906185
main90179-06185
9017906195
main90179-06195
9017908153
main90179-08153
9038510012
main90385-10012
9046717011
main90467-17011
91632B0614
main91632-B0614
9611110750
main96111-10750
28 parts on this diagram · 4 diagrams in section
