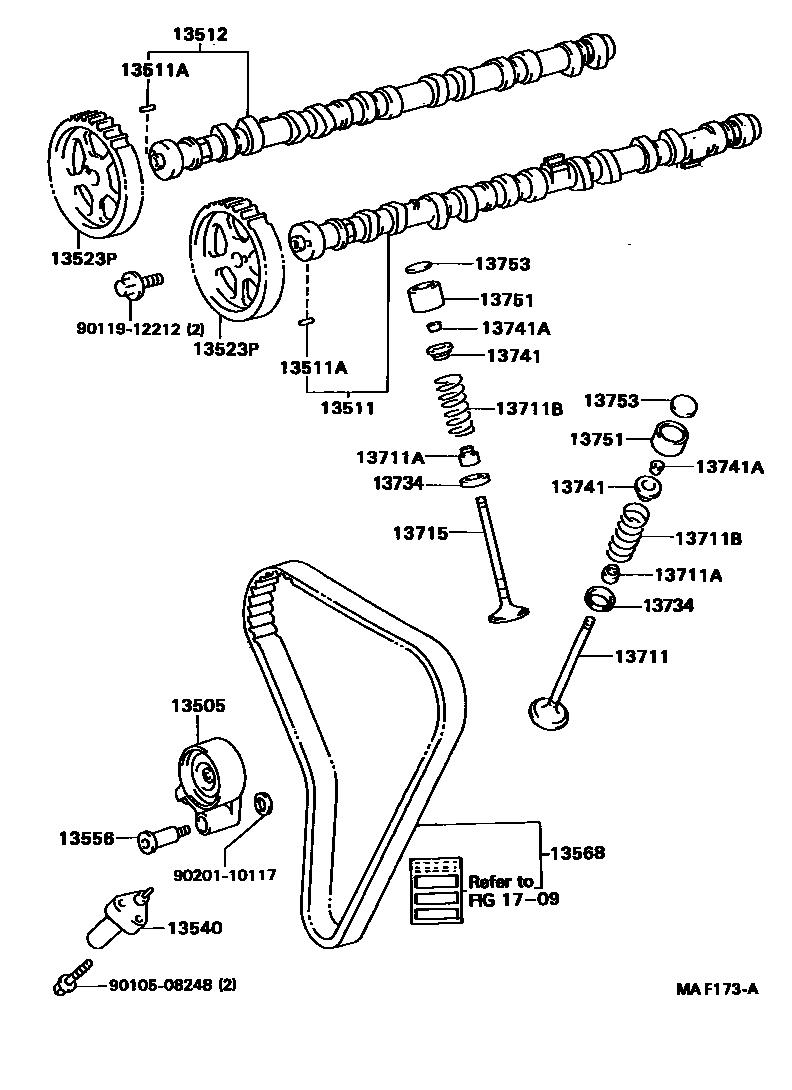

CAMSHAFT & VALVE
13505IDLER SUB-ASSY, TIMING BELT, NO.1
13511APIN, STRAIGHT(FOR CAMSHAFT KNOCK)
L=13.8,OD=5.0
13523PPULLEY, CAMSHAFT TIMING
LH,INTAKE SIDE
RH,EXHAUST SIDE
13556SHAFT, TIMING BELT IDLER
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
EXHAUST SIDE
INTAKE SIDE
13711BSPRING, COMPRESSION(FOR INNER)
13715VALVE, EXHAUST
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
13753SHIM, VALVE ADJUSTING
T=2.50
T=2.55
T=2.60
T=2.65
T=2.70
T=2.75
T=2.80
T=2.85
T=2.90
T=2.95
T=3.00
T=3.05
T=3.10
T=3.15
T=3.20
T=3.25
T=3.30
1709
9010508248
main90105-08248
9011912212
main90119-12212
9020110117
main90201-10117
21 parts on this diagram · 2 diagrams in section
