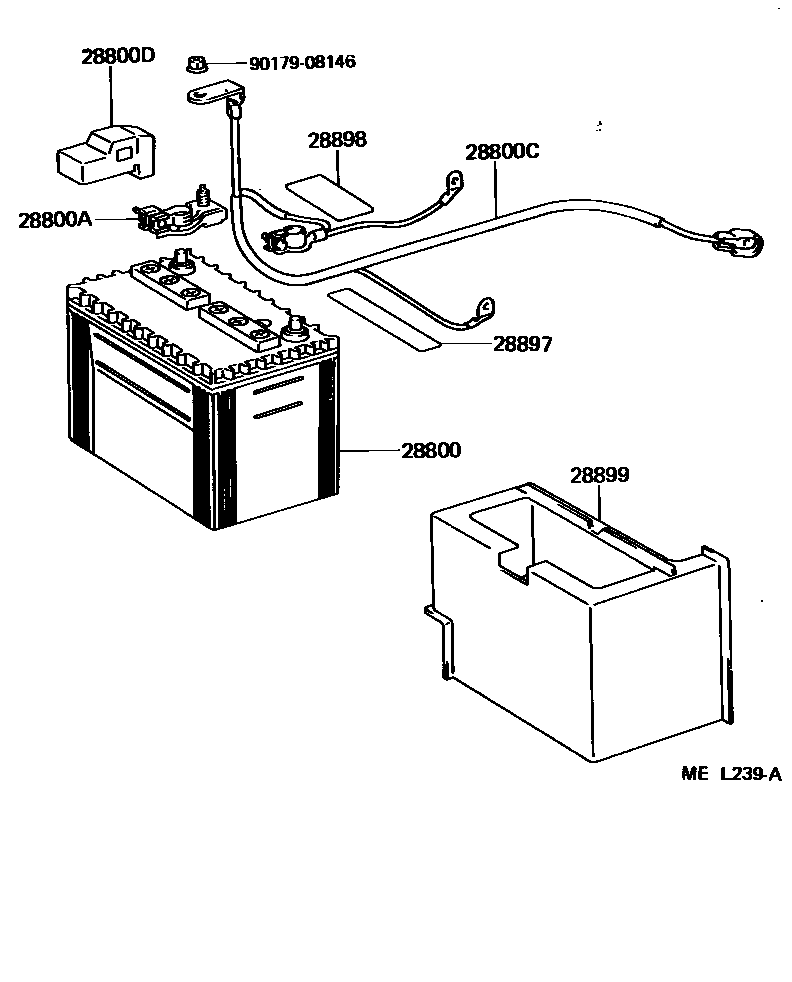

BATTERY & BATTERY CABLE

28800BATTERY

main28800-42130i7MG#..MA70198808-199305

75D31L

sub28800-42010

28800ATERMINAL, BATTERY POSITIVE

main90982-05030i7MG#..MA70198808-199305

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82122-24061i7MG#..MA70198808-198812

main82122-24210i7MG#..MA70198812-199006

sub82122-24211

main82122-24211i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA199006-199305

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-24010i7MG#..MA70198808-199305

28897PLATE, BATTERY CAUTION

main28897-38010i7MG#..MA70..CND198808-199305

28898PLATE, BATTERY

main28898-26010i7MG#..MA70..USA198808-199305

28899INSULATOR, BATTERY

main28899-42030i7MG#..MA70198808-199305

9017908146

main90179-08146

8 parts on this diagram · 1 diagram in section
