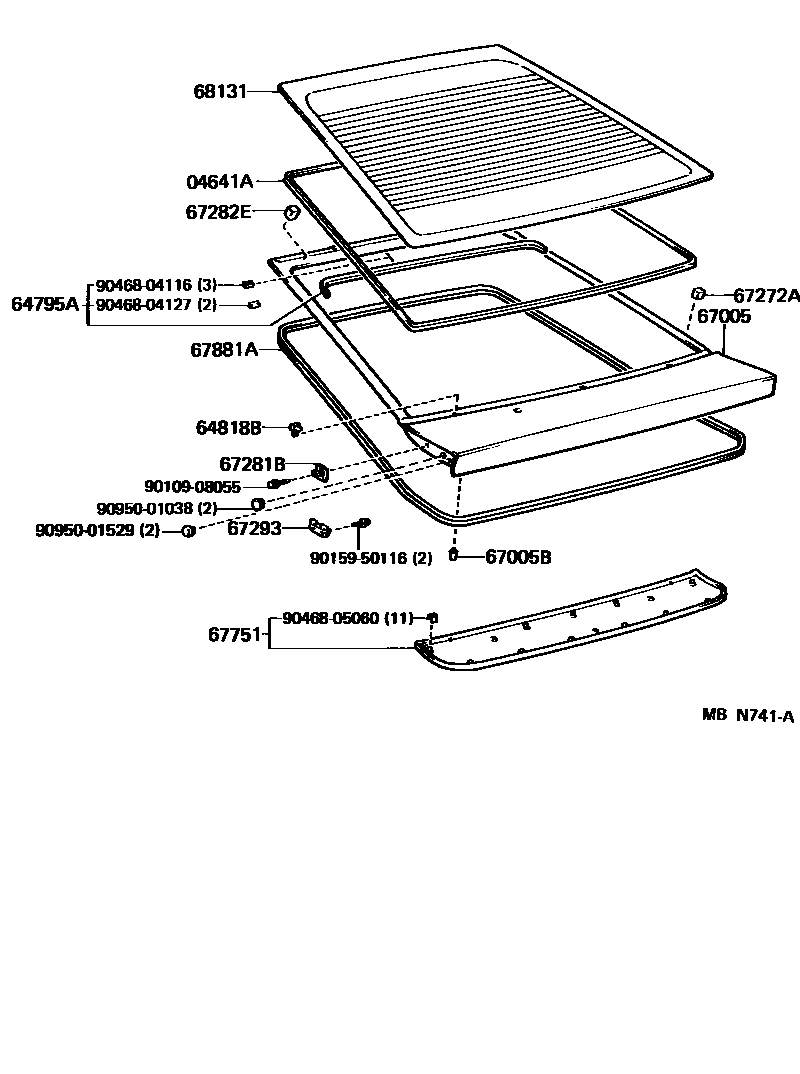

BACK DOOR PANEL & GLASS

04641ADAM KIT, BACK WINDOW GLASS ADHESIVE

main04562-30040iMA70198808-199305

64795ATRIM, BACK WINDOW OPENING

main64795-14020iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199305

64818BSPACER, BACK DOOR GLASS, NO.1

main64818-14010iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199004

sub64818-14011

main64818-14011iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA199004-199305

67005PANEL SUB-ASSY, BACK DOOR

main67005-14312iMA70..TWC198808-199305

main67005-14621iMA70..TWT198808-199305

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09047iMA70198808-199305

67272ACUSHION, BACK DOOR STOPPER, NO.2

main67272-14010iMA70198808-199305

67281BSTOPPER, BACK DOOR, LOWER

main67281-14040iMA70198808-199305

67282ECUSHION, BACK DOOR STOPPER, NO.3

main67282-14010iMA70198808-199305

67293CUSHION, BACK DOOR LOWER STOPPER

main67293-14030iMA70198808-199305

67751BOARD, BACK DOOR TRIM

main64781-14051-02iMA70..TWC198808-199008

MAROON,TRIM3#

main64781-14051-03iMA70..TWC198808-199008

MEDIUM GRAY,TRIM1#

main64781-14051-04iMA70..TWC198808-199305

DEEP BLUE,TRIM8#

main64781-14051-06iMA70..TWC198808-199108

BROWN,TRIM4#

main64781-14051-12iMA70..TWC199008-199305

DEEP RED,TRIM3#

main64781-14051-13iMA70..TWC199008-199305

SHADOW GRAY,TRIM1#

main64781-14061-02iMA70..TWT198808-199008

MAROON,TRIM3#

main64781-14061-03iMA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199008

MEDIUM GRAY,TRIM1#

main64781-14061-04iMA70..TWT198808-199305

DEEP BLUE,TRIM8#

main64781-14061-06iMA70..TWT..USA198808-199108

BROWN,TRIM4#

main64781-14061-12iMA70..TWT199008-199305

DEEP RED,TRIM3#

main64781-14061-13iMA70..TWT199008-199305

SHADOW GRAY,TRIM1#

67881AWEATHERSTRIP, BACK DOOR

main67881-14110iMA70198808-199305

68131GLASS, BACK DOOR

main68131-14161iMA70198808-199305

*EHTT,T=4.0

main68131-14201iMA70198808-199305

*EHTT,T=4.0,BRONZE,BRONZE

9010908055

main90109-08055

9015950116

main90159-50116

9046804116

main90468-04116

9046804127

main90468-04127

9046805060

main90468-05060

9095001038

main90950-01038

9095001529

main90950-01529

19 parts on this diagram · 1 diagram in section
