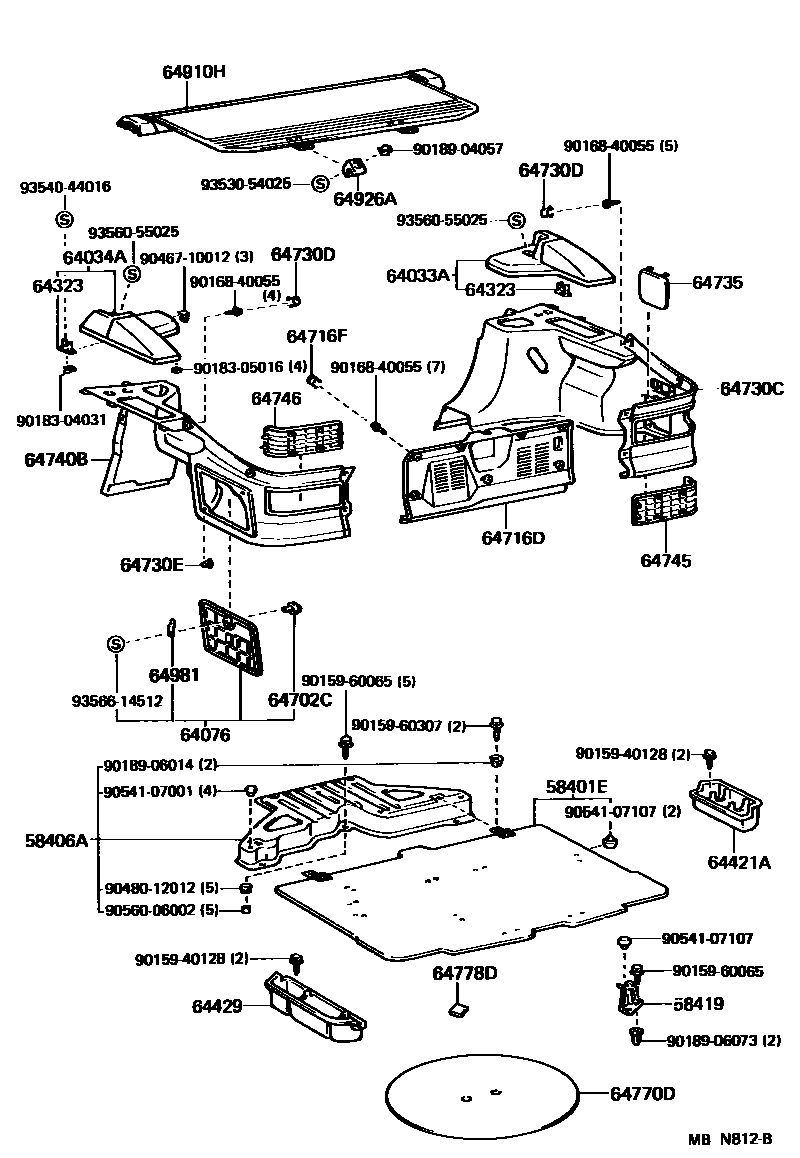

DECK BOARD & DECK TRIM COVER

58401EBOARD SUB-ASSY, DECK

main58401-14101iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199305

58406ABRACKET SUB-ASSY, DECK BOARD

main58406-14050iMA70198808-199305

58419BRACKET, DECK BOARD, NO.2

main58418-14050iMA70198808-199305

64033AGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-14071-02iMA70198808-199008

MAROON,TRIM3#

main64033-14071-03iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199008

MEDIUM GRAY,TRIM1#

main64033-14071-04iMA70198808-199305

DEEP BLUE,TRIM8#

main64033-14071-06iMA70..TWT198808-199108

BROWN,TRIM4#

main64033-14071-12iMA70199008-199305

DEEP RED,TRIM3#

main64033-14071-13iMA70199008-199305

SHADOW GRAY,TRIM1#

64034AGRILLE SUB-ASSY, REAR SPEAKER, LH

main64034-14061-02iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199008

MAROON,TRIM3#

main64034-14061-03iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199008

MEDIUM GRAY,TRIM1#

main64034-14061-04iMA70198808-199305

DEEP BLUE,TRIM8#

main64034-14061-06iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199108

BROWN,TRIM4#

main64034-14061-12iMA70199008-199305

DEEP RED,TRIM3#

main64034-14061-13iMA70199008-199305

SHADOW GRAY,TRIM1#

64076COVER, DECK TRIM SIDE JACK

main64076-14060-02iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199008

MAROON,TRIM3#

sub64076-14060

main64076-14060-03iMA70198808-199008

MEDIUM GRAY,TRIM1#

sub64076-14060

main64076-14060-04iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199305

DEEP BLUE,TRIM8#

sub64076-14060

main64076-14060-06iMA70..TWT198808-199108

BROWN,TRIM4#

sub64076-14060

main64076-14060-12iMA70199008-199305

DEEP RED,TRIM3#

sub64076-14060

main64076-14060-13iMA70199008-199305

SHADOW GRAY,TRIM1#

sub64076-14060

64323CLAMP, PACKAGE TRAY TRIM, NO.1

main64323-14030-02iMA70198808-199008

MAROON,TRIM3#

sub64323-14030

main64323-14030-03iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199008

MEDIAM GRAY,TRIM1#

sub64323-14030

main64323-14030-04iMA70198808-199305

DEEP BLUE,TRIM8#

sub64323-14030

main64323-14030-06iMA70198808-199108

BROWN,TRIM4#

sub64323-14030

main64323-14030-12iMA70199008-199305

DEEP RED,TRIM3#

sub64323-14030

main64323-14030-13iMA70199008-199305

SHADOW GRAY,TRIM1#

sub64323-14030

64421ATRAY, LUGGAGE COMPARTMENT

main64421-14010iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199305

64429TRAY, LUGGAGE COMPARTMENT SIDE

main64429-14010iMA70198808-199305

64702CKNOB, WASHER TANK COVER

main64982-16020-30iMA70199008-199305

SHADOW GRAY,TRIM1#

sub64982-16020

main64982-16020-39iMA70199008-199305

DEEP RED,TRIM3#

sub64982-16020

main64982-16020-44iMA70198808-199305

DEEP BLUE,TRIM8#

sub64982-16020

main64982-16020-50iMA70198808-199108

BROWN,TRIM4#

sub64982-16020

main64982-16020-52iMA70198808-199008

MAROON,TRIM3#

sub64982-16020

main64982-16020-53iMA70198808-199008

MEDIUM GRAY,TRIM1#

sub64982-16020

64716DCOVER, DECK TRIM, REAR

main64716-14140-02iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199008

MAROON,TRIM3#

main64716-14140-03iMA70198808-199008

MEDIUM GRAY,TRIM1#

main64716-14140-04iMA70198808-199305

DEEP BLUE,TRIM8#

main64716-14140-06iMA70198808-199108

BROWN,TRIM4#

main64716-14140-12iMA70199008-199305

DEEP RED,TRIM3#

main64716-14140-13iMA70199008-199305

SHADOW GRAY,TRIM1#

64716FPLUG, HOLE(FOR DECK TRIM REAR COVER)

main90950-01503-03iMA70199008-199305

SHADOW GRAY,TRIM1#

sub90950-01503

main90950-01503-04iMA70198808-199305

BLUE,TRIM8#

sub90950-01503

main90950-01503-12iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199008

MAROON,TRIM3#

sub90950-01503

main90950-01503-13iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199008

MEDIUM GRAY,TRIM1#

sub90950-01503

main90950-01503-32iMA70199008-199305

DEEP RED,TRIM3#

sub90950-01503

main90950-01503-36iMA70..TWT198808-199108

BROWN,TRIM4#

sub90950-01503

64730CBOARD, DECK TRIM SIDE, RH

main64731-14110-02iMA70..LB198808-199008

MAROON,TRIM3#

main64731-14110-03iMA70..LB198808-199008

MEDIUM GRAY,TRIM1#

main64731-14110-04iMA70..LB198808-199305

DEEP BLUE,TRIM8#

main64731-14110-06iMA70..LB198808-199108

BROWN,TRIM4#

main64731-14110-12iMA70..LB199008-199305

DEEP RED,TRIM3#

main64731-14110-13iMA70..LB199008-199305

SHADOW GRAY,TRIM1#

main64731-14120-02iMA70..SPR198808-199008

MAROON,TRIM3#

main64731-14120-03iMA70..SPR198808-199008

MEDIUM GRAY,TRIM1#

main64731-14120-04iMA70..SPR198808-199305

DEEP BLUE,TRIM8#

main64731-14120-06iMA70..SPR..USA198808-199108

BROWN,TRIM4#

main64731-14120-12iMA70..SPR199008-199305

DEEP RED,TRIM3#

main64731-14120-13iMA70..SPR199008-199305

SHADOW GRAY,TRIM1#

64730DPLUG, HOLE(FOR DECK TRIM SIDE BOARD)

main90950-01503-02iMA70198808-199008

RED,TRIM3#

sub90950-01503

main90950-01503-03iMA70198808-199305

SHADOW GRAY,TRIM1#

sub90950-01503

main90950-01503-04iMA70198808-199305

BLUE,TRIM8#

sub90950-01503

main90950-01503-12iMA70198808-199008

MAROON,TRIM3#

sub90950-01503

main90950-01503-13iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199008

MEDIUM GRAY,TRIM1#

sub90950-01503

main90950-01503-32iMA70199008-199305

DEEP RED,TRIM3#

sub90950-01503

main90950-01503-36iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199108

BROWN,TRIM4#

sub90950-01503

64730ECLIP(FOR DECK TRIM SIDE BOARD)

main90467-07053-03iMA70199008-199305

GRAY,TRIM1#

sub90467-07053

main90467-07053-12iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199008

MAROON,TRIM3#

sub90467-07053

main90467-07053-13iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199008

MEDIUM GRAY,TRIM1#

sub90467-07053

main90467-07053-14iMA70198808-199305

DEEP BLUE,TRIM8#

sub90467-07053

main90467-07053-16iMA70..USA198808-199108

BROWN,TRIM4#

sub90467-07053

main90467-07053-22iMA70199008-199305

DEEP RED,TRIM3#

sub90467-07053

64735COVER, DECK TRIM SIDE SERVICE HOLE

main64735-14020-02iMA70198808-199008

MAROON,TRIM3#

sub64735-14020

main64735-14020-03iMA70198808-199008

MEDIUM GRAY,TRIM1#

sub64735-14020

main64735-14020-04iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199305

DEEP BLUE,TRIM8#

sub64735-14020

main64735-14020-06iMA70..TWT198808-199108

BROWN,TRIM4#

sub64735-14020

main64735-14020-12iMA70199008-199305

DEEP RED,TRIM3#

sub64735-14020

main64735-14020-13iMA70199008-199305

SHADOW GRAY,TRIM1#

sub64735-14020

64740BBOARD, DECK TRIM SIDE, LH

main64732-14110-02iMA70..LB198808-199008

MAROON,TRIM3#

main64732-14110-03iMA70..LB..TWC;MA70..LB..TWT..USA198808-199008

MEDIUM GRAY,TRIM1#

main64732-14110-04iMA70..LB198808-199305

DEEP BLUE,TRIM8#

main64732-14110-06iMA70..LB198808-199108

BROWN,TRIM4#

main64732-14110-12iMA70..LB199008-199305

DEEP RED,TRIM3#

main64732-14110-13iMA70..LB199008-199305

SHADOW GRAY,TRIM1#

main64732-14120-02iMA70..SPR198808-199008

MAROON,TRIM3#

main64732-14120-03iMA70..SPR198808-199008

MEDIUM GRAY,TRIM1#

main64732-14120-04iMA70..SPR198808-199305

DEEP BLUE,TRIM8#

main64732-14120-06iMA70..SPR198808-199108

BROWN,TRIM4#

main64732-14120-12iMA70..SPR199008-199305

DEEP RED,TRIM3#

main64732-14120-13iMA70..SPR199008-199305

SHADOW GRAY,TRIM1#

64745COVER, REAR COMBINATION LAMP SERVICE, RH

main64745-14060-02iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199008

MAROON,TRIM3#

sub64745-14060

main64745-14060-03iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199008

MEDIUM GRAY,TRIM1#

sub64745-14060

main64745-14060-04iMA70198808-199305

DEEP BLUE,TRIM8#

sub64745-14060

main64745-14060-06iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199108

BROWN,TRIM4#

sub64745-14060

main64745-14060-12iMA70199008-199305

DEEP RED,TRIM3#

sub64745-14060

main64745-14060-13iMA70199008-199305

SHADOW GRAY,TRIM1#

sub64745-14060

64746COVER, REAR COMBINATION LAMP SERVICE, LH

main64746-14060-02iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199008

MAROON,TRIM3#

sub64746-14060

main64746-14060-03iMA70198808-199008

MEDIUM GRAY,TRIM1#

sub64746-14060

main64746-14060-04iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199305

DEEP BLUE,TRIM8#

sub64746-14060

main64746-14060-06iMA70..TWT198808-199108

BROWN,TRIM4#

sub64746-14060

main64746-14060-12iMA70199008-199305

DEEP RED,TRIM3#

sub64746-14060

main64746-14060-13iMA70199008-199305

SHADOW GRAY,TRIM1#

sub64746-14060

64770DCOVER ASSY, SPARE WHEEL

main64770-14080iMA70199108-199305

64778DPROTECTOR, SPARE WHEEL

main64778-14020iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199305

64910HRETRACTOR SUB-ASSY, TONNEAU COVER

main64901-14040-02iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199008

MAROON,TRIM3#

sub64901-14040

main64901-14040-03iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199008

MEDIUM GRAY,TRIM1#

sub64901-14040

main64901-14040-04iMA70198808-199305

DEEP BLUE,TRIM8#

sub64901-14040

main64901-14040-06iMA70..TWT198808-199108

BROWN,TRIM4#

sub64901-14040

main64901-14040-12iMA70199008-199305

DEEP RED,TRIM3#

sub64901-14040

main64901-14040-13iMA70199008-199305

SHADOW GRAY,TRIM1#

sub64901-14040

64926AHOOK, TONNEAU

main64926-14030-02iMA70198808-199008

MAROON,TRIM3#

sub64926-14030

main64926-14030-03iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199008

MEDIUM GRAY,TRIM1#

sub64926-14030

main64926-14030-04iMA70198808-199305

DEEP BLUE,TRIM8#

sub64926-14030

main64926-14030-06iMA70198808-199108

BROWN,TRIM4#

sub64926-14030

main64926-14030-12iMA70199008-199305

DEEP RED,TRIM3#

sub64926-14030

main64926-14030-13iMA70199008-199305

SHADOW GRAY,TRIM1#

sub64926-14030

64981STOPPER, WASHER TANK COVER

main64981-16021iMA70198808-199305

9015940128

main90159-40128

9015960065

main90159-60065

9015960307

main90159-60307

9016840055

main90168-40055

9018304031

main90183-04031

9018305016

main90183-05016

9018904057

main90189-04057

9018906014

main90189-06014

9018906073

main90189-06073

9046710012

main90467-10012

9048012012

main90480-12012

9054107001

main90541-07001

9054107107

main90541-07107

9056006002

main90560-06002

9353054025

main93530-54025

9354044016

main93540-44016

9356055025

main93560-55025

9356614512

main93566-14512

42 parts on this diagram · 1 diagram in section
