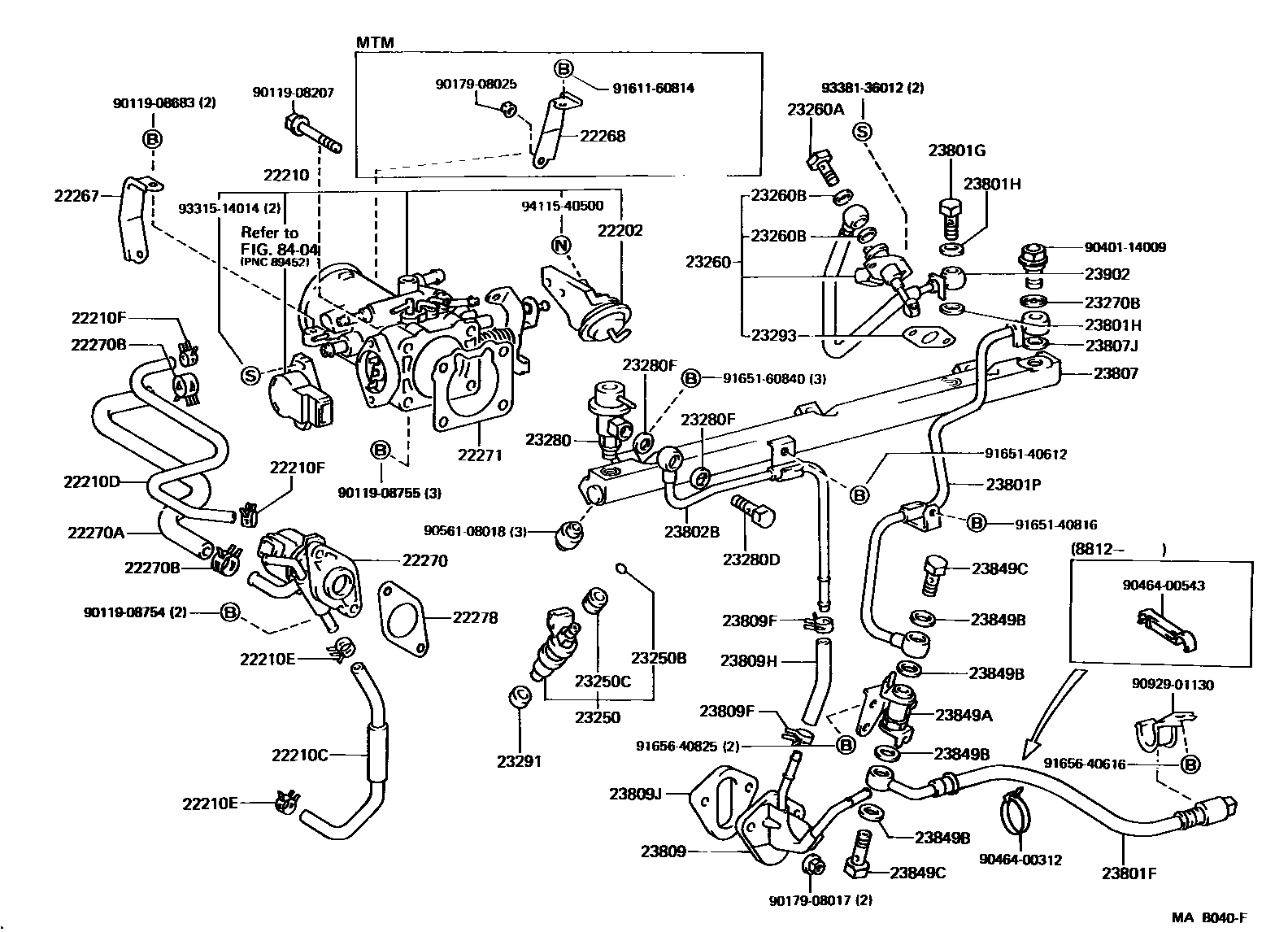

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

22202DASH POT SUB-ASSY

main22202-42200i7MGTE..MA70..4FC198808-199305

main22202-42260i7MGTE..MA70..5F198808-199305

main22202-42300i7MGE..MA70198808-199305

22210BODY ASSY, THROTTLE

main22210-42260i7MGTE..MA70..5F198808-199305

main22210-42270i7MGTE..MA70..4FC198808-199305

main22210-42300i7MGE..MA70..5F198808-199305

main22210-42310i7MGE..MA70..4FC198808-199305

22210CHOSE, WATER BY-PASS, NO.1

main16261-42010i7MG#..MA70198808-199305

22210DHOSE, WATER BY-PASS, NO.2

main16264-42020i7MGE..MA70198808-199305

main16264-42040i7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198808-199305

22210ECLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)

main96135-41300i7MG#..MA70198808-199305

sub96135-51300

22210FCLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)

main96135-41300i7MG#..MA70198808-199305

sub96135-51300

22267BRACKET, THROTTLE BODY

main22267-42010i7MGE..MA70198808-199305

22268BRACKET, THROTTLE BODY, NO.2

main22268-42010i7MGE..MA70..5F198808-199305

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-42010i7MGTE..MA70198808-199305

main22270-42030i7MGE..MA70198808-199305

22270AHOSE, AIR, NO.1(FOR IDLE SPEED CONTROL VALVE)

main17347-42010i7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198808-199305

main17347-42020i7MGE..MA70198808-199305

22270BCLIP(FOR AIR HOSE)

main96134-42300i7MG#..MA70198808-199305

22271GASKET, THROTTLE BODY

main22271-42010i7MGTE..MA70198808-198912

sub22271-42040

main22271-42020i7MGE..MA70198808-199305

main22271-42040i7MGTE..MA70198912-199305

22278GASKET, IDLE SPEED CONTROL VALVE

main22278-42010i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198912-199305

main22278-43011i7MG#..MA70198808-198912

sub22278-42010

23250INJECTOR ASSY, FUEL

main23209-42010i7MGTE..MA70198808-199305

main23209-70080i7MGE..MA70198808-199305

23250BRING, O(FOR FUEL INJECTOR)

main90301-07001i7MG#..MA70198808-199305

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005i7MG#..MA70198808-199305

23260INJECTOR ASSY, COLD START FUEL

main23260-49105i7MGTE..MA70198808-199008

sub23260-49106

main23260-49106i7MGTE..MA70199008-199101

sub23260-49126

main23260-49115i7MGE..MA70198808-199008

sub23260-49116

main23260-49116i7MGE..MA70199008-199305

main23260-49126i7MGTE..MA70199101-199305

23260ABOLT, UNION

main90401-08003i7MG#..MA70198903-199305

main90401-08006i7MG#..MA70198808-198903

sub90401-08003

23260BGASKET

main90430-08005i7MG#..MA70198808-199007

main90430-08012i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA199007-199305

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-42010i7MGTE..MA70198808-199305

23270BGASKET(FOR PULSATION DAMPER HOSE)

main90430-17002i7MG#..MA70198808-199007

main90430-17006i7MG#..MA70199007-199305

23280REGULATOR ASSY, FUEL PRESSURE

main23280-42020i7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198808-199305

main23280-42030i7MGE..MA70198808-199305

23280DBOLT, UNION(FOR FUEL PIPE OR HOSE SET)

main90401-10011i7MG#..MA70198903-199305

main90401-10034i7MG#..MA70198808-198903

sub90401-10011

23280FGASKET(FOR FUEL PRESSURE REGULATOR)

main90430-10012i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA199007-199305

main90430-10204i7MG#..MA70198808-199007

23291INSULATOR, INJECTOR VIBRATION

main23291-41010i7MG#..MA70198808-199305

23293GASKET, COLD START INJECTOR

main23293-42010i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198912-199305

main23293-74010i7MG#..MA70198808-198912

sub23293-42010

23801FHOSE, FUEL, NO.1

main90923-01337i7MG#..MA70198808-198901

main90923-01361i7MG#..MA70198901-199305

23801GBOLT, UNION(FOR FUEL PIPE)

main90401-12021i7MG#..MA70198808-198903

sub90401-12097

main90401-12097i7MG#..MA70198903-199305

23801HGASKET(FOR FUEL PIPE)

main90430-12005i7MG#..MA70198808-199007

main90430-12026i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA199007-199305

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-42010i7MG#..MA70198808-198901

main23801-42030i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198901-199305

23802BPIPE SUB-ASSY, FUEL, NO.2

main23803-42010i7MG#..MA70198808-199004

sub23803-42011

main23803-42011i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA199004-199305

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-42020i7MG#..MA70198808-199305

23807JGASKET, PIPE FUEL DELIVARY INLET

main90430-14002i7MG#..MA70198808-199007

main90430-14007i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA199007-199305

23809SUPPORT SUB-ASSY, FUEL PIPE

main23849-41050i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198808-199305

23809FCLIP(FOR FUEL PIPE SUPPORT)

main96135-41300i7MG#..MA70198808-199305

sub96135-51300

23809HHOSE, FUEL PIPE SUPPORT TO REGULATOR

main95336-08020i7MG#..MA70198808-199305

23809JINSULATOR, FUEL PIPE SUPPORT

main90923-06007i7MG#..MA70198808-198912

sub90923-06012

main90923-06012i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198912-199305

23849ASUPPORT, FUEL PIPE

main23849-42010i7MG#..MA70198808-198901

main23849-42020i7MG#..MA70198901-199305

23849BGASKET(FOR FUEL PIPE SUPPORT)

main90430-12005i7MG#..MA70198808-199108

main90430-12005i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA199108-199305

HOSE SIDE

main90430-12026i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA199108-199305

PIPE SIDE

23849CBOLT, UNION(FOR FUEL PIPE SUPPORT)

main90401-12097i7MG#..MA70198808-199305

23902TUBE SUB-ASSY, FUEL

main23902-42010i7MGTE..MA70198808-199305

main23902-42020i7MGE..MA70198808-199305

8404

9011908207

main90119-08207

9011908683

main90119-08683

9011908754

main90119-08754

9011908755

main90119-08755

9017908017

main90179-08017

9017908025

main90179-08025

9040114009

main90401-14009

9046400312

main90464-00312

9046400543

main90464-00543

9056108018

main90561-08018

9092901130

main90929-01130

9161160814

main91611-60814

9165140612

main91651-40612

9165140816

main91651-40816

9165160840

main91651-60840

9165640616

main91656-40616

9165640825

main91656-40825

9331514014

main93315-14014

9338136012

main93381-36012

9411540500

main94115-40500

62 parts on this diagram · 4 diagrams in section
