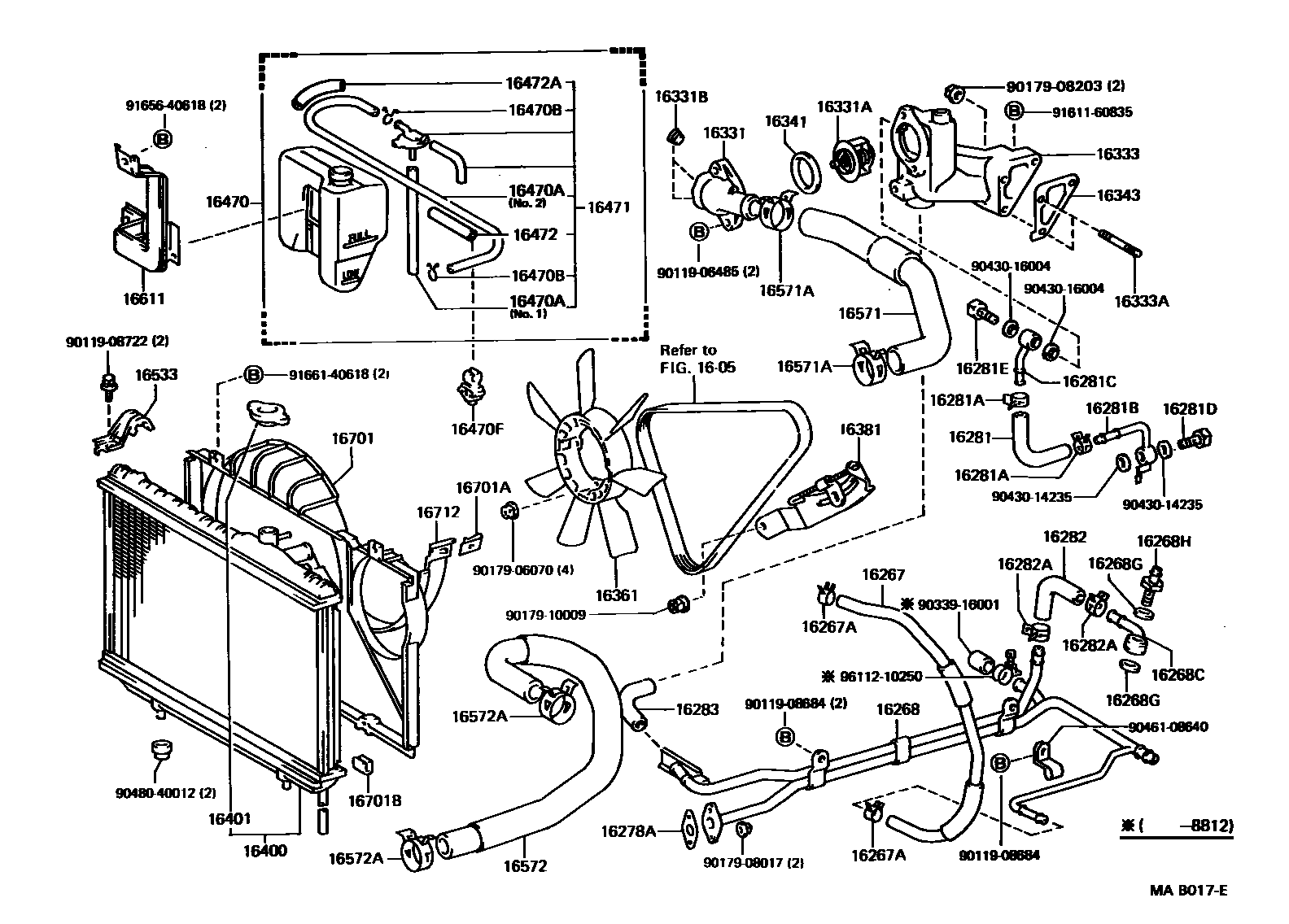

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1

1605

16267HOSE, WATER BY-PASS, NO.3

main16267-42010i7MGTE..MA70198808-199305

main16267-42020i7MGE..MA70198808-199305

16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

main96135-41300i7MG#..MA70198808-199305

sub96135-51300

16268PIPE, WATER BY-PASS, NO.1

main16268-42040i7MG#..MA70198808-198910

sub16268-42041

main16268-42041i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198910-199305

16268CUNION, WATER BY-PASS PIPE

main90405-17005i7MG#..MA70198808-199104

main90405-17006i7MG#..MA70199104-199305

16268GGASKET(FOR WATER BY-PASS PIPE)

main90430-22006i7MG#..MA70198808-198912

sub90430-22008

main90430-22008i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198912-199305

16268HBOLT, UNION(FOR WATER BY-PASS PIPE)

main90401-22004i7MG#..MA70198808-199305

16278AGASKET, WATER BY-PASS

main16347-42010i7MG#..MA70198912-199305

main16347-45010i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198808-198912

sub16347-42010

16281HOSE, WATER BY-PASS, NO.4

main16281-42020i7MGE..MA70198808-199305

16281ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)

main90467-15004i7MGE..MA70198808-199305

16281BUNION, WATER BY-PASS PIPE, NO.2

main90405-10028i7MGE..MA70198808-199104

main90405-10031i7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198808-199104

main90405-10035i7MGE..MA70199104-199305

main90405-10037i7MGTE..MA70199104-199305

16281CUNION, WATER BY-PASS PIPE, NO.3

main90405-10029i7MGE..MA70198808-199104

main90405-10036i7MGE..MA70199104-199305

16281DBOLT, UNION(FOR WATER BY-PASS PIPE UNION NO.2)

main90401-14008i7MGTE..MA70198808-199305

sub90401-14091

main90401-14011i7MGE..MA70198808-198810

sub90401-14008

16281EBOLT, UNION(FOR WATER BY-PASS PIPE UNION NO.3)

main90401-16011i7MGE..MA70198808-199305

sub90401-16019

16282HOSE, WATER BY-PASS, NO.5

main16282-42010i7MG#..MA70198808-199305

16282ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)

main90467-22003i7MGE..MA70198808-199305

sub90467-21010

16283HOSE, WATER BY-PASS, NO.6

main16283-42010i7MG#..MA70198808-199305

16331OUTLET, WATER

main16331-42021i7MGE..MA70198808-199305

main16331-42030i7MGTE..MA70198808-199305

16331ATHERMOSTAT

main90916-03078i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198808-199305

*WAX 88-100

16331BPLUG(FOR WATER OUTLET)

main90344-53011i7MGE..MA70198808-199305

16333HOUSING, WATER OUTLET

main16333-42030i7MGE..MA70198808-199305

main16333-42040i7MGTE..MA70198808-199305

16333ABOLT, STUD(FOR WATER OUTLET HOUSING)

main90116-08243i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198808-199305

16341GASKET, WATER OUTLET

main16341-35010i7MG#..MA70198808-199305

16343GASKET, WATER OUTLET HOUSING

main16343-42010i7MG#..MA70198808-198912

sub16343-42020

main16343-42020i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198912-199305

16361FAN

main16361-41090i7MGE..MA70198808-199305

main16361-42020i7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198808-199305

16381BAR, FAN BELT ADJUSTING

main16381-42011i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198808-199305

16400RADIATOR ASSY

main16400-42121i7MGE..MA70..4FC198808-199305

main16400-42130i7MG#..MA70..5F198808-199305

sub16400-42120

main16400-42141i7MGTE..MA70..4FC198808-198908

main16400-42230i7MGTE..MA70..5F198908-199305

sub16400-42240

main16400-42240i7MGTE..MA70..4FC198908-199305

16401CAP SUB-ASSY, RADIATOR

main16401-63010i7MG#..MA70198808-199305

main16401-72090i7MGTE..MA70198908-199305

sub16401-20353

16470TANK ASSY, RADIATOR RESERVE

main16470-42032i7MGE..MA70198808-199305

sub16470-42050

main16470-42050i7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198808-199305

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90099-33534i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198808-199305

L=1000,NO.1

main90445-12078i7MGE..MA70198808-199305

L=600,NO.2

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i7MG#..MA70198808-199305

16470FCLAMP, RADIATOR RESERVE TANK HOSE

main90929-01134i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198808-199305

16471CAP SUB-ASSY, RESERVE TANK

main16405-42010i7MGE..MA70198808-199305

main16405-42020i7MGTE..MA70198808-199305

16472HOSE, BREATHER

main85338-71030i7MG#..MA70198808-199305

16472APROTECTOR, HOSE

main85338-70070i7MG#..MA70198808-199305

16533SUPPORT, RADIATOR, UPPER

main16505-42010i7MG#..MA70198808-199305

16571HOSE, RADIATOR, INLET

main16571-42010i7MG#..MA70198808-199305

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-37001i7MG#..MA70198808-199008

sub90467-37003

main90467-37002i7MG#..MA70199008-199305

sub90467-37005

16572HOSE, RADIATOR, OUTLET

main16572-42010i7MGTE..MA70198808-199305

main16572-42020i7MGE..MA70198808-199305

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-37002i7MG#..MA70198808-199305

sub90467-37005

16611BRACKET, RADIATOR RESERVE TANK

main16402-42010i7MG#..MA70198808-199305

16701SHROUD SUB-ASSY, FAN

main16711-42060i7MG#..MA70198808-199305

16701ACLIP(FOR FAN SHROUD)

main90468-06013i7MG#..MA70198808-199305

16701BCUSHION, FAN SHROUD

main90541-11002i7MG#..MA70198808-199305

16712SHROUD, FAN, NO.2

main16702-42010i7MG#..MA70198808-199305

9011906485

main90119-06485

9011908684

main90119-08684

9011908722

main90119-08722

9017906070

main90179-06070

9017908017

main90179-08017

9017908203

main90179-08203

9017910009

main90179-10009

9033916001

main90339-16001

9043014235

main90430-14235

9043016004

main90430-16004

9046108640

main90461-08640

9048040012

main90480-40012

9161160835

main91611-60835

9165640618

main91656-40618

9166140618

main91661-40618

9611210250

main96112-10250

61 parts on this diagram · 3 diagrams in section
