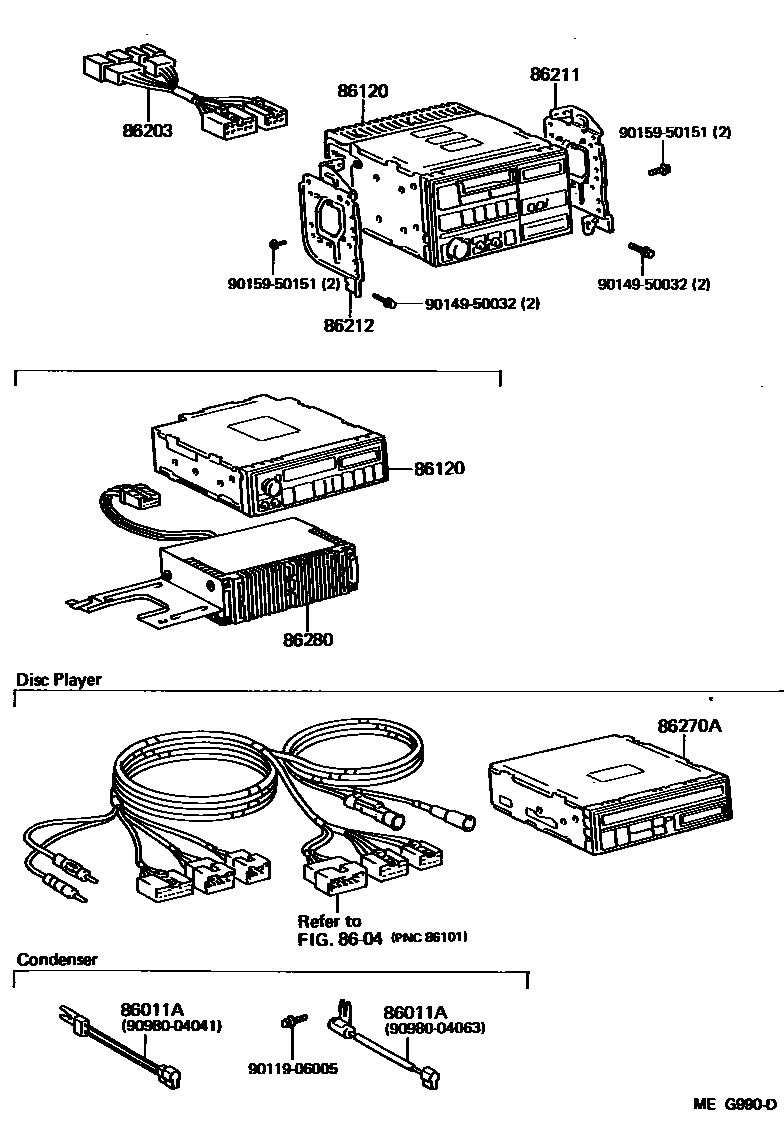

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86011ACONDENSER, RADIO SETTING

main90980-04023iMA70198601-198705

DEFOGGER

sub90980-04043

main90980-04041iMA70198601-198808

IGNITION COIL

main90980-04043iMA70198705-198808

DEFOGGER

8604

86120RECEIVER ASSY, RADIO

main86120-14690iMA70198601-198608

AM MPX/FM MPX,W/CASSETTE & *AF

main86120-14691iMA70198608-198708

AM MPX/FM MPX,W/CASSETTE & *AF

sub86120-14692

main86120-14692iMA70198708-198808

AM MPX/FM MPX,W/CASSETTE & *AF

main86120-14700iMA70..USA198608-198708

AM/FM MPX,W/CASSETTE & *AF

main86120-16380iMA70..TWC198608-198708

AM MPX/FM MPX,W/CASSETTE

main86120-16381iMA70..TWC198708-198808

AM MPX/FM MPX,W/CASSETTE

main86120-20320iMA70198601-198608

AM MPX/FM MPX

sub86120-16370

sub86203-20180

main86120-20630iMA70..USA198708-198808

*36,*AF,1DIN SIZE

main86120-20670iMA70..USA198708-198808

*36,*AF,2DIN SIZE

86203WIRE, RADIO

main86203-16060iMA70..USA198608-198808

AM/FM MPX,W/CASSETTE & *AF

86211BRACKET, RADIO, NO.1

main86211-14220iMA70198601-198808

sub86211-14221

86212BRACKET, RADIO, NO.2

main86212-14190iMA70198601-198808

sub86212-14191

86270ADISC PLAYER ASSY

main86270-20010iMA70..USA198708-198806

sub86270-20011

main86270-20011iMA70..USA198806-198808

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-14220iMA70..USA198708-198808

9011906005

main90119-06005

9014950032

main90149-50032

9015950151

main90159-50151

9098004041

main90980-04041

9098004063

main90980-04063

13 parts on this diagram · 2 diagrams in section
