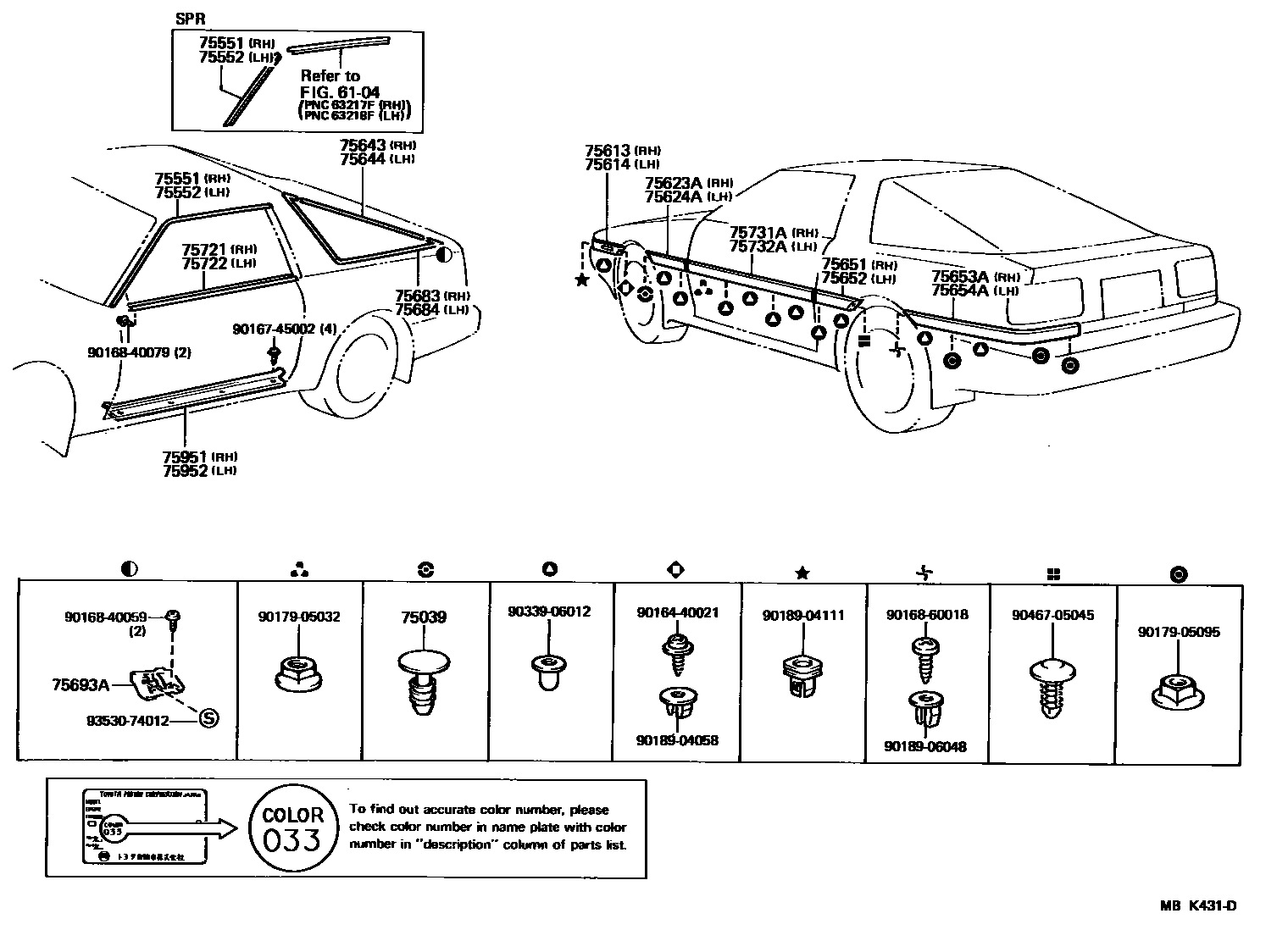

SIDE MOULDING
6104
75039CLIP SUB-ASSY, OUTSIDE MOULDING
sub90467-05045
75551MOULDING, ROOF DRIP SIDE FINISH, RH
75552MOULDING, ROOF DRIP SIDE FINISH, LH
75613MOULDING, FRONT FENDER, OUTSIDE RH
MAROON-M,MAROON METALLIC,3H1 ,3H2
GRAY-M,GRAY METALLIC,040 ,042 ,204 ,3E5 ,4H1
GRAY-M,GRAY METALLIC,920 ,27A ,167
BLUE-M,BLUE METALLIC,8D4 ,28A
BLUE-M,BLUE METALLIC,8D8 ,8E3 ,24D ,21C ,8C7
75614MOULDING, FRONT FENDER, OUTSIDE LH
MAROON-M,MAROON METALLIC,3H1 ,3H2
GRAY-M,GRAY METALLIC,040 ,042 ,204 ,3E5 ,4H1
GRAY-M,GRAY METALLIC,920 ,27A ,167
BLUE-M,BLUE METALLIC,8D4 ,28A
BLUE-M,BLUE METALLIC,8D8 ,8E3 ,24D ,21C ,8C7
75623AMOULDING, FRONT FENDER, OUTSIDE REAR RH
MAROON-M,MAROON METALLIC,3H1 ,3H2
GRAY-M,GRAY METALLIC,920 ,27A ,167
GRAY-M,GRAY METALLIC,040 ,042 ,204 ,3E5 ,4H1
BLUE-M,BLUE METALLIC,8D4 ,28A
BLUE-M,BLUE METALLIC,8D8 ,8E3 ,24D ,21C ,8C7
75624AMOULDING, FRONT FENDER, OUTSIDE REAR LH
MAROON-M,MAROON METALLIC,3H1 ,3H2
GRAY-M,GRAY METALLIC,040 ,042 ,204 ,3E5 ,4H1
GRAY-M,GRAY METALLIC,920 ,27A ,167
BLUE-M,BLUE METALLIC,8D4 ,28A
BLUE-M,BLUE METALLIC,8D8 ,8E3 ,24D ,21C ,8C7
75643MOULDING, QUARTER WINDOW, OUTSIDE UPPER RH
75644MOULDING, QUARTER WINDOW, OUTSIDE UPPER LH
75651MOULDING, QUARTER, OUTSIDE RH
MAROON-M,MAROON METALLIC,3H1 ,3H2
GRAY-M,GRAY METALLIC,040 ,042 ,204 ,3E5 ,4H1
GRAY-M,GRAY METALLIC,920 ,27A ,167
BLUE-M,BLUE METALLIC,8D4 ,28A
BLUE-M,BLUE METALLIC,8D8 ,8E3 ,24D ,21C ,8C7
75652MOULDING, QUARTER, OUTSIDE LH
MAROON-M,MAROON METALLIC,3H1 ,3H2
GRAY-M,GRAY METALLIC,920 ,27A ,167
GRAY-M,GRAY METALLIC,040 ,042 ,204 ,3E5 ,4H1
BLUE-M,BLUE METALLIC,8D4 ,28A
BLUE-M,BLUE METALLIC,8D8 ,8E3 ,24D ,21C ,8C7
75653AMOULDING, QUARTER, OUTSIDE REAR RH
MAROON-M,MAROON METALLIC,3H1 ,3H2
GRAY-M,GRAY METALLIC,040 ,042 ,204 ,3E5 ,4H1
GRAY-M,GRAY METALLIC,920 ,27A ,167
BLUE-M,BLUE METALLIC,8D4 ,28A
BLUE-M,BLUE METALLIC,8D8 ,8E3 ,24D ,21C ,8C7
75654AMOULDING, QUARTER, OUTSIDE REAR LH
MAROON-M,MAROON METALLIC,3H1 ,3H2
GRAY-M,GRAY METALLIC,040 ,042 ,204 ,3E5 ,4H1
GRAY-M,GRAY METALLIC,920 ,27A ,167
BLUE-M,BLUE METALLIC,8D4 ,28A
BLUE-M,BLUE METALLIC,8D8 ,8E3 ,24D ,21C ,8C7
75683MOULDING, QUARTER BELT, REAR RH
75684MOULDING, QUARTER BELT, REAR LH
75693ARETAINER, QUARTER BELT MOULDING
RH
LH
75721MOULDING, FRONT DOOR BELT, RH
75722MOULDING, FRONT DOOR BELT, LH
75731AMOULDING, FRONT DOOR, OUTSIDE RH
MAROON-M,MAROON METALLIC,3H1 ,3H2
GRAY-M,GRAY METALLIC,040 ,042 ,204 ,167
GRAY-M,GRAY METALLIC,4H1 ,920 ,27A ,3E5
BLUE-M,BLUE METALLIC,8D4 ,28A
BLUE-M,BLUE METALLIC,8D8 ,8E3 ,24D ,21C ,8C7
75732AMOULDING, FRONT DOOR, OUTSIDE LH
MAROON-M,MAROON METALLIC,3H1 ,3H2
GRAY-M,GRAY METALLIC,040 ,042 ,204 ,167
GRAY-M,GRAY METALLIC,4H1 ,920 ,27A ,3E5
BLUE-M,BLUE METALLIC,8D4 ,28A
BLUE-M,BLUE METALLIC,8D8 ,8E3 ,24D ,21C ,8C7
75951PLATE, FRONT DOOR SCUFF, OUTSIDE RH
75952PLATE, FRONT DOOR SCUFF, OUTSIDE LH
9016440021
main90164-40021
9016745002
main90167-45002
9016840059
main90168-40059
9016840079
main90168-40079
9016860018
main90168-60018
9017905032
main90179-05032
9017905095
main90179-05095
9018904058
main90189-04058
9018904111
main90189-04111
9018906048
main90189-06048
9033906012
main90339-06012
9046705045
main90467-05045
9353074012
main93530-74012
36 parts on this diagram · 1 diagram in section
