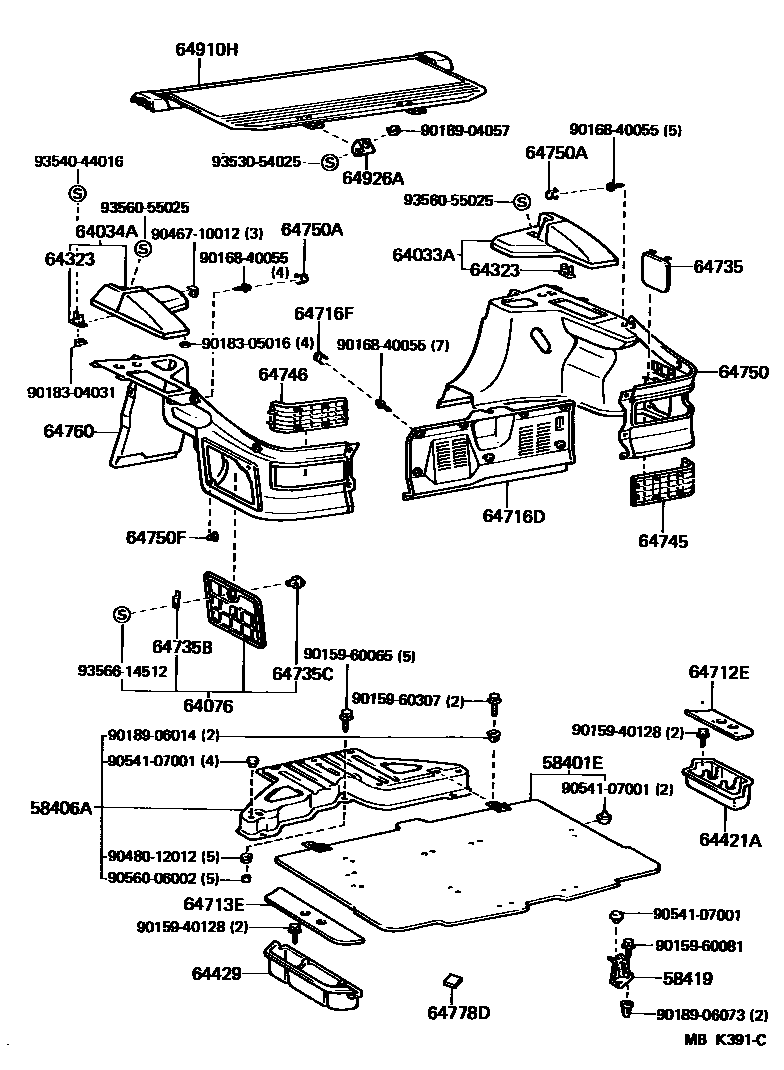

DECK BOARD & DECK TRIM COVER
58401EBOARD SUB-ASSY, DECK
58406ABRACKET SUB-ASSY, DECK BOARD
58419BRACKET, DECK BOARD, NO.2
64033AGRILLE SUB-ASSY, REAR SPEAKER, RH
MAROON,MAROON,TRIM3#
GRAY,MEDIUM GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
64034AGRILLE SUB-ASSY, REAR SPEAKER, LH
MAROON,MAROON,TRIM3#
GRAY,MEDIUM GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
64076COVER, DECK TRIM SIDE JACK
64323CLAMP, PACKAGE TRAY TRIM, NO.1
64421ATRAY, LUGGAGE COMPARTMENT
64429TRAY, LUGGAGE COMPARTMENT SIDE
64712ECOVER, LUGGAGE COMPARTMENT TRIM, RH
64713ECOVER, LUGGAGE COMPARTMENT TRIM, LH
64716DCOVER, DECK TRIM, REAR
MAROON,MAROON,TRIM3#
GRAY,MEDIUM GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
64716FPLUG, HOLE(FOR DECK TRIM REAR COVER)
64735COVER, DECK TRIM SIDE SERVICE HOLE
64735BSTOPPER, DECK TRIM SIDE SERVICE HOLE COVER
64735CKNOB, DECK TRIM SIDE SERVICE HOLE COVER
64745COVER, REAR COMBINATION LAMP SERVICE, RH
64746COVER, REAR COMBINATION LAMP SERVICE, LH
64750PANEL ASSY, DECK SIDE TRIM, RH
MAROON,MAROON,TRIM3#
GRAY,MEDIUM GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
MAROON,MAROON,TRIM3#
GRAY,MEDIUM GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
64750APLUG, HOLE(FOR DECK SIDE TRIM PANEL)
64750FCLIP(FOR DECK SIDE TRIM PANEL)
64760PANEL ASSY, DECK SIDE TRIM, LH
MAROON,MAROON,TRIM3#
GRAY,MEDIUM GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
MAROON,MAROON,TRIM3#
GRAY,MEDIUM GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
64778DPROTECTOR, SPARE WHEEL
64910HRETRACTOR SUB-ASSY, TONNEAU COVER
64926AHOOK, TONNEAU
9015940128
main90159-40128
9015960065
main90159-60065
9015960081
main90159-60081
9015960307
main90159-60307
9016840055
main90168-40055
9018304031
main90183-04031
9018305016
main90183-05016
9018904057
main90189-04057
9018906014
main90189-06014
9018906073
main90189-06073
9046710012
main90467-10012
9048012012
main90480-12012
9054107001
main90541-07001
9056006002
main90560-06002
9353054025
main93530-54025
9354044016
main93540-44016
9356055025
main93560-55025
9356614512
main93566-14512
43 parts on this diagram · 1 diagram in section
