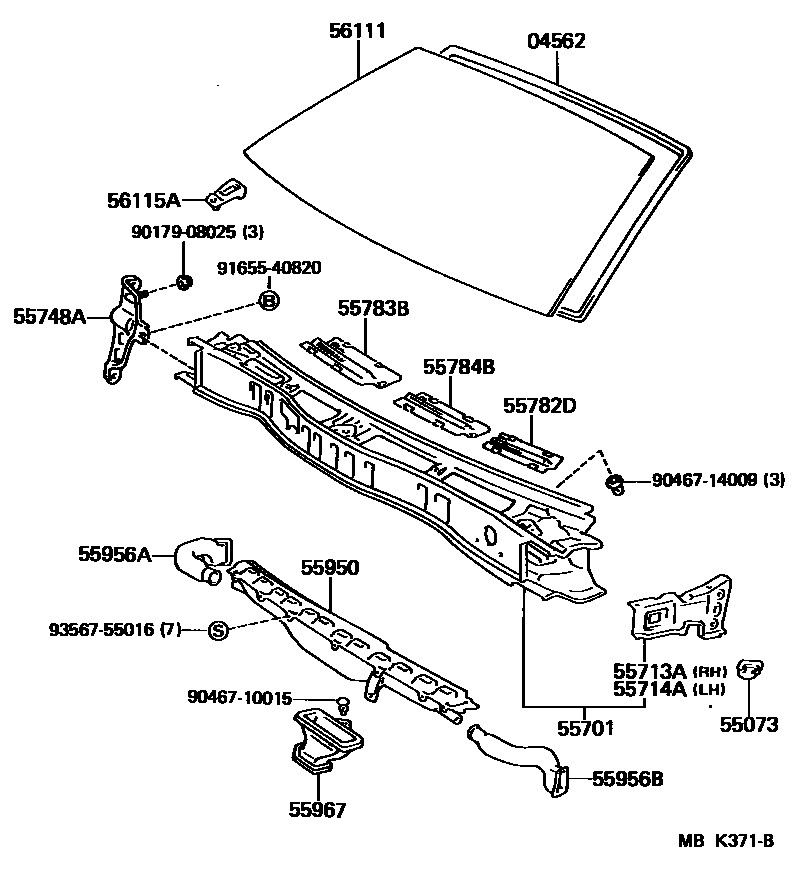

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-30040iMA70198601-198808

55073NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT

main55073-20020iMA70198601-198808

55701PANEL SUB-ASSY, COWL

main55700-14780iMA70198601-198808

55713APANEL, COWL TOP SIDE, RH

main55713-14100iMA70198601-198808

55714APANEL, COWL TOP SIDE, LH

main55714-14100iMA70198601-198808

55748ABRACE, COWL TOP INNER TO PILLAR

main55748-14050iMA70198601-198808

55782DLOUVER, COWL TOP VENTILATOR, LH

main55781-14160iMA70198601-198808

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-14120iMA70198601-198808

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-14120iMA70198601-198808

55950NOZZLE ASSY, DEFROSTER

main55951-14180iMA70198601-198808

sub55951-14181

55956ADUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-14040iMA70198601-198808

55956BDUCT, SIDE DEFROSTER NOZZLE, NO.2

main55972-14050iMA70198601-198808

55967NOZZLE, DEFROSTER, LOWER

main55967-14020iMA70198601-198808

56111GLASS, WINDSHIELD

main56111-14450iMA70198601-198608

*TL,T=5.3,W/SUN SHADE

sub56111-14451

main56111-14451iMA70198608-198808

*TL,T=5.3,*TL,T=5.3,W/SUN SHADE

main56111-14480iMA70198601-198608

*TL,T=5.3,BRONZE

sub56111-14481

main56111-14481iMA70198608-198808

*TL,T=5.3,BRONZE,*TL,T=5.3,BRONZE

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-14010iMA70198601-198808

9017908025

main90179-08025

9046710015

main90467-10015

9046714009

main90467-14009

9165540820

main91655-40820

9356755016

main93567-55016

20 parts on this diagram · 1 diagram in section
