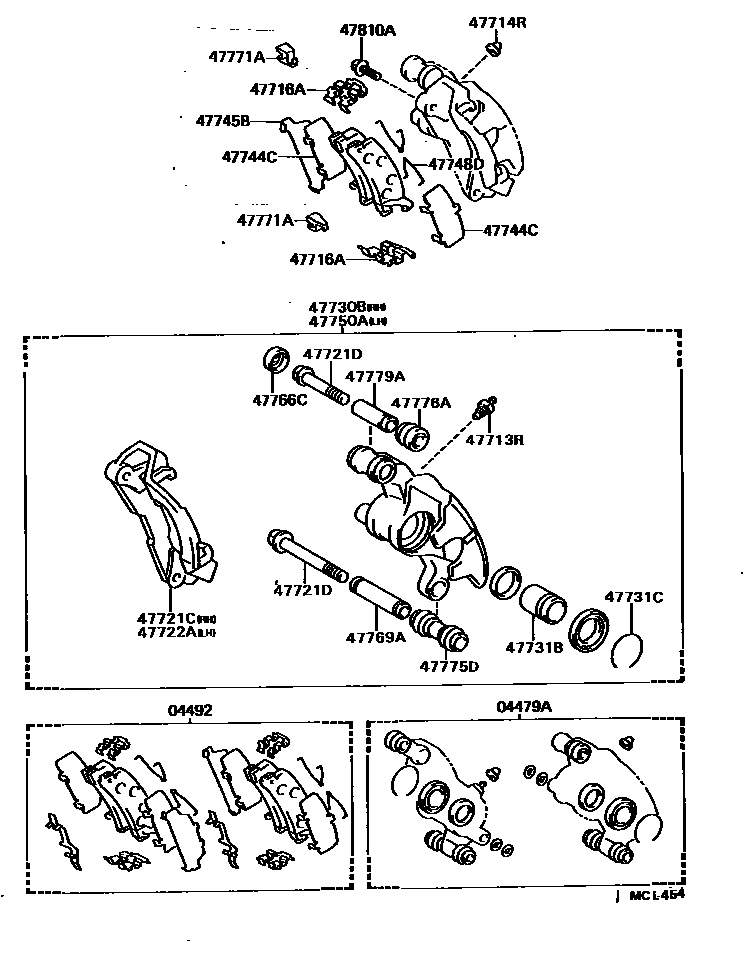

REAR DISC BRAKE CALIPER & DUST COVER

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-14110i198601-198808

04492PAD KIT, DISC BRAKE, REAR

main04492-14090i198601-198706

sub04466-22110

main04492-14100i198706-198808

sub04466-22110

47713RPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010i198601-198808

47714RCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010i198601-198808

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-14140i198601-198808

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-14130i198601-198808

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-08117i198601-198808

*8-1.25PX65-15

main90119-08431i198601-198808

*8-1.25PX62-20

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47721-14130i198601-198808

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-14190i198601-198808

47731BPISTON, REAR DISC BRAKE

main47731-14100i198601-198808

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90522-49001i198601-198808

47744CSHIM, ANTI-SQUEAL, NO.1(FOR REAR DISC BRAKE)

main47744-14110i198601-198706

main47744-22091i198706-198808

47745BSHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE)

main47745-14040i198601-198706

main47745-22051i198706-198808

47748DSPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)

main47748-14070i198601-198808

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-14210i198601-198808

47766CCAP, CYLINDER SLIDE PIN

main47766-17010i198601-198808

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-28010i198601-198808

47771APLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)

main47771-22040i198601-198808

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-14010i198601-198808

47776ABOOT, MAIN PIN(FOR REAR DISC BRAKE)

main47776-14030i198601-198808

47779ABUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47779-14010i198601-198808

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-10402i198601-198808

22 parts on this diagram · 2 diagrams in section
