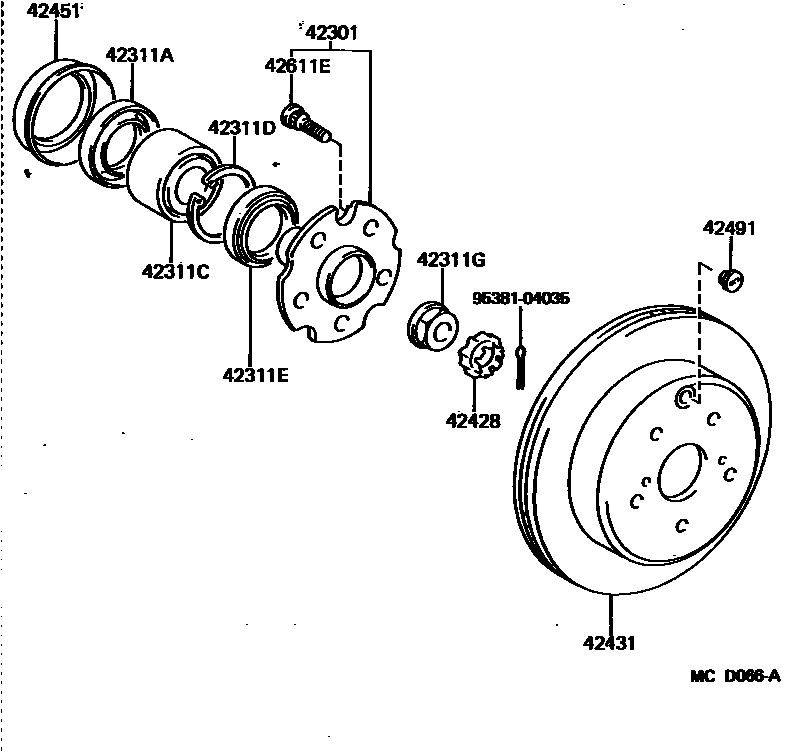

REAR AXLE SHAFT & HUB

0001 1 0002 1

42301SHAFT SUB-ASSY, REAR AXLE

main42301-14010iMA70198601-198808

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-63001iMA70198601-198808

42311CBEARING(FOR REAR AXLE SHAFT)

main90369-43005iMA70198601-198808

42311DRING, SNAP(FOR REAR AXLE SHAFT)

main90521-85002iMA70198601-198808

42311ESEAL, OIL(FOR REAR AXLE SHAFT OUTER)

main90311-57001iMA70198601-198808

42311GNUT(FOR REAR AXLE SHAFT)

main90179-22015iMA70198601-198808

42428PLATE, REAR AXLE LOCK NUT

main42428-14010iMA70198601-198808

42431DISC, REAR

main42431-14100iMA70198601-198808

sub42431-14110

42451DEFLECTOR, REAR WHEEL BEARING DUST, NO.1

main42451-14010iMA70198601-198808

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020iMA70198601-198808

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02049iMA70198601-198808

9538104035

main95381-04035

12 parts on this diagram · 2 diagrams in section
