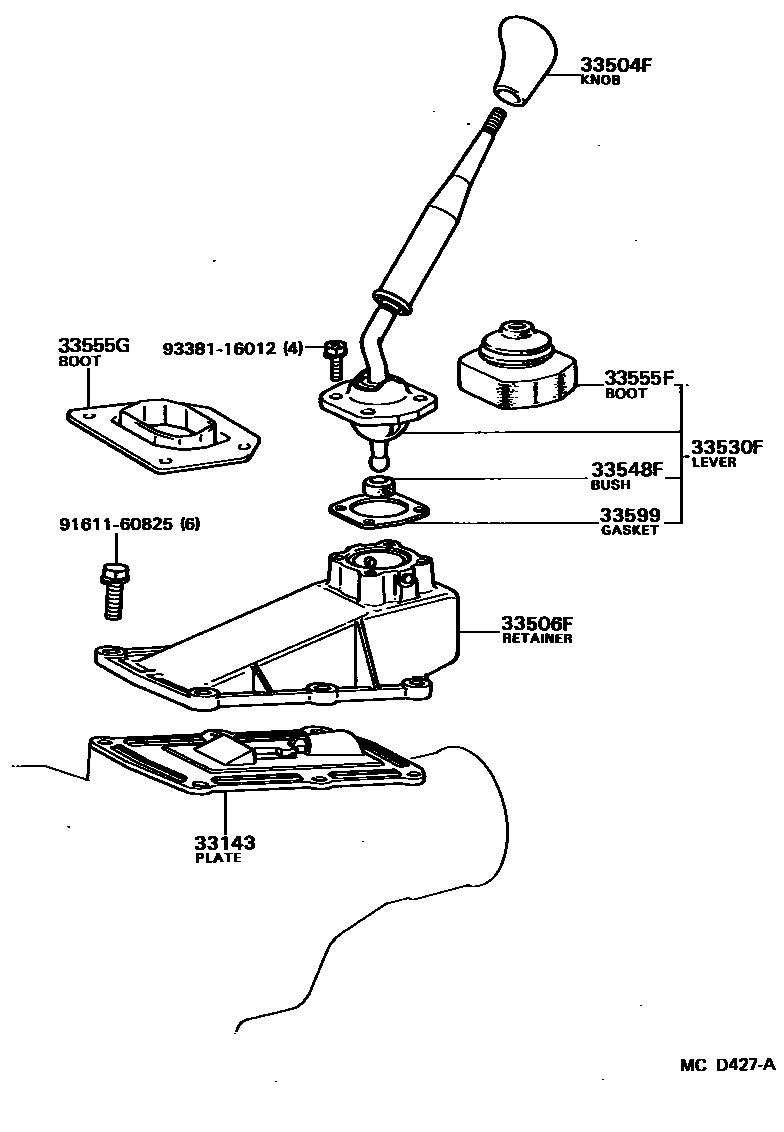

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1

33143PLATE, EXTENSION HOUSING OIL BAFFLE

main33143-22020iMA70..5F..TWC198601-198808

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-14100-02iMA70..5F198601-198808

MAROON,MAROON,TRIM3#

sub33504-14101

main33504-14100-03iMA70..5F198601-198808

GRAY,MEDIUM GRAY,TRIM1#

sub33504-14101

main33504-14100-04iMA70..5F198601-198808

BLUE,DEEP BLUE,TRIM8#

sub33504-14101

main33504-14100-05iMA70..5F198601-198808

BEIGE,BEIGE,TRIM4#

sub33504-14101

main33542-32050-13iMA70..4FC198601-198808

GRAY,MEDIUM GRAY,TRIM1#

sub33542-32050

main33542-32050-15iMA70..4FC198601-198808

BEIGE,DARK BEIGE,TRIM4#

sub33542-32050

main33542-32050-22iMA70..4FC198601-198808

MAROON,MAROON,TRIM3#

sub33542-32050

main33542-32050-24iMA70..4FC198601-198808

BLUE,DEEP BLUE,TRIM8#

sub33542-32050

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33570-14050iMA70..5F..TWT198608-198808

main33570-22070iMA70..5F..TWC198601-198808

sub33570-30010

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-14390iMA70..5F198601-198808

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-31010iMA70..5F198601-198808

33555BOOT, SHIFT LEVER

main33555-14060iMA70..4FC198601-198808

33555FBOOT, SHIFT & SELECT LEVER, NO.2

main33555-22050iMA70..5F198601-198808

33555GBOOT, SHIFT & SELECT LEVER, NO.3

main33555-14080iMA70..5F198601-198808

sub33555-14070

33599GASKET, CONTROL SHIFT LEVER RETAINER, NO.2

main33584-22020iMA70..5F198601-198808

9161160825

main91611-60825

9338116012

main93381-16012

11 parts on this diagram · 3 diagrams in section
