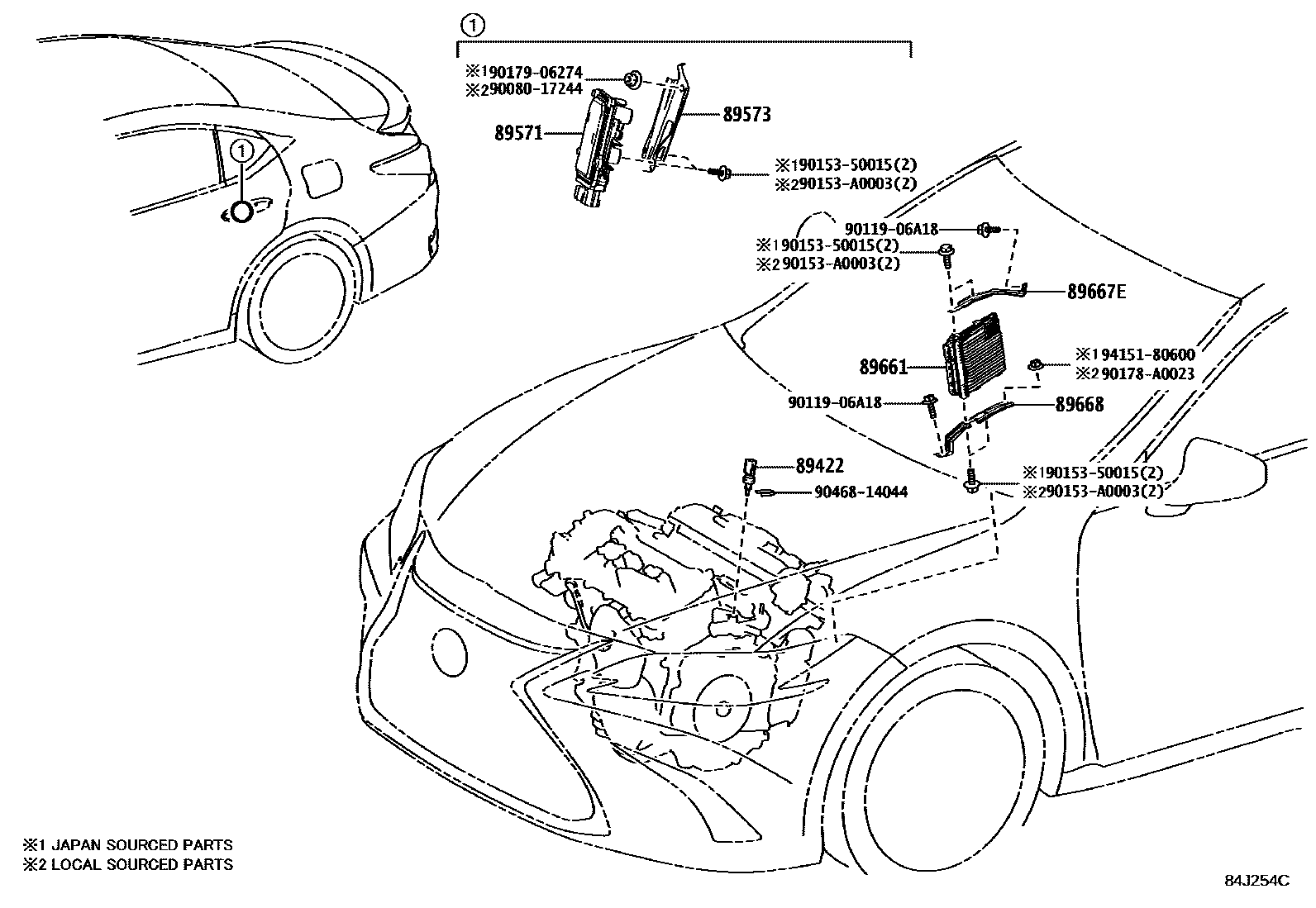

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-47010iGSZ10¥2,410201808-202109

89571COMPUTER, FUEL PUMP CONTROL

main89571-06010iAXZH10201905-201908

(L)

main89571-06020iGSZ10201808-202004

(L)

main89571-08010iGSZ10202004-202109

(L)

main89571-0R010iAXZA15,AXZH1#201908-202109

(L)

main89571-33030iAXZH10¥10,900201905-201908

(J)

main89571-42010iAXZA15,AXZH1#¥9,900201908-202109

(J)

main89571-58010iGSZ10¥10,300201808-202004

(J)

main89571-58020iGSZ10¥10,300202004-202109

(J)

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-33040iAXZH10,GSZ10¥540201808-202004

main89573-33070iAXZA15,AXZH1#,GSZ10¥410202004-202109

89661COMPUTER, ENGINE CONTROL

main89661-0X200iAXZH11202209

DENSO

main89661-0X220iAXZH10202209

DENSO

main89661-0X420iAXZH10201905-202009

DENSO

sub89661-0X421

main89661-0X500iGSZ10201808-201810

DENSO

sub89661-0X501

main89661-0X501iGSZ10201811-201909

DENSO

main89661-0X510iGSZ10202109-202410

DENSO

main89661-0X680iGSZ10201909-202009

DENSO

main89661-0X810iGSZ10202009-202109

DENSO

main89661-0X820iAXZA15202109-202209

DENSO

sub89661-0X821

main89661-0X830iAXZH11202009-202109

DENSO

main89661-0X840iAXZH10202009-202109

DENSO

main89661-0X850iAXZA15202009-202109

DENSO

main89661-0X870iAXZH10202109-202209

DENSO

main89661-0X880iAXZH11202109-202209

DENSO

main89661-0XA70iAXZA15202407-202410

DENSO

main89661-0XA71iAXZA15202410

DENSO

main89661-0XB80iAXZA15202209-202407

DENSO

main89661-0XB90iGSZ10202410

DENSO

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-06240iAXZA15202009-202103

(L)

sub89667-33190¥800

main89667-06250iAXZH1#201905-202106

sub89667-33200¥650

main89667-06260iGSZ10202009-202103

(L)

sub89667-33210

main89667-06260iGSZ10201808-202009

sub89667-33210

main89667-33190iAXZA15¥800202009-202109

(J)

main89667-33190iAXZA15¥800202103-202109

(L)

main89667-33200iAXZH1#¥650202109

(J)

main89667-33200iAXZH1#¥650202106-202109

main89667-33210iGSZ10202103-202109

(L)

main89667-33210iGSZ10202009-202109

(J)

main89667-33210iGSZ10202109

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-06240iAXZA15202009-202103

(L)

sub89668-33240

main89668-06250iAXZH1#201905-202106

sub89668-33250

main89668-06260iGSZ10201808-202009

sub89668-33260

main89668-06260iGSZ10202009-202103

(L)

sub89668-33260

main89668-33240iAXZA15202009-202109

(J)

main89668-33240iAXZA15202103-202109

(L)

main89668-33250iAXZH1#202106-202109

main89668-33250iAXZH1#202109

(J)

main89668-33260iGSZ10202009-202109

(J)

main89668-33260iGSZ10202109

main89668-33260iGSZ10202103-202109

(L)

9008017244

main90080-17244¥80

9011906A18

main90119-06A18¥80

9015350015

main90153-50015¥60

90153A0003

main90153-A0003

90178A0023

main90178-A0023

9017906274

main90179-06274¥70

9046814044

main90468-14044¥60

9415180600

main94151-80600¥60

14 parts on this diagram · 3 diagrams in section
