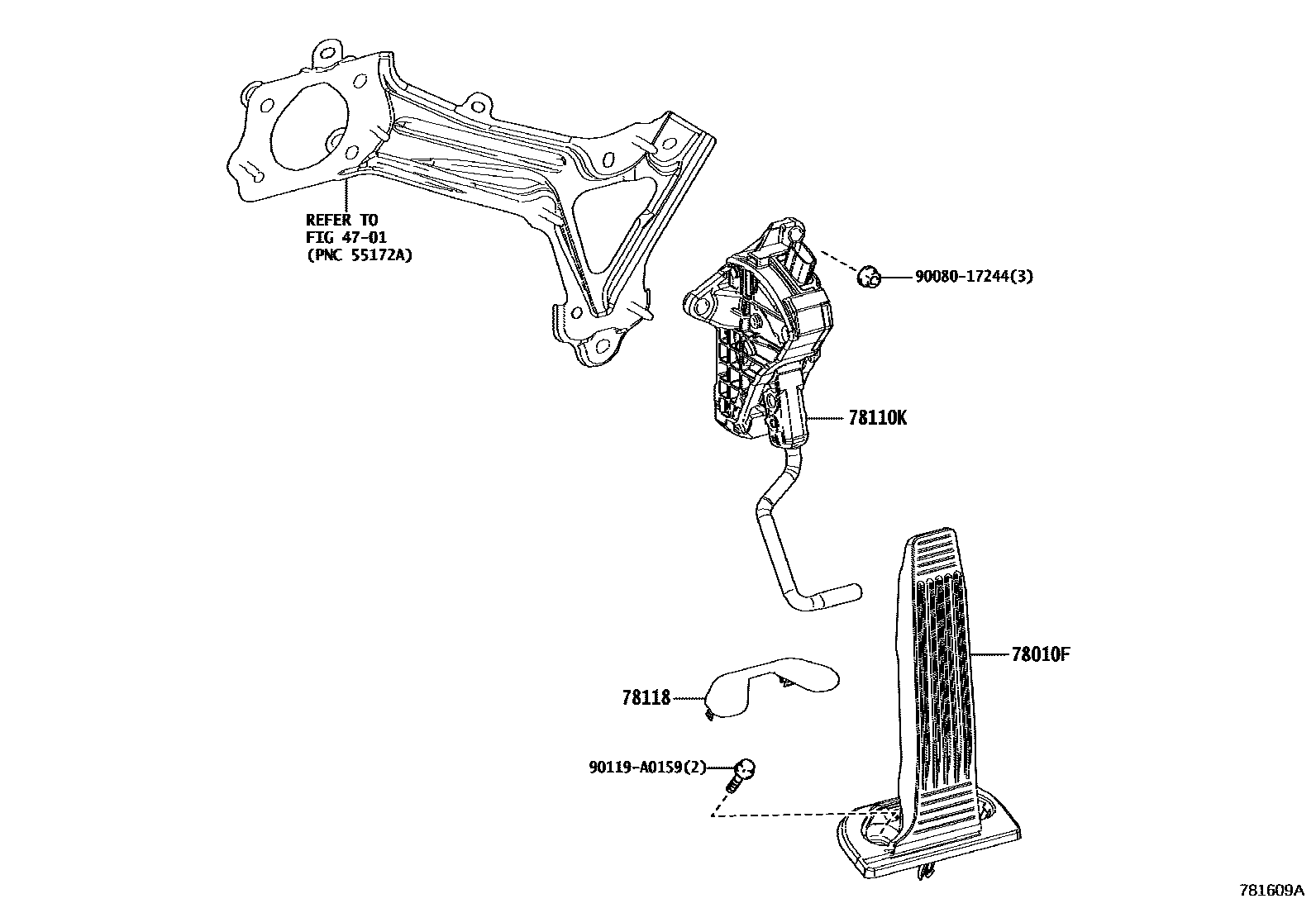

ACCELERATOR LINK

4701

78010FPEDAL ASSY, ACCELERATOR

main78101-06010iAXZA15,AXZH1#,GSZ10201808-202201

sub78101-06011

main78101-06011iAXZA15,AXZH1#,GSZ10202202

main78101-33070iAXZA15,AXZH11,GSZ10201808-202109

F SPORT

main78101-33070iGSZ10202009-202109

F SPORT SPECIAL

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-06060iAXZA15,AXZH1#,GSZ10201808-202011

sub78110-06061

main78110-06061iAXZA15,AXZH1#,GSZ10202012-202109

78118PAD, ACCELERATOR PEDAL

main78117-06010iAXZA15,AXZH1#,GSZ10201808-202109

9008017244

main90080-17244

90119A0159

main90119-A0159

6 parts on this diagram · 1 diagram in section
