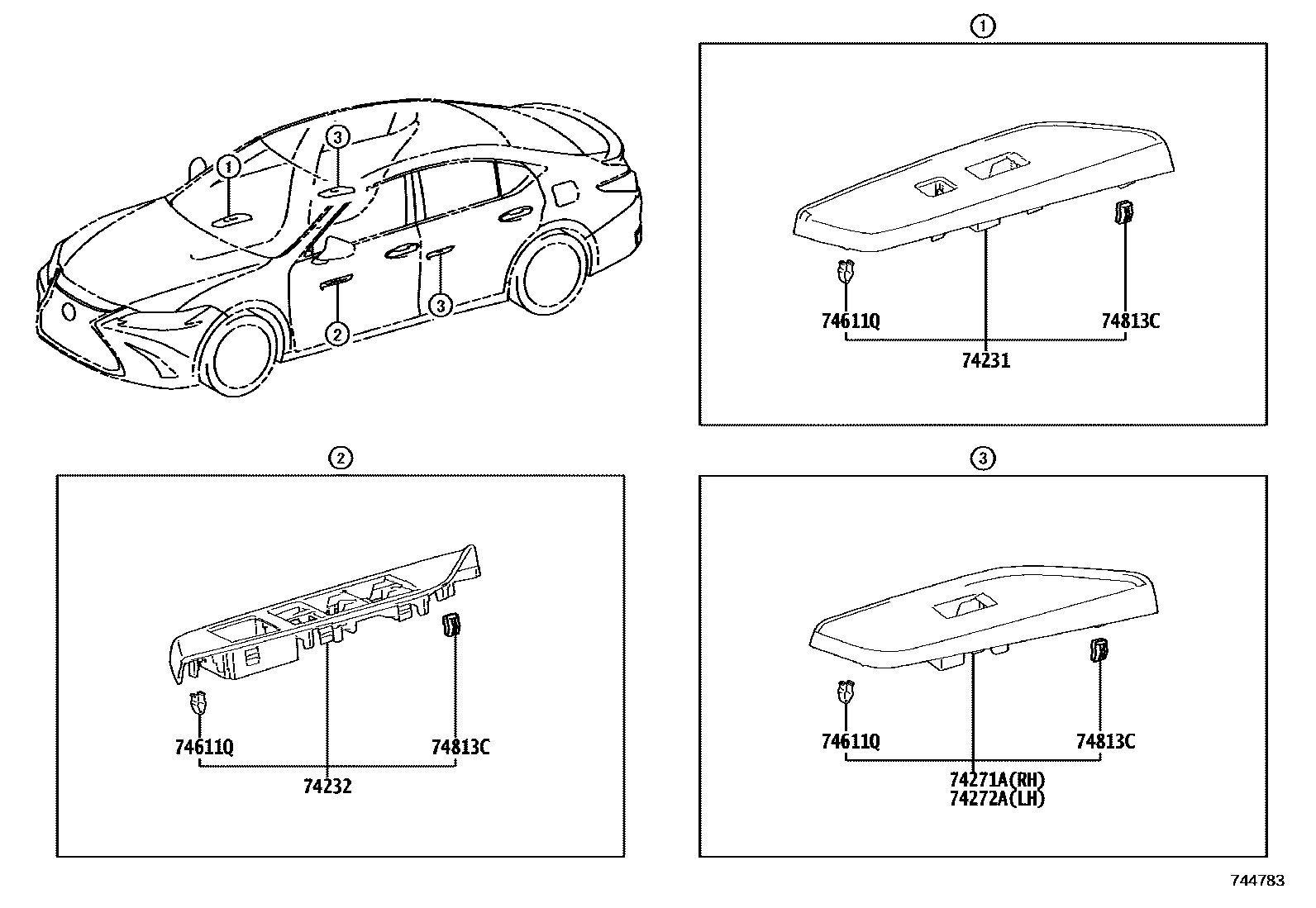

ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74230-06150iAXZA15,AXZH1#,GSZ10202109

main74230-06170iAXZA15,AXZH1#,GSZ10201808-202109

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74240-06130iAXZA15,AXZH1#,GSZ10201808-202109

main74240-06140iAXZA15,AXZH1#,GSZ10202109

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74270-06020iAXZA15,AXZH1#,GSZ10201808-202109

main74270-06030iAXZA15,AXZH1#,GSZ10202109

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74280-06020iAXZA15,AXZH1#,GSZ10201808-202109

main74280-06030iAXZA15,AXZH1#,GSZ10202109

74611QCLIP

main90467-05172iAXZA15,AXZH1#,GSZ10¥60201808-202109

74813CCLIP

main90468-08048iAXZA15,AXZH1#,GSZ10¥60201808-202109

6 parts on this diagram · 2 diagrams in section
