SEAT BELT & CHILD RESTRAINT SEAT
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
WHITE,TRIM1#,2#
WHITE,TRIM1#,20,21,22,23
WHITE,TRIM0#,20,21,22,23,6#
BLACK,TRIM24,25
BLACK,TRIM24,25,26
BLACK,TRIM24,25,26,7#
NOBLE BROWN,TRIM5#,6#
HAZEL,TRIM4#
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
WHITE,TRIM0#,20,21,22,23,6#
WHITE,TRIM1#,20,21,22,23
WHITE,TRIM1#,2#
BLACK,TRIM24,25,26
BLACK,TRIM24,25
BLACK,TRIM24,25,26,7#
NOBLE BROWN,TRIM5#,6#
HAZEL,TRIM4#
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73210BELT ASSY, FRONT SEAT OUTER, RH
WHITE/BLACK,TRIM1#,2#
WHITE/BLACK,TRIM1#,20,21,22,23
BLACK/BLACK,TRIM24,25,26
BLACK/BLACK,TRIM24,25
BLACK,TRIM0#,2#,4#,6#,7#
NOBLE BROWN,TRIM5#,6#
WHITE/BLACK,TRIM1#,2#
WHITE/BLACK,TRIM1#,20,21,22,23
BLACK/BLACK,TRIM24,25,26
NOBLE BROWN/NOBLE BROWN,TRIM5#,6#
73219STOPPER, TONGUE PLATE
BLACK
GRAY
BEIGE
MELLOW WHITE
73220BELT ASSY, FRONT SEAT OUTER, LH
WHITE/BLACK,TRIM1#,20,21,22,23
WHITE/BLACK,TRIM1#,2#
BLACK/BLACK,TRIM24,25,26
BLACK/BLACK,TRIM24,25
BLACK,TRIM0#,2#,4#,6#,7#
NOBLE BROWN,TRIM5#,6#
WHITE/BLACK,TRIM1#,2#
WHITE/BLACK,TRIM1#,20,21,22,23
BLACK/BLACK,TRIM24,25,26
NOBLE BROWN/NOBLE BROWN,TRIM5#,6#
73223BCOVER, FRONT SEAT BELT RETRACTOR, RH
73224BCOVER, FRONT SEAT BELT RETRACTOR, LH
73230BELT ASSY, FRONT SEAT INNER, RH
ULTRA LUXURY PACKAGE,BLACK,TRIM1#,2#
PREMIUM PACKAGE,BLACK,TRIM1#,2#
LUXURY PACKAGE,BLACK,TRIM1#,2#
BLACK,TRIM1#,2#
SEAT HEATER-WITH,BLACK,TRIM1#,2#
BLACK,TRIM0#,2#,4#,6#,7#
LUXURY PACKAGE,NOBLE BROWN,TRIM5#,6#
ULTRA LUXURY PACKAGE,NOBLE BROWN,TRIM5#,6#
PREMIUM PACKAGE,NOBLE BROWN,TRIM5#,6#
NOBLE BROWN,TRIM5#,6#
SEAT HEATER-WITH,NOBLE BROWN,TRIM5#,6#
73240BELT ASSY, FRONT SEAT INNER, LH
PREMIUM PACKAGE,BLACK,TRIM1#,2#
BLACK,TRIM1#,2#
LUXURY PACKAGE,BLACK,TRIM1#,2#
ULTRA LUXURY PACKAGE,BLACK,TRIM1#,2#
SEAT HEATER-WITH,BLACK,TRIM1#,2#
BLACK,TRIM0#,2#,4#,6#,7#
LUXURY PACKAGE,NOBLE BROWN,TRIM5#,6#
ULTRA LUXURY PACKAGE,NOBLE BROWN,TRIM5#,6#
PREMIUM PACKAGE,NOBLE BROWN,TRIM5#,6#
SEAT HEATER-WITH,NOBLE BROWN,TRIM5#,6#
NOBLE BROWN,TRIM5#,6#
7215106010RAIL, SEAT TRACK, LOWER RH
main72151-06010
9008017195
main90080-17195
90105A0082
main90105-A0082
90105A0163
main90105-A0163
90105A0186
main90105-A0186
90178A0081
main90178-A0081

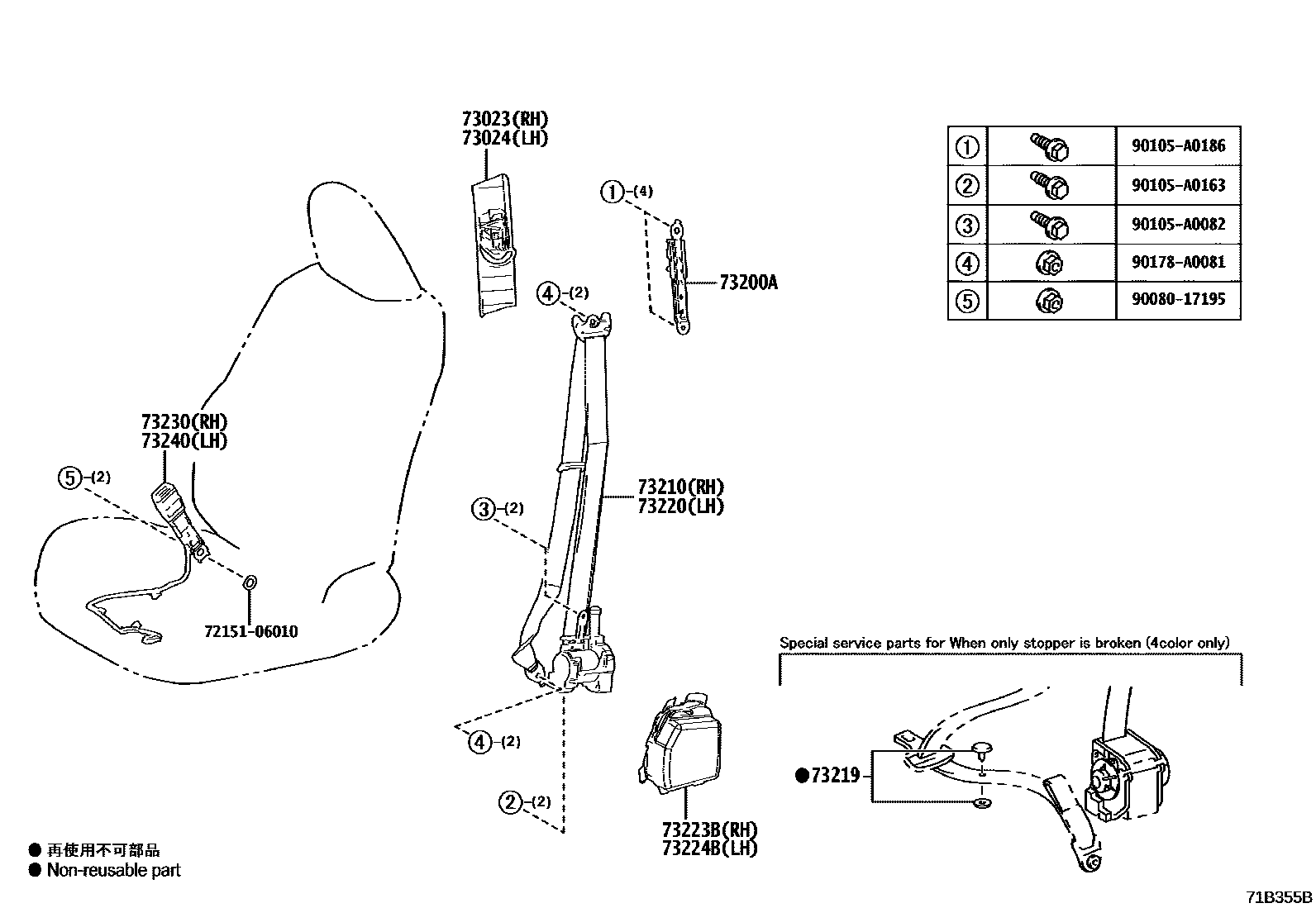

16 parts on this diagram · 2 diagrams in section
