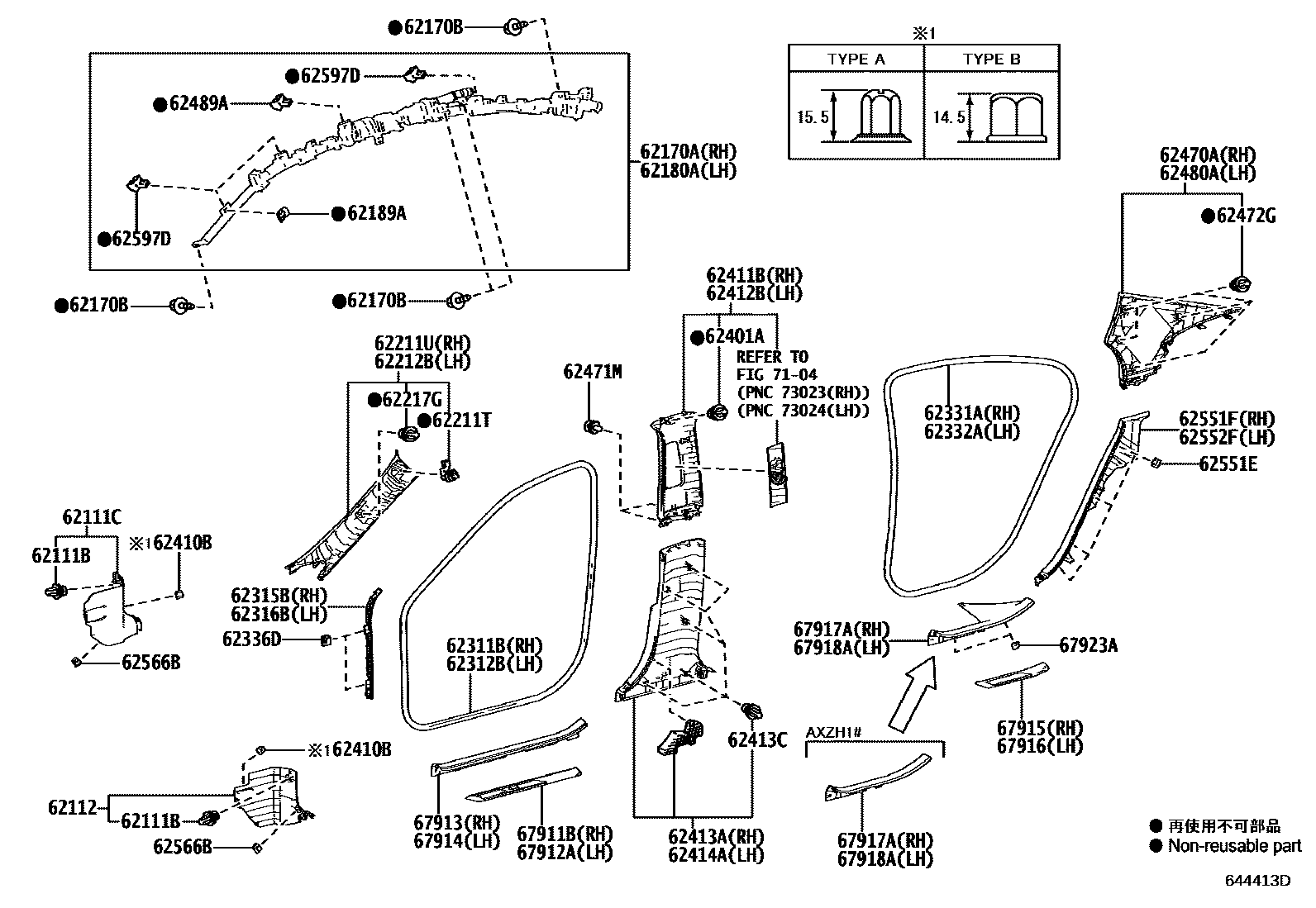

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62111BCLIP(FOR COWL SIDE TRIM)
62111CBOARD, COWL SIDE TRIM, RH
BLACK,TRIM0#,2#,4#,6#,7#
BLACK,TRIM1#,2#
NOBLE BROWN,TRIM5#,6#
62112BOARD, COWL SIDE TRIM, LH
BLACK,TRIM1#,2#
BLACK,TRIM0#,2#,4#,6#,7#
NOBLE BROWN,TRIM5#,6#
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
62170BBOLT, W/WASHER
(L)
(J)
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
62189ASPACER, CURTAIN SHIELD AIRBAG CLIP
62211TCLIP(FOR FRONT PILLAR GARNISH)
62211UGARNISH ASSY, FRONT PILLAR, RH
BLACK, CHARCOAL,TRIM1#,2#
BLACK, CHARCOAL,TRIM0#,2#,4#,6#,7#
NOBLE BROWN, CHARCOAL,TRIM5#,6#
62212BGARNISH ASSY, FRONT PILLAR, LH
BLACK, CHARCOAL,TRIM0#,2#,4#,6#,7#
BLACK, CHARCOAL,TRIM1#,2#
NOBLE BROWN, CHARCOAL,TRIM5#,6#
62217GCLIP, FRONT PILLAR GARNISH
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62315BCOVER, FRONT DOOR OPENING TRIM, RH
BLACK,TRIM1#,2#
BLACK,TRIM0#,2#,4#,6#,7#
NOBLE BROWN,TRIM5#,6#
62316BCOVER, FRONT DOOR OPENING TRIM, LH
BLACK,TRIM1#,2#
BLACK,TRIM0#,2#,4#,6#,7#
NOBLE BROWN,TRIM5#,6#
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62336DCLAMP
62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)
62410BCLIP
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
62411BGARNISH, CENTER PILLAR, UPPER RH
LWHITE,TRIM0#,20,21,22,23,6#
BLACK,TRIM24,25,26,7#
HAZEL,TRIM4#
62412BGARNISH, CENTER PILLAR, UPPER LH
LWHITE,TRIM0#,20,21,22,23,6#
BLACK,TRIM24,25,26,7#
HAZEL,TRIM4#
62413AGARNISH, CENTER PILLAR, LOWER RH
BLACK,TRIM1#,2#
BLACK,TRIM0#,2#,4#,6#,7#
NOBLE BROWN,TRIM5#,6#
62413CCLIP (FOR CENTER LOWER GARNISH)
62414AGARNISH, CENTER PILLAR, LOWER LH
BLACK,TRIM1#,2#
BLACK,TRIM0#,2#,4#,6#,7#
NOBLE BROWN,TRIM5#,6#
62470AGARNISH ASSY, ROOF SIDE, INNER RH
LWHITE, ECRU,TRIM1#,2#
LWHITE, ECRU,TRIM1#,20,21,22,23
LWHITE, ECRU,TRIM0#,20,21,22,23,6#
BLACK, CHARCOAL,TRIM24,25
BLACK, CHARCOAL,TRIM24,25,26
BLACK, CHARCOAL,TRIM24,25,26,7#
NOBLE BROWN, CHARCOAL,TRIM5#,6#
HAZEL/CHARCOAL,TRIM4#
62471MCLIP
62472GCLIP (FOR ROOF SIDE GARNISH)
62480AGARNISH ASSY, ROOF SIDE, INNER LH
LWHITE, ECRU,TRIM0#,20,21,22,23,6#
LWHITE, ECRU,TRIM1#,20,21,22,23
LWHITE, ECRU,TRIM1#,2#
BLACK,CHARCOAL,TRIM24,25,26
BLACK,CHARCOAL,TRIM24,25
BLACK,CHARCOAL,TRIM24,25,26,7#
NOBLE BROWN, CHARCOAL,TRIM5#,6#
HAZEL/CHARCOAL,TRIM4#
62489ACLIP, ROOF SIDE INNER GARNISH
62551ECLIP(FOR REAR SEAT SIDE GARNISH)
62551FGARNISH, REAR SEAT SIDE, RH
BLACK,TRIM1#,2#
BLACK,TRIM0#,2#,4#,6#,7#
NOBLE BROWN,TRIM5#,6#
62552FGARNISH, REAR SEAT SIDE, LH
BLACK,TRIM0#,2#,4#,6#,7#
BLACK,TRIM1#,2#
NOBLE BROWN,TRIM5#,6#
62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1
62597DCLIP
67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH
BLACK,TRIM0#,2#,4#,6#,7#
BLACK,TRIM1#,2#
NOBLE BROWN,TRIM5#,6#
67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH
BLACK,TRIM1#,2#
BLACK,TRIM0#,2#,4#,6#,7#
NOBLE BROWN,TRIM5#,6#
67913PLATE, FRONT DOOR SCUFF, RH
BLACK,TRIM1#,2#
BLACK,TRIM0#,2#,4#,6#,7#
NOBLE BROWN,TRIM5#,6#
67914PLATE, FRONT DOOR SCUFF, LH
BLACK,TRIM1#,2#
BLACK,TRIM0#,2#,4#,6#,7#
NOBLE BROWN,TRIM5#,6#
67915PLATE, REAR DOOR SCUFF, OUTSIDE RH
BLACK,TRIM0#,2#,4#,6#,7#
BLACK,TRIM1#,2#
NOBLE BROWN,TRIM5#,6#
67916PLATE, REAR DOOR SCUFF, OUTSIDE LH
BLACK,TRIM1#,2#
BLACK,TRIM0#,2#,4#,6#,7#
NOBLE BROWN,TRIM5#,6#
67917APLATE, REAR DOOR SCUFF, RH
BLACK,TRIM0#,2#,4#,6#,7#
BLACK,TRIM1#,2#
NOBLE BROWN,TRIM5#,6#
BLACK,TRIM1#,2#
BLACK,TRIM0#,2#,4#,6#,7#
NOBLE BROWN,TRIM5#,6#
67918APLATE, REAR DOOR SCUFF, LH
BLACK,TRIM1#,2#
BLACK,TRIM0#,2#,4#,6#,7#
NOBLE BROWN,TRIM5#,6#
BLACK,TRIM1#,2#
BLACK,TRIM0#,2#,4#,6#,7#
NOBLE BROWN,TRIM5#,6#
67923ACLAMP, DOOR SCUFF PLATE, NO.1
7104
45 parts on this diagram · 1 diagram in section
