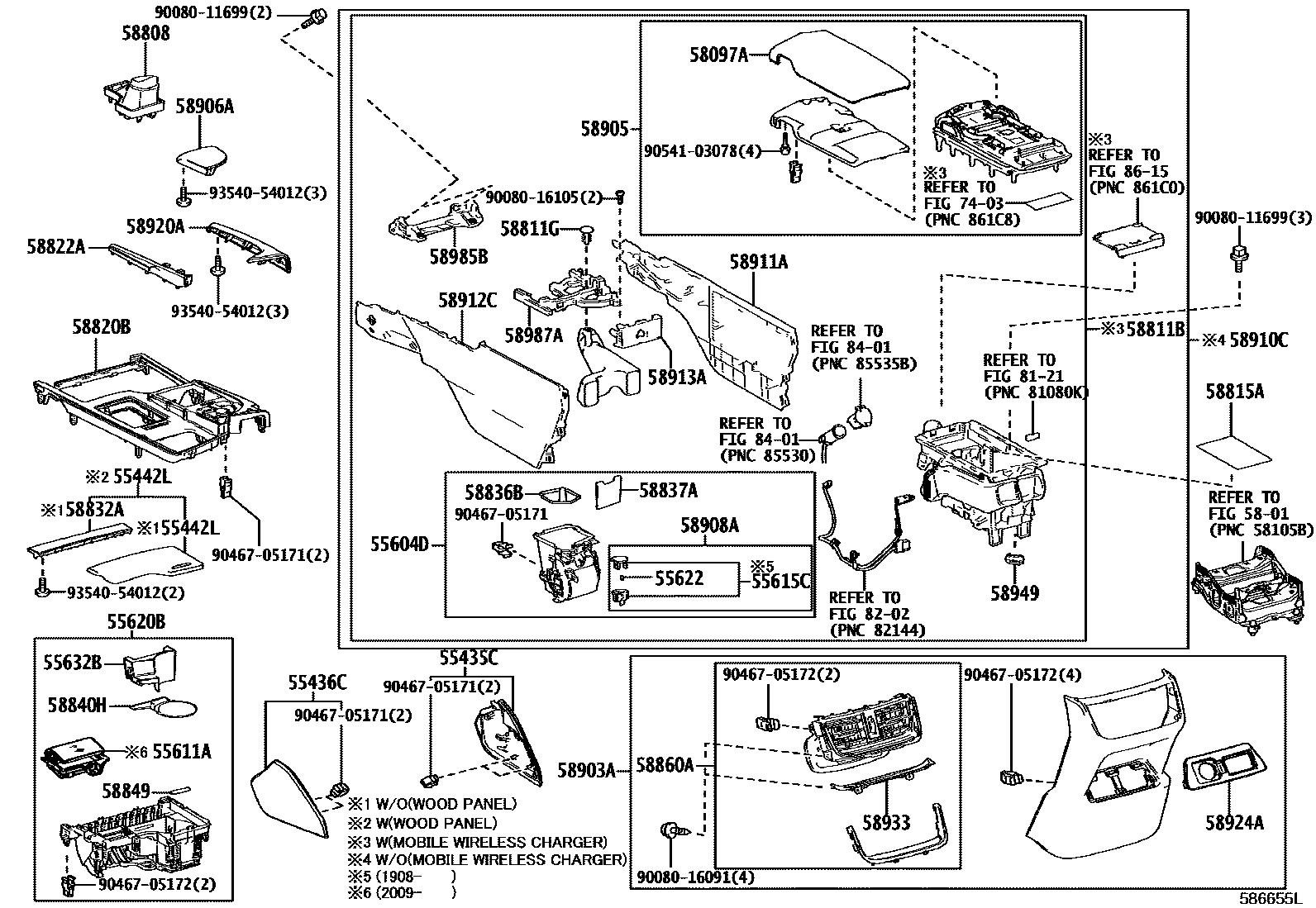

CONSOLE BOX & BRACKET
55435CPANEL, INSTRUMENT PANEL FINISH, END RH
BLACK/MELLOW WHITE NO.2,TRIM6#
BLACK/MAUVE,TRIM7#
BLACK,TRIM0#
BLACK/RED,TRIM25
BLACK/LT.GRAY,TRIM1#,2#
BLACK/RED,TRIM25
BLACK/LT.GRAY NO.831,TRIM20,21,22,23,24,26
BLACK/HAZEL,TRIM4#
NOBLE BROWN/BORDEAU,TRIM5#,6#
BLACK/RED,TRIM25
BLACK/LT.GRAY,TRIM1#,20,21,22,23,24
NOBLE BROWN/BORDEAU,TRIM5#
55436CPANEL, INSTRUMENT PANEL FINISH, END LH
BLACK/RED,TRIM25
BLACK/LT.GRAY,TRIM1#,2#
NOBLE BROWN/BORDEAU,TRIM5#
BLACK/MELLOW WHITE NO.2,TRIM6#
BLACK/MAUVE,TRIM7#
BLACK,TRIM0#
BLACK/RED,TRIM25
BLACK/LT.GRAY,TRIM1#,2#
RBLACK/ED NO.55,TRIM25
BLACK/LT.GRAY NO.831,TRIM20,21,22,23,24,26
BLACK/HAZEL,TRIM4#
NOBLE BROWN/BORDEAU,TRIM5#,6#
55442LDOOR, INSTRUMENT PANEL
CONSOLE BOX-SYNTHETIC LEATHER & WOOD PANEL,BLACK,TRIM21,41,61,71
CONSOLE BOX-SYNTHETIC LEATHER & WOOD PANEL,OPEN PORE,TRIM23,43,63,73
CONSOLE BOX-SYNTHETIC LEATHER & WOOD PANEL,NATURAL BROWN,TRIM22,42,62,72
CONSOLE BOX-SYNTHETIC LEATHER & WOOD PANEL,BLACK,TRIM11,21,51,61
CONSOLE BOX-SYNTHETIC LEATHER & WOOD PANEL,DK.BROWN,TRIM13,23,53,63
CONSOLE BOX-SYNTHETIC LEATHER & WOOD PANEL,NATURAL BROWN,TRIM12,22,52,62
55604DHOLDER SUB-ASSY, INSTRUMENT PANEL CUP
55611ATRAY, INSTRUMENT PANEL UNDER
55615CCASE, INSTRUMENT PANEL CUP HOLDER, OUTER
55620BHOLDER, INSTRUMENT PANEL CUP
55622SPRING, INSTR PANEL CUP HOLDER, NO.1
55632BSUPPORT, INSTRUMENT PANEL UNDER TRAY, NO.2
5801
58097ACOVER SUB-ASSY, CONSOLE COMPARTMENT DOOR, INNER
RICH CREAM,TRIM60,61,63
WHITE,TRIM26
RICH CREAM,TRIM61,62,63
FROMAGE,TRIM0#
CHATEAU(PRINT LEATHER),TRIM11,12,13
CHATEAU,TRIM10,11,13
BLACK(PRINT LEATHER),TRIM21,22,23
BLACK,TRIM20,21,23,24
RED,TRIM25
HAZEL,TRIM4#
MAUVE,TRIM70,71,72,73
HAZEL,TRIM41,42,43
MAUVE,TRIM71,72,73
TOPAZ BROWN(PRINT LEATHER,TRIM51,52,53
WIRELESS CHARGER-WITH,TOPAZ,TRIM51,53
58808COVER SUB-ASSY, SHIFTING HOLE
BLACK, LT GRAY,TRIM1#,20,21,22,23,24,5#,6#
BLACK, RED,TRIM25
BLACK,TRIM0#,2#,4#,6#,70,71,72,73
58811BBOX, CONSOLE
WIRELESS CHARGER-WITH,BLACK/BLACK(PRINT LEATHER,TRIM21,22,23
WIRELESS CHARGER-WITH,BLACK/BLACK,TRIM21,23,24
WIRELESS CHARGER-WITH,BLACK/RED,TRIM25
WIRELESS CHARGER-WITH,BLACK/CHATEAU(PRINT LEATH,TRIM11,12,13
WIRELESS CHARGER-WITH,BLACK/CHATEAU,TRIM11,13
WIRELESS CHARGER-WITH,NOBLE BROWN//TOPAZ BROWN,TRIM51,52,53
WIRELESS CHARGER-WITH,NOBLE BROWN/TOPAZ,TRIM51,53
DOOR TRIM ORNAMENT-WOOD & WITH(ILLUMINATION LAMP)&WIRELESS CHARGER-WITH,BLACK/HAZEL,TRIM41,42,43
DOOR TRIM ORNAMENT-WOOD & WITH(ILLUMINATION LAMP)&WIRELESS CHARGER-WITH,BLACK/MAUVE,TRIM71,72,73
WIRELESS CHARGER-WITH,BLACK/BLACK,TRIM21,22,23
WIRELESS CHARGER-WITH,BLACK/BLACK,TRIM21,23,24
WIRELESS CHARGER-WITH,BLACK/RED,TRIM25
WIRELESS CHARGER-WITH,BLACK/CHATEAU,TRIM11,12,13
WIRELESS CHARGER-WITH,BLACK/CHATEAU,TRIM11,13
WIRELESS CHARGER-WITH,BLACK/WHITE,TRIM26
DOOR TRIM ORNAMENT-WOOD & WITHOUT(ILLUMINATION LAMP)&WIRELESS CHARGER-WITH,BLACK/RICH CREAM,TRIM61,62,63
DOOR TRIM ORNAMENT-WOOD & WITHOUT(ILLUMINATION LAMP)&WIRELESS CHARGER-WITH,BLACK/HAZEL,TRIM4#
DOOR TRIM ORNAMENT-WOOD & WITHOUT(ILLUMINATION LAMP)&WIRELESS CHARGER-WITH,BLACK/MAUVE,TRIM7#
DOOR TRIM ORNAMENT-WOOD & WITH(ILLUMINATION LAMP)&WIRELESS CHARGER-WITH,BLACK/RICHCREAM,TRIM61,62,63
WIRELESS CHARGER-WITH,NOBLE BROWN/TOPAZ BROWN,TRIM51,52,53
WIRELESS CHARGER-WITH,NOBLE BROWN/TOPAZ,TRIM51,53
WIRELESS CHARGER-WITH,NOBLE BROWN/RICH CREAM,TRIM61,63
WIRELESS CHARGER-WITH,NOBLE BROWN/RICH CREAM,TRIM61,62,63
58811GCLIP(CONSOL BOX)
BLACK
58815ACARPET, CONSOLE BOX
WIRELESS CHARGER-WITH
58820BPANEL ASSY, CONSOLE, UPPER
58822APANEL, CONSOLE, UPPER REAR
58832AGARNISH, CONSOLE UPPER PANEL, REAR
CONSOLE BOX-SYNTHETIC LEATHER & WOOD PANEL,BLACK,TRIM21,41,61,71
CONSOLE BOX-SYNTHETIC LEATHER & WOOD PANEL,OPEN PORE,TRIM23,43,63,73
CONSOLE BOX-SYNTHETIC LEATHER & WOOD PANEL,NATURAL BROWN,TRIM22,42,62,72
58836BPAD, CONSOLE BOX SILENCER, NO.1
58837APAD, CONSOLE BOX SILENCER, NO.2
58840HPAD, CONSOLE BOX SILENCER, NO.1
58849COVER, CONSOLE BOX HOLE, NO.2
58860AREGISTER ASSY, CONSOLE BOX
58903APANEL SUB-ASSY, CONSOLE REAR END
BLACK,TRIM1#,2#
NOBLE BROWN,TRIM5#,6#
BLACK,TRIM1#,2#
NOBLE BROWN,TRIM5#,6#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
NOBLE BROWN/RICH CREAM,TRIM60,61,63
BLACK/RICH CREAM,TRIM60,61,62,63
CHATEAU/BLACK,TRIM10,11,13
BLACK,TRIM20,21,22,23,24,W/O ILLUMINATION
HAZEL/BLACK,TRIM40,41,42,43
MAUVE/BLACK,TRIM70,71,72,73
TOPAZ/NOBLE BROWN,TRIM50,51,53
BLACK/FROMAGE,TRIM0#
BLACK/WHITE,TRIM26
BLACK/BLACK,TRIM20,21,22,23,24
BLACK/RED,TRIM25
BLACK/HAZEL,TRIM4#
BLACK/MAUVE,TRIM7#
WIRELESS CHARGER-WITH,NOBLE BROWN/RICH CREAM,TRIM61,63
WIRELESS CHARGER-WITH,BLACK/WHITE,TRIM26
WIRELESS CHARGER-WITH,NOBLE BROWN/RICH CREAM,TRIM61,62,63
DOOR TRIM ORNAMENT-WOOD & WITHOUT(ILLUMINATION LAMP)&WIRELESS CHARGER-WITH,BLACK/RICH CREAM,TRIM61,62,63
DOOR TRIM ORNAMENT-WOOD & WITH(ILLUMINATION LAMP)&WIRELESS CHARGER-WITH,BLACK/RICHCREAM,TRIM61,62,63
DOOR TRIM ORNAMENT-WOOD & WITH(ILLUMINATION LAMP)&WIRELESS CHARGER-WITH,CHATEAU/BLACK,TRIM11,12,13
DOOR TRIM ORNAMENT-WOOD & WITHOUT(ILLUMINATION LAMP)&WIRELESS CHARGER-WITH,CHATEAU/BLACK,TRIM11,13
WIRELESS CHARGER-WITH,BLACK,TRIM21,22,23
WIRELESS CHARGER-WITH,BLACK,TRIM20,21,22,23,24
WIRELESS CHARGER-WITH,RED/BLACK,TRIM25
WIRELESS CHARGER-WITH,HAZEL/BLACK,TRIM41,42,43
DOOR TRIM ORNAMENT-WOOD & WITHOUT(ILLUMINATION LAMP)&WIRELESS CHARGER-WITH,MAUVE/BLACK,TRIM7#
DOOR TRIM ORNAMENT-WOOD & WITH(ILLUMINATION LAMP)&WIRELESS CHARGER-WITH,HAZEL/BLACK,TRIM41,42,43
DOOR TRIM ORNAMENT-WOOD & WITH(ILLUMINATION LAMP)&WIRELESS CHARGER-WITH,MAUVE/BLACK,TRIM71,72,73
WIRELESS CHARGER-WITH,TOPAZ BROWN/NOBLE BROWN,TRIM51,52,53
WIRELESS CHARGER-WITH,TOPAZ/NOBLE BROWN,TRIM51,53
58906APAD SUB-ASSY, CONSOLE COMPARTMENT DOOR
BLACK,TRIM0#,2#,4#,6#,7#
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58910CBOX ASSY, CONSOLE, REAR
BLACK/RICH CREAM,TRIM60,61,62,63
BLACK/WHITE,TRIM26
BLACK/BLACK,TRIM20,21,22,23,24
BLACK/RED,TRIM25
BLACK/HAZEL,TRIM40,41,42,43
BLACK/MAUVE,TRIM70,71,72,73
BLACK/RICH CREAM,TRIM61,62,63
BLACK/BLACK,TRIM21,22,23
BLACK/HAZEL,TRIM41,42,43
BLACK/MAUVE,TRIM71,72,73
BLACK/BLACK,TRIM20,21,22,23,24
BLACK/RED,TRIM25
BLACK/CHATEAU,TRIM11,12,13
BLACK/CHATEAU,TRIM10,11,13
BLACK/WHITE,TRIM26
BLACK,TRIM21,22,23
BLACK,TRIM20,21,23
TOPAZ BROWN/NOBLE BROWN,TRIM51,52,53,W/ILLUMINATION
TOPAZ/NOBLE BROWN,TRIM50,51,53,W/O ILLUMINATION
NOBLE BROWN/RICH CREAM,TRIM60,61,63
NOBLE BROWN/RICH CREAM,TRIM61,62,63
WIRELESS CHARGER-WITH,BLACK/FROMAGE,TRIM0#
WIRELESS CHARGER-WITH,BLACK/WHITE,TRIM26
WIRELESS CHARGER-WITH,BLACK/BLACK,TRIM20,21,22,23,24
WIRELESS CHARGER-WITH,BLACK/RED,TRIM25
WIRELESS CHARGER-WITH,BLACK/HAZEL,TRIM4#
WIRELESS CHARGER-WITH,BLACK/MAUVE,TRIM7#
58911APANEL, BOX SIDE, NO.1
BLACK,TRIM1#,2#
NOBLE BROWN,TRIM5#,6#
BLACK,TRIM0#,2#,4#,7#
58912CPANEL, BOX SIDE, NO.2
BLACK,TRIM1#,2#
NOBLE BROWN,TRIM5#,6#
BLACK,TRIM0#,2#,4#,7#
58913APANEL, BOX, NO.3
WIRELESS CHARGER-WITH
WIRELESS CHARGER-WITH
58920AARMREST ASSY, REAR CONSOLE
RICH CREAM,TRIM6#
WHITE,TRIM26
CHATEAU,TRIM1#
BLACK,TRIM2#
RED,TRIM25
HAZEL,TRIM4#
MAUVE,TRIM7#
TOPAZ,TRIM5#
FROMAGE,TRIM0#
WHITE,TRIM26
BLACK,TRIM20,21,22,23,24
RED,TRIM25
HAZEL,TRIM4#
MAUVE,TRIM7#
58924APANEL, CONSOLE REAR END, NO.2
BLACK,TRIM1#,2#
NOBLE BROWN,TRIM5#,6#
58933GARNISH, CONSOLE REAR END PANEL
BLACK,TRIM0#,2#,4#,6#,7#
NOBLE BROWN,TRIM5#,6#
58949PLATE, CONSOLE BOX
58985BRETAINER, CONSOLE BOX, NO.1
58987ARETAINER, CONSOLE BOX, NO.2
7403
8121
8202
8401
8615
9008011699
main90080-11699
9008016091
main90080-16091
9008016105
main90080-16105
9046705171
main90467-05171
9046705172
main90467-05172
9054103078
main90541-03078
9354054012
main93540-54012
49 parts on this diagram · 2 diagrams in section
