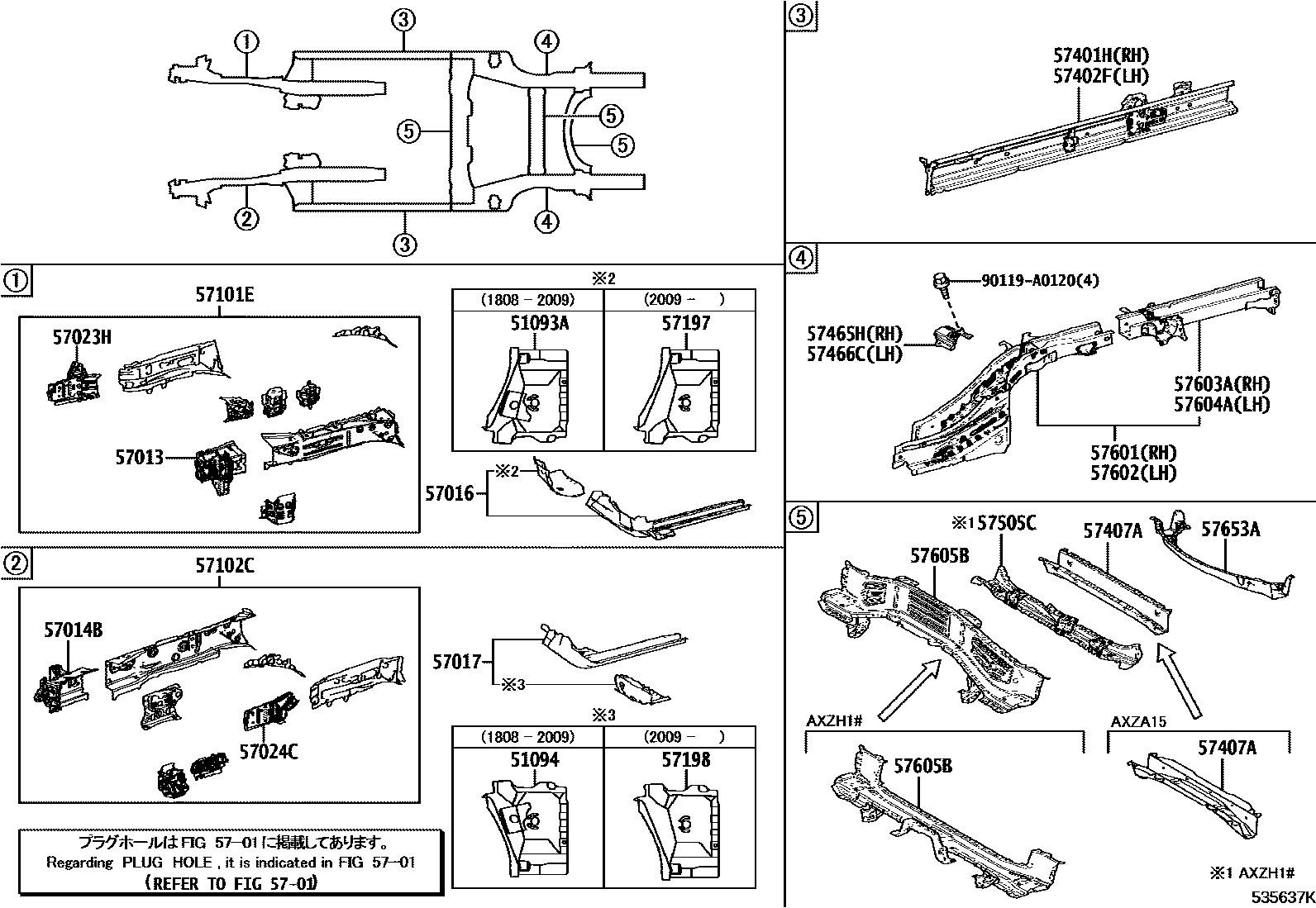

FLOOR SIDE MEMBER

51093AHOOK SUB-ASSY, TRANSPORT, FRONT RH

main51093-06010iAXZH10,GSZ10201808-202009

51094HOOK SUB-ASSY, TRANSPORT, FRONT LH

main51094-06010iAXZH10,GSZ10201808-202009

5701

57013BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-06020iAXZA15,AXZH1#,GSZ10201808-202109

main57013-06021iAXZA15,AXZH1#,GSZ10202311

57014BBRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-06020iAXZA15,AXZH1#,GSZ10201808-202109

main57014-06021iAXZA15,AXZH1#,GSZ10202311

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-06160iAXZA15,AXZH1#,GSZ10201808-202109

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-06140iAXZA15,AXZH1#,GSZ10201808-202109

57023HBRACKET SUB-ASSY, BODY MOUNTING, NO.2 RH

main57023-06010iAXZA15,AXZH1#,GSZ10201808-202109

57024CBRACKET SUB-ASSY, BODY MOUNTING, NO.2 LH

main57024-06010iAXZA15,AXZH1#,GSZ10201808-202109

57101EMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-06906iAXZA15,AXZH1#,GSZ10201808-202109

57102CMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-06906iAXZA15,AXZH1#,GSZ10202109

57197BOX, TORQUE, FRONT RH

main57197-06081iAXZA15,AXZH1#,GSZ10202009-202109

57198BOX, TORQUE, FRONT LH

main57198-06081iAXZA15,AXZH1#,GSZ10202009-202109

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-07060iAXZA15,AXZH1#,GSZ10202109

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-07060iAXZA15,AXZH1#,GSZ10201808-202109

57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-06020iAXZH1#,GSZ10201808-202010

main57407-06021iAXZH1#,GSZ10202010-202109

main57407-06022iAXZH1#,GSZ10202303

main57407-06070iAXZA15202109

57465HGUSSET, CENTER FLOOR CROSSMEMBER, RH

main57465-06010iAXZA15,AXZH1#,GSZ10202109

57466CGUSSET, CENTER FLOOR CROSSMEMBER, LH

main57466-06010iAXZA15,AXZH1#,GSZ10201808-202109

57505CREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER

main57505-06010iAXZH1#201905-202109

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-06430iAXZH1#,GSZ10202109

main57601-06490iAXZA15202109

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-06260iAXZH1#,GSZ10202109

main57602-06320iAXZA15202109

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-06020iAXZH1#,GSZ10202109

main57603-06060iAXZA15202009-202109

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-06050iAXZH1#,GSZ10201808-202109

main57604-06090iAXZA15202009-202109

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-06200iGSZ10202109

main57605-06210iAXZH1#201905-202109

main57605-06280iAXZA15202009-202109

57653AMEMBER, REAR FLOOR CROSS, NO.2

main57653-06090iAXZA15,AXZH1#,GSZ10201808-202109

90119A0120

main90119-A0120

26 parts on this diagram · 1 diagram in section
