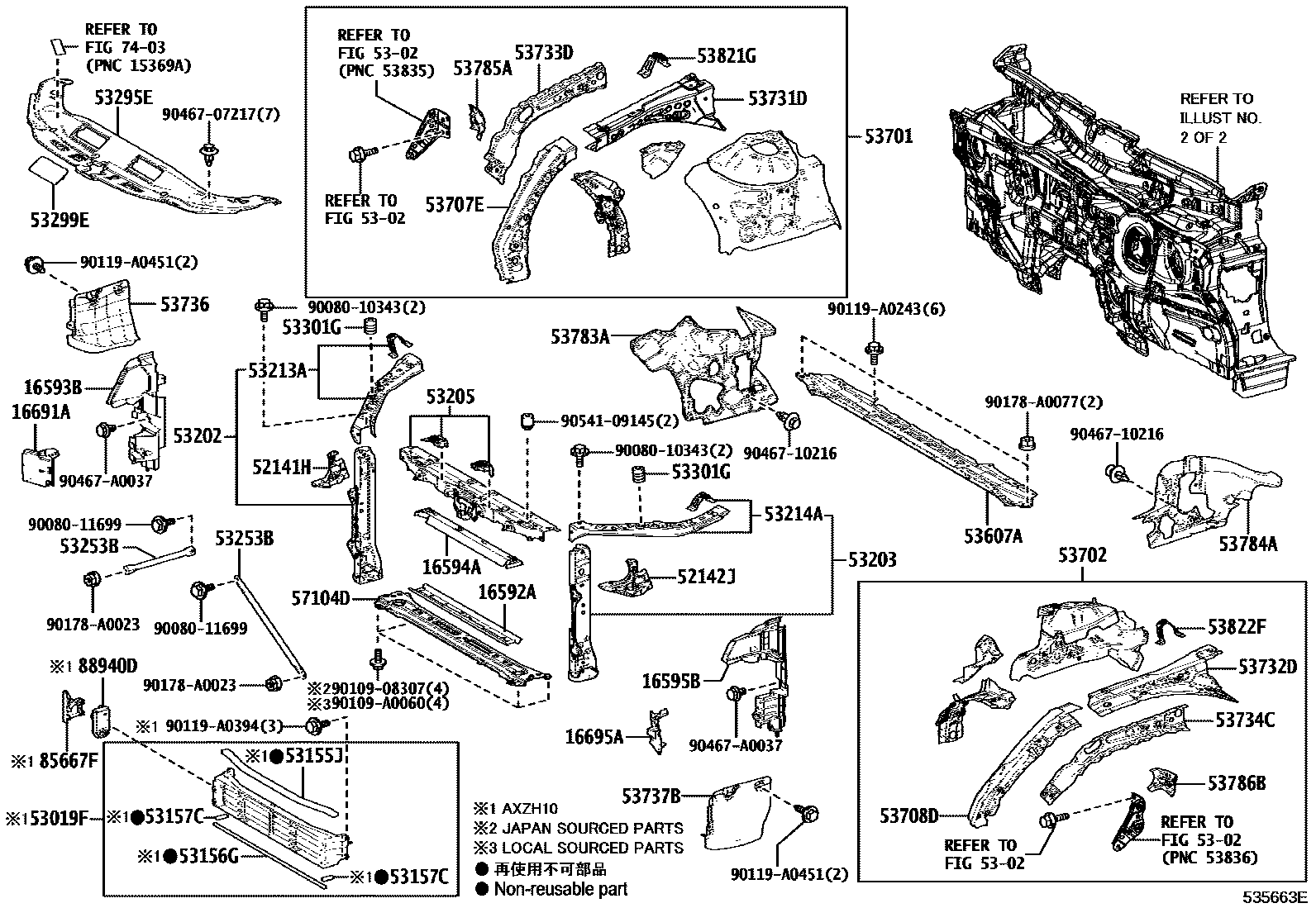

FRONT FENDER APRON & DASH PANEL
16592AGUIDE, RADIATOR AIR, NO.3
16593BGUIDE, RADIATOR AIR, NO.1 RH
16594AGUIDE, RADIATOR AIR, NO.2
16595BGUIDE, RADIATOR AIR, NO.1 LH
16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH
16695APLATE, RADIATOR SIDE AIR GUIDE, FRONT LH
52141HARM, FRONT BUMPER, UPPER RH
52142JARM, FRONT BUMPER, UPPER LH
5302
53155JSEAL, RADIATOR GRILLE, NO.1
53156GSEAL, RADIATOR GRILLE, NO.2
53157CSEAL, RADIATOR GRILLE, NO.3
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53213ASUPPORT, RADIATOR, UPPER RH
53214ASUPPORT, RADIATOR, UPPER LH
53253BBRACKET, RADIATOR MOUNTING, UPPER
53295ESEAL, COOL AIR INTAKE DUCT
53299EPLATE, COOL AIR INTAKE DUCT
53301GCUSHION, HOOD BUMPER
53607ABRACE SUB-ASSY, FRONT SUSPENSION, UPPER CENTER
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53707EAPRON SUB-ASSY, FENDER SIDE, RH
53708DAPRON SUB-ASSY, FENDER SIDE, LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
53736SEAL, FRONT FENDER APRON, RH
53737BSEAL, FRONT FENDER APRON, LH
53783AINSULATOR, APRON FRONT FENDER, RH
53784AINSULATOR, APRON FRONT FENDER, LH
53785AGUSSET, FRONT FENDER APRON, UPPER RH
53786BGUSSET, FRONT FENDER APRON, UPPER LH
53821GBRACKET, FRONT FENDER, REAR RH
53822FBRACKET, FRONT FENDER, REAR LH
57104DMEMBER SUB-ASSY, FRONT CROSS
7403
85667FCOVER, MOTOR
88940DACTUATOR ASSY, SWING GRILLE
9008010343
main90080-10343
9008011699
9010908307
90109A0060
main90109-A0060
90119A0243
main90119-A0243
90119A0394
main90119-A0394
90119A0451
main90119-A0451
90178A0023
main90178-A0023
90178A0077
main90178-A0077
9046707217
9046710216
90467A0037
main90467-A0037
9054109145
56 parts on this diagram · 5 diagrams in section
