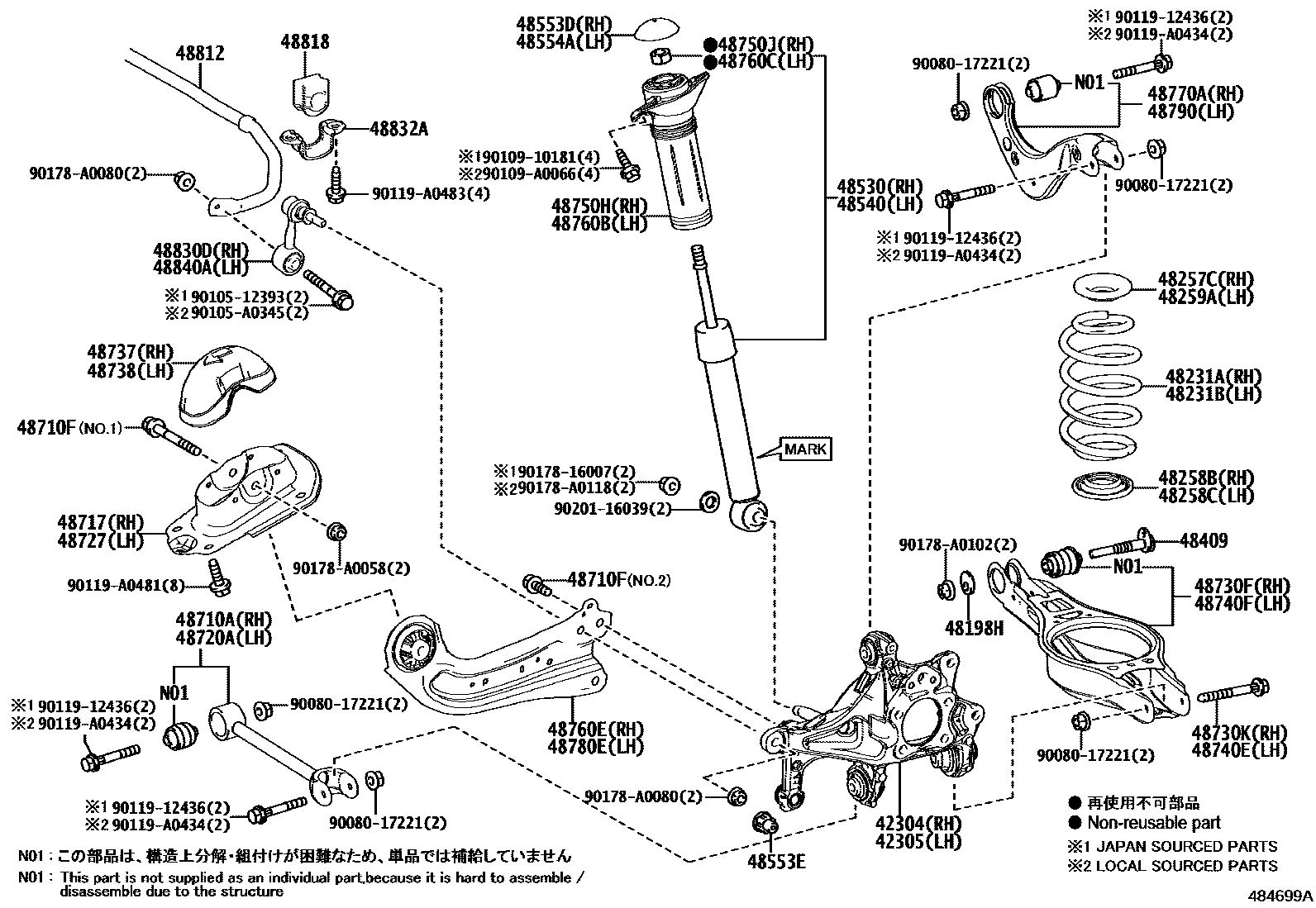

REAR SPRING & SHOCK ABSORBER
42304CARRIER SUB-ASSY, REAR AXLE, RH
42305CARRIER SUB-ASSY, REAR AXLE, LH
48198HCAM, CAMBER ADJUST, NO.2
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-33630
MARK 48530-33640
MARK 48530-06B30
MARK 48530-06B10
MARK 48530-06C30
MARK 48530-06B50
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-33630
MARK 48530-33640
MARK 48530-06B30
MARK 48530-06B10
MARK 48530-06C30
MARK 48530-06B50
48553DCAP, REAR SHOCK ABSORBER, RH
48553ECAP
48554ACAP, REAR SHOCK ABSORBER, LH
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
48710FBOLT(FOR REAR TRAILING ARM)
(J),NO.1:REFER ILL.
(J),NO.2:REFER ILL.
(L),NO.2:REFER ILL.
NO.1:REFER ILLUST.
(L),NO.1:REFER ILL.
NO.2:REFER ILLUST.
48717BRACKET, REAR SUSPENSION ARM, RH
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
48727BRACKET, REAR SUSPENSION ARM, LH
48730FARM ASSY, REAR SUSPENSION, NO.2 RH
(L)
(J)
48730KBOLT(FOR REAR SUSPENSION ARM NO.2 RH)
(J)
(L)
48737COVER, REAR SUSPENSION ARM, RH
48738COVER, REAR SUSPENSION ARM, LH
48740EBOLT(FOR REAR SUSPENSION ARM NO.2 LH)
(J)
(L)
48740FARM ASSY, REAR SUSPENSION, NO.2 LH
(L)
(J)
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
(L)
(J)
48760BSUPPORT ASSY REAR SUSPENSION, LH
48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
(L)
(J)
48760EARM ASSY, TRAILING, REAR RH
48770AARM ASSY, UPPER CONTROL, REAR RH
48780EARM ASSY, TRAILING, REAR LH
48790ARM ASSY, UPPER CONTROL, REAR LH
48812BAR, STABILIZER, REAR
48818BUSH, STABILIZER, REAR
48830DLINK ASSY, REAR STABILIZER, RH
48832ABRACKET, REAR STABILIZER BAR, NO.1
48840ALINK ASSY, REAR STABILIZER, LH
9008017221
main90080-17221
9010512393
main90105-12393
90105A0345
main90105-A0345
9010910181
main90109-10181
90109A0066
main90109-A0066
9011912436
main90119-12436
90119A0434
main90119-A0434
90119A0481
main90119-A0481
90119A0483
main90119-A0483
9017816007
main90178-16007
90178A0058
main90178-A0058
90178A0080
main90178-A0080
90178A0102
main90178-A0102
90178A0118
main90178-A0118
9020116039
main90201-16039
54 parts on this diagram · 3 diagrams in section
