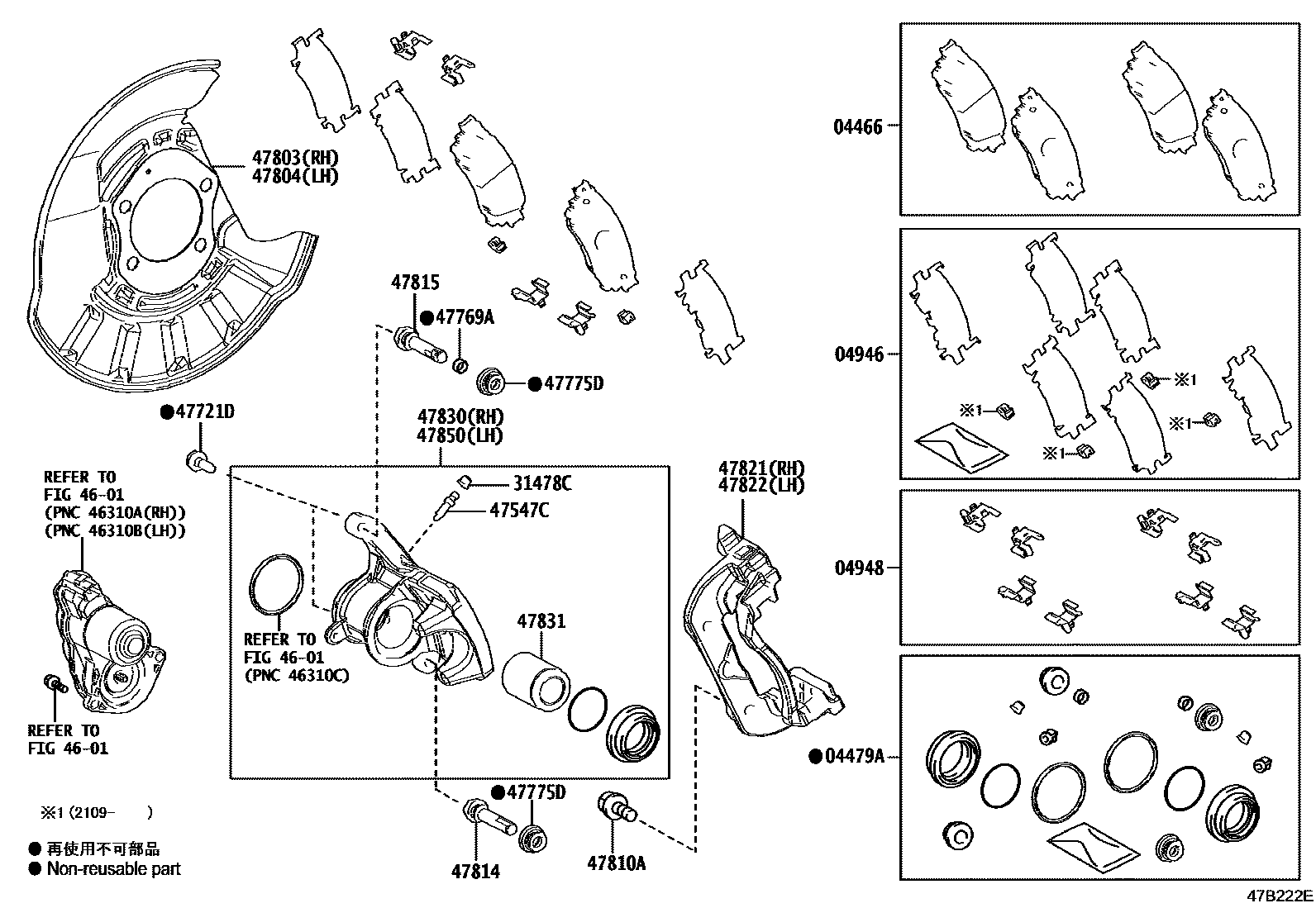

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-0E070iAXZA15,AXZH1#,GSZ10201808-202109

MARK AK NS554

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-0E110iAXZA15,AXZH1#,GSZ10201808-202109

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-02120iAXZA15,AXZH1#,GSZ10202109

main04946-33090iAXZA15,AXZH1#,GSZ10201808-202109

04948FITTING KIT, DISC BRAKE, REAR

main04948-33060iAXZA15,AXZH1#,GSZ10201808-202109

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iAXZA15,AXZH1#,GSZ10201808-202109

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iAXZA15,AXZH1#,GSZ10201808-202109

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA603iGSZ10201808-201812

*8-1.00PX23-12.5

sub90016-AA614

main90016-AA614iAXZA15,AXZH1#,GSZ10201812-202109

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-50010iAXZA15,AXZH1#,GSZ10201808-202109

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-06170iAXZA15,AXZH1#,GSZ10201808-202205

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47803-06010iAXZA15,AXZH1#,GSZ10201808-202109

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47804-06010iAXZA15,AXZH1#,GSZ10201808-202109

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90080-10395iAXZA15,AXZH1#,GSZ10201808-202109

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-0R050iAXZA15,AXZH1#,GSZ10201812-202109

main47814-78010iGSZ10201808-201812

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-0R050iAXZA15,AXZH1#,GSZ10201812-202109

main47815-78010iGSZ10201808-201812

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-06170iAXZA15,AXZH1#,GSZ10201808-202109

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-06160iAXZA15,AXZH1#,GSZ10201808-202109

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-06170iAXZA15,AXZH1#,GSZ10201808-202109

47831PISTON, REAR DISC BRAKE

main47831-06170iAXZA15,AXZH1#,GSZ10202109-202212

main47831-06171iAXZA15,AXZH1#,GSZ10202212

main47831-06180iAXZA15,AXZH1#,GSZ10201903-202109

main47831-78010iGSZ10201808-201903

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-06160iAXZA15,AXZH1#,GSZ10201808-202109

20 parts on this diagram · 1 diagram in section
