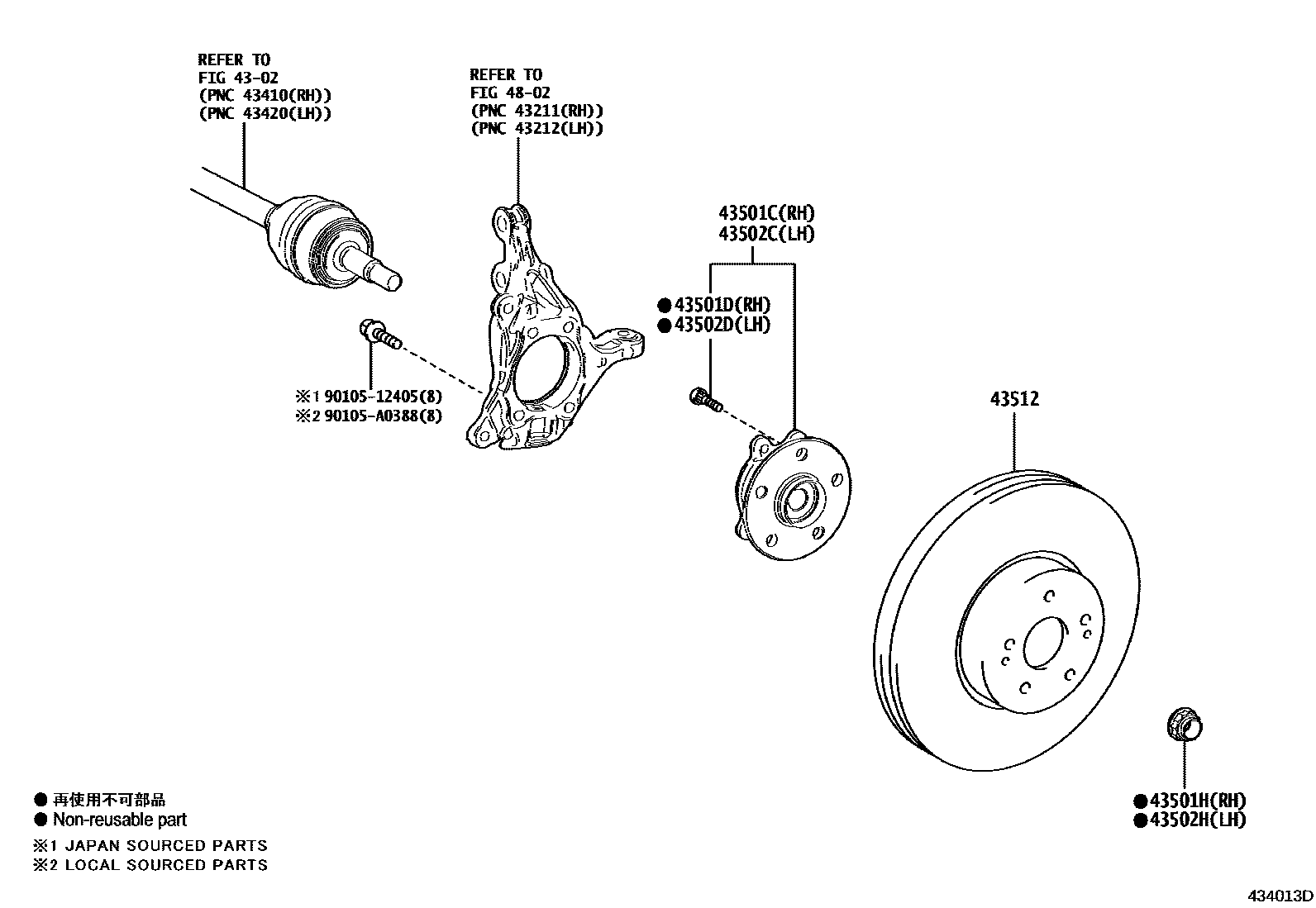

FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-06010iAXZA15202009-202307

main43550-06050iAXZH1#,GSZ10201808-202307

main43550-0R060iAXZA15202308

main43550-0R070iAXZH1#,GSZ10202308

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iAXZA15,AXZH1#,GSZ10201808-202109

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90080-17238iAXZA15,AXZH1#,GSZ10201808-202109

(L)

main90177-22001iAXZA15,AXZH1#,GSZ10201808-202109

(J)

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-06010iAXZA15202009-202307

main43550-06050iAXZH1#,GSZ10201808-202307

main43550-0R060iAXZA15202308

main43550-0R070iAXZH1#,GSZ10202308

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iAXZA15,AXZH1#,GSZ10201808-202109

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90080-17238iAXZA15,AXZH1#,GSZ10201808-202109

(L)

main90177-22001iAXZA15,AXZH1#,GSZ10201808-202109

(J)

43512DISC, FRONT

main43512-06200iAXZA15,AXZH1#,GSZ10201808-202109

4802

9010512405

main90105-12405

90105A0388

main90105-A0388

11 parts on this diagram · 1 diagram in section
