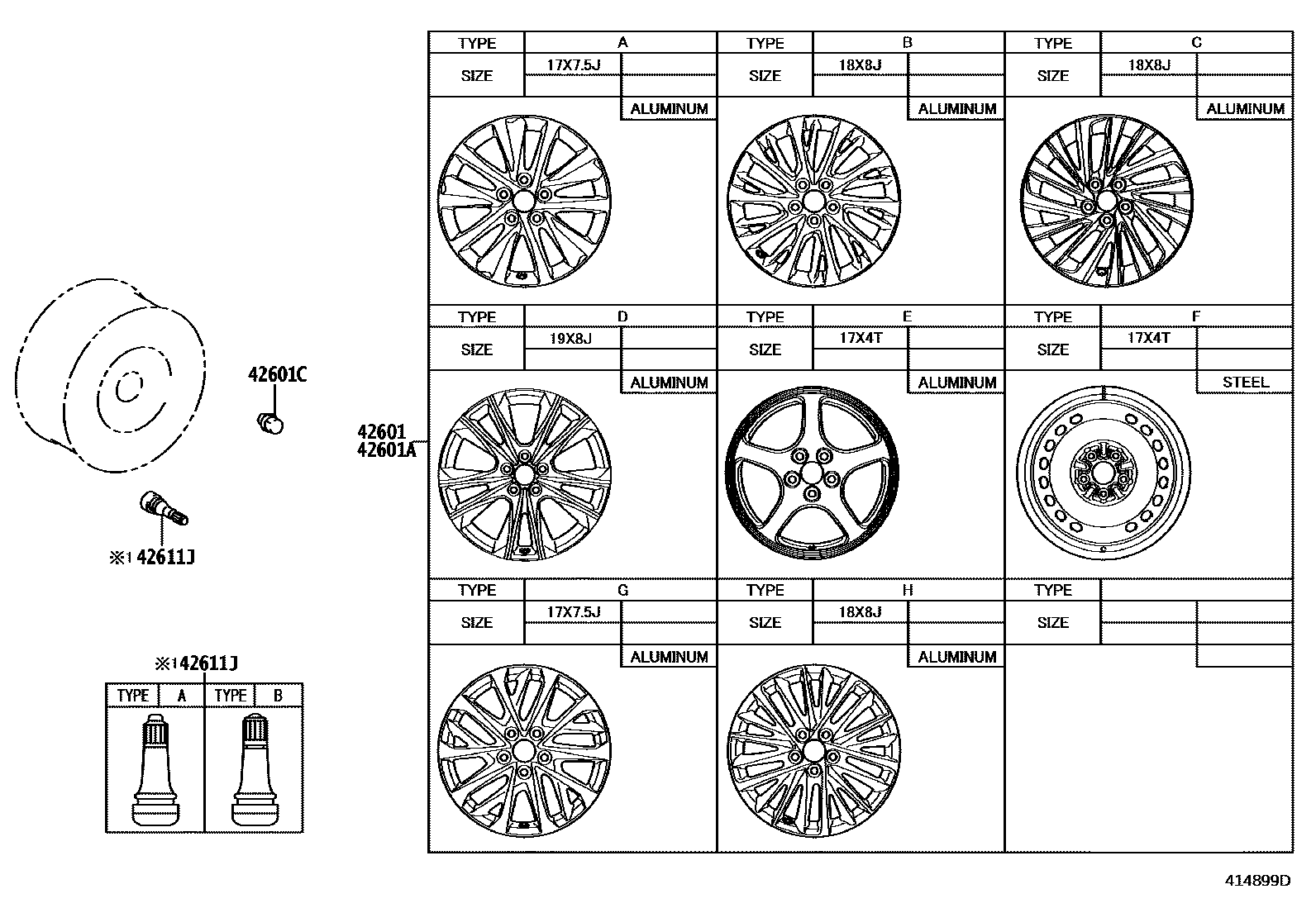

DISC WHEEL & WHEEL CAP

42601WHEEL, DISC

main42611-06A90i201808-202109

17X7.5J, #,TYPE A:REFER ILLUST.

sub42611-06B00

main42611-06B00i201808-202109

17X7.5J, #,CANADA SPEC,TYPE A:REFER ILLUST.

main42611-06B00i202009-202109

17X7.5J, #,TYPE A:REFER ILLUST.

main42611-06C50i201808-202109

18X8J, #,TIRE & DISC WHEEL-235/45R18,ALL SEASON TIRE,ALUMINUM(GRAY),TYPE B:REFER ILLUST.

sub42611-06D10

main42611-06D10i202009-202109

18X8J, #,TIRE & DISC WHEEL-235/45R18,ALL SEASON TIRE,ALUMINUM(GRAY),TYPE B:REFER ILLUST.

main42611-06D10i201808-202109

18X8J, #,CANADA SPEC&TIRE & DISC WHEEL-235/45R18,ALL SEASON TIRE,ALUMINUM(GRAY),TYPE B:REFER ILLUST.

main42611-06K60i202109

19X8J, #,TIRE & DISC WHEEL-235/40R19, ALL SEASON TIRE, FOR F SPORT,TYPE D:REFER ILLUST.

main42611-06K60i202009-202109

19X8J, #,TIRE & DISC WHEEL-235/40R19,ALL SEASON,FOR F SPORT SPECIAL,TYPE D:REFER ILLUST.

main42611-06K70i202109

19X8J, #,CANADA SPEC&TIRE & DISC WHEEL-235/40R19, ALL SEASON TIRE, FOR F SPORT,TYPE D:REFER ILLUST.

main42611-06K70i202209

19X8J, #,TIRE & DISC WHEEL-235/40R19, ALL SEASON TIRE, FOR F SPORT,TYPE D:REFER ILLUST.

main42611-06K70i202009-202109

19X8J, #,CANADA SPEC&TIRE & DISC WHEEL-235/40R19,ALL SEASON,FOR F SPORT SPECIAL,TYPE D:REFER ILLUST.

main42611-06L20i202109

17X7.5J,#,TYPE G:REFER ILLUST.

main42611-06L30i202109

17X7.5J,#,TYPE G:REFER ILLUST.

main42611-06L30i202109

17X7.5J,#,CANADA SPEC,TYPE G:REFER ILLUST.

main42611-06L40i202109

18X8J, #,TIRE & DISC WHEEL-235/45R18, ALL SEASON TIRE, ALUMI(GRAY),TYPE H:REFER ILLUST.

main42611-06L40i202109

18X8J, #,MEXICO SPEC&TIRE & DISC WHEEL-235/45R18, SUMMER TIRE, ALUMI(GRAY),TYPE H:REFER ILLUST.

main42611-06L50i202109

18X8J, #,CANADA SPEC&TIRE & DISC WHEEL-235/45R18, ALL SEASON TIRE, ALUMI(GRAY),TYPE H:REFER ILLUST.

main42611-06L50i202109

18X8J, #,TIRE & DISC WHEEL-235/45R18, ALL SEASON TIRE, ALUMI(GRAY),TYPE H:REFER ILLUST.

main42611-06N50i202307

18X8J, #,MEXICO SPEC&TIRE & DISC WHEEL- 235/45R18, SUMMER TIRE,SPUTTERTING,TYPE C:REFER ILLUST.

main42611-06N50i202307

18X8J, #,TIRE & DISC WHEEL- 235/45R18,ALL SEASON TIRE,SPUTTERING,TYPE C:REFER ILLUST.

main42611-06N60i202307

18X8J, #,TIRE & DISC WHEEL- 235/45R18,ALL SEASON TIRE,SPUTTERING,TYPE C:REFER ILLUST.

main42611-06N60i202307

18X8J, #,CANADA SPEC&TIRE & DISC WHEEL- 235/45R18,ALL SEASON TIRE,SPUTTERING,TYPEC:REFER ILLUST.

main4261A-06150i202109-202307

18X8J, #,MEXICO SPEC&TIRE & DISC WHEEL-235/45R18, SUMMER TIRE, ALUMI(SILVER),TYPEC:REFER ILLUST.

sub4261A-06160

main4261A-06150i202109-202307

18X8J, #,TIRE & DISC WHEEL-235/45R18,ALL SEASON TIRE,ALUMI(SILVER),TYPE C:REFER ILLUST.

sub4261A-06160

main4261A-06150i201808-202109

18X8J, #,TIRE & DISC WHEEL-235/45R18, ALL SEASON TIRE,ALUMI(SILVER),TYPE C:REFER ILLUST.

sub4261A-06160

main4261A-06160i202109-202307

18X8J, #,TIRE & DISC WHEEL-235/45R18,ALL SEASON TIRE,ALUMI(SILVER),TYPE C:REFER ILLUST.

main4261A-06160i201808-202109

18X8J, #,CANADA SPEC&TIRE & DISC WHEEL-235/45R18, ALL SEASON TIRE,ALUMI(SILVER),TYPE C:REFER ILLUST.

main4261A-06160i202109-202307

18X8J, #,CANADA SPEC&TIRE & DISC WHEEL-235/45R18,ALL SEASON TIRE,ALUMI(SILVER),TYPE C:REFER ILLUST.

main4261A-06160i202009-202109

18X8J, #,TIRE & DISC WHEEL-235/45R18, ALL SEASON TIRE,ALUMI(SILVER),TYPE C:REFER ILLUST.

main4261A-06190i201808-202109

19X8J, #,TIRE & DISC WHEEL-235/40R19, ALL SEASON TIRE, FOR F SPORT,TYPE D:REFER ILLUST.

sub4261A-06200

main4261A-06200i201808-202109

19X8J, #,CANADA SPEC&TIRE & DISC WHEEL-235/40R19, ALL SEASON TIRE, FOR F SPORT,TYPE D:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-06C40i202009-202109

17X4T,TYPE F:REFER ILLUST.

main4261B-06010i201808-202009

17X4T,TYPE E:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90084-94001i201808-202310

WHEEL LOCKS-WITH

sub90942-A1009

main90084-94001i201808-202109

WHEEL LOCKS-WITH&TIRE & DISC WHEEL-235/40R19, ALL SEASON TIRE, FOR F SPORT

sub90942-A1009

main90942-A1005i202009-202109

WHEEL LOCKS-WITH&TIRE & DISC WHEEL-235/40R19,ALL SEASON,FOR F SPORT SPECIAL

sub90942-A1010

main90942-A1005i202009-202109

TIRE & DISC WHEEL-235/40R19,ALL SEASON,FOR F SPORT SPECIAL

sub90942-A1010

main90942-A1005i202109-202310

WHEEL LOCKS-WITH&TIRE & DISC WHEEL-235/40R19, ALL SEASON TIRE, FOR F SPORT

sub90942-A1010

main90942-A1005i202109-202310

TIRE & DISC WHEEL-235/40R19, ALL SEASON TIRE, FOR F SPORT

sub90942-A1010

main90942-A1009i202311

WHEEL LOCKS-WITH

main90942-A1010i202311

TIRE & DISC WHEEL-235/40R19, ALL SEASON TIRE, FOR F SPORT

main90942-A1010i202311

WHEEL LOCKS-WITH&TIRE & DISC WHEEL-235/40R19, ALL SEASON TIRE, FOR F SPORT

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90080-45001i201808-202201

TYPE A:REFER ILLUST.

main90080-45006i201808-202201

TYPE B:REFER ILLUST.

main90080-45006i202201

4 parts on this diagram · 2 diagrams in section
