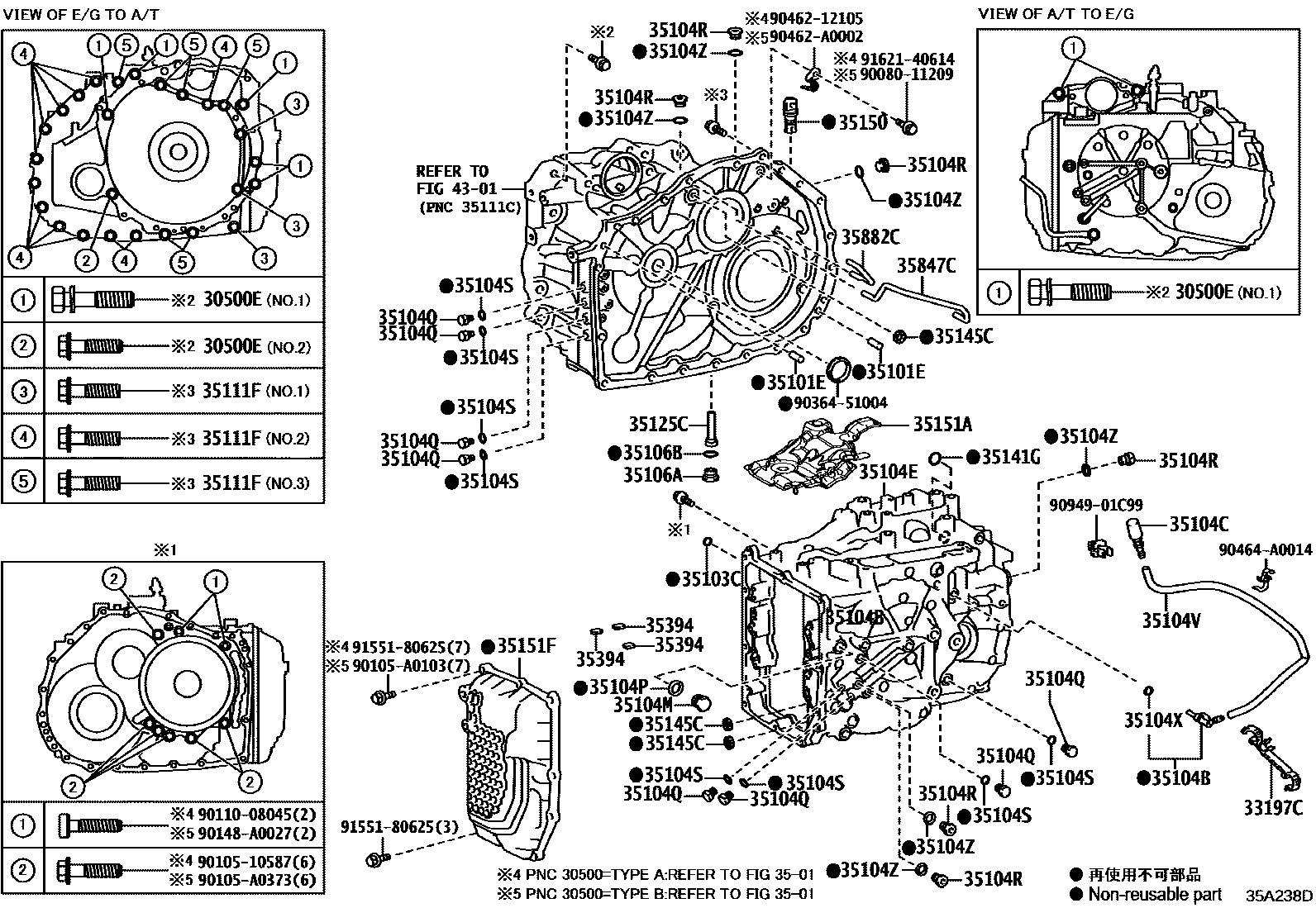

TRANSMISSION CASE & OIL PAN (ATM)

0001 1UA80E 0002 1UB80F

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90080-10338iGSZ10202109

*10-1.25PX41-30,NO.2:REFER ILLUST.

main90080-11310×7iGSZ10202109

*12-1.25PX55-30,(L),NO.1:REFER ILL.

main90105-10425iGSZ10202109

*10-1.25PX41-28,(J),NO.1:REFER ILL.

main90105-10591iAXZA15202009-202109

*10-1.25PX45-36,(J),NO.1:REFER ILL.

main90105-A0225×2iAXZA15202109

*12-1.25PX50-30,(L),NO.3:REFER ILL.

main90105-A0269iAXZA15202009-202109

*8-1.25PX35-22,(L),NO.2:REFER ILL.

main90105-A0393iAXZA15202109

*10-1.25PX45-36,(L),NO.1:REFER ILL.

main90119-12168×7iGSZ10202109

*12-1.25PX55-30,(J),NO.1:REFER ILL.

main91552-81250×2iAXZA15202009-202109

*12-1.25PX50-30,(J),NO.3:REFER ILL.

main91553-80830iAXZA15202109

*8-1.25PX35-22,(J),NO.2:REFER ILL.

33197CCLAMP, TRANSMISSION BREATHER

main33197-06010iAXZA15,GSZ10202109

(L)

main33197-33020iAXZA15,GSZ10202109

(J)

35101EPIN, STRAIGHT (FOR AUTOMATIC TRANSMISSION CASE)

main90250-10017×2iGSZ10202109-202210

TYPE B:REFER 35-01

main90250-10021×2iGSZ10202210

TYPE A:REFER 35-01

35103CRING, O

main90301-06021iAXZA15202109

main90301-10018iGSZ10202210

TYPE A:REFER 35-01

main90301-A0016iGSZ10201808-202109

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-0R010iAXZA15202009-202109

TYPE B:REFER 35-01

main35104-33140iAXZA15202009-202109

TYPE A:REFER 35-01

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03230iAXZA15202109

main90930-A3009iGSZ10201808-202109

35104CPLUG, BREATHER, NO.2 (ATM)

main90930-03216iAXZA15,GSZ10202109

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-06050iGSZ10201808-202109

main35104-48040iGSZ10202210

TYPE A:REFER 35-01

35104MPLUG, REFILL(ATM)

main90341-18064iGSZ10202210

TYPE A:REFER 35-01

main90341-A0003iAXZA15202109

35104PGASKET, REFILL PLUG(ATM)

main90430-18008iAXZA15202109

main90430-A0003iGSZ10201808-202109

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001×8iAXZA15202009-202109

TYPE A:REFER 35-01

main90341-A0001×8iAXZA15202009-202109

TYPE B:REFER 35-01

35104RPLUG, NO.2 (FOR TRANSAXLE CASE)

main90341-14015×6iAXZA15202009-202109

TYPE B:REFER 35-01,TYPE A:REFER 35-01

main90341-A0005×6iGSZ10201808-202109

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90080-30105×8iGSZ10202109-202210

TYPE B:REFER 35-01

main90301-06196×8iAXZA15202109

35104VHOSE (FOR BREATHER PLUG)

main35121-33060iGSZ10202109

main35121-33070iAXZA15202009-202109

35104XRING, O (FOR BREATHER PLUG)

main90301-08015iGSZ10202210

TYPE A:REFER 35-01

35104ZGASKET (FOR TRANSAXLE CASE)

main90430-14008×6iAXZA15202009-202109

TYPE B:REFER 35-01,TYPE A:REFER 35-01

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-18023iAXZA15202009-202109

TYPE A:REFER 35-01

main90341-A0009iAXZA15202109

35106BGASKET, DRAIN PLUG (ATM)

main90430-18008iAXZA15202109

main90430-A0003iGSZ10202109-202210

TYPE B:REFER 35-01

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-A0367×6iGSZ10201808-202109

*8-1.25PX40-22,NO.3:REFER ILLUST.

main90105-A0430×11iAXZA15202109

*8-1.25PX35-22,NO.2:REFER ILLUST.

main91551-00835×11iAXZA15202009-202109

*8-1.25PX35-22,T/P A:REF.35-01,NO.2

main91551-00840×9iAXZA15202009-202109

*8-1.25PX40-22,T/P A:REF.35-01,NO.1

35125CTUBE, TRANSMISSION OIL FILLER, NO.1

main35125-06120iAXZA15202109

main35125-06130iGSZ10201808-202109

main35125-33110iAXZA15202009-202109

TYPE A:REFER 35-01

main35125-48090iGSZ10202210

TYPE A:REFER 35-01

35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06021iGSZ10202210

TYPE A:REFER 35-01

main90301-10018iAXZA15202009-202109

TYPE B:REFER 35-01,TYPE A:REFER 35-01

35145CGASKET, TRANSAXLE CASE

main35145-07010×3iGSZ10201808-202102

main35145-33010×3iAXZA15202009-202102

TYPE B:REFER 35-01,TYPE A:REFER 35-01

main35145-33020×3iGSZ10202109-202210

TYPE B:REFER 35-01

35150PLUG ASSY, TRANSMISSION CASE

main35150-45010iAXZA15,GSZ10201808-202109

35151ACOVER, TRANSAXLE CASE, UPPER

main35151-45020iGSZ10201808-202109

35151FCOVER, TRANSMISSION CASE, SIDE

main35151-06010iAXZA15202109-202310

main35151-33161iAXZA15202009-202109

TYPE A:REFER 35-01

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-08010×3iGSZ10202109-202210

TYPE B:REFER 35-01

main35394-48010×3iGSZ10202210

TYPE A:REFER 35-01

35847CTUBE, TRANSMISSION LUBE APPLY

main35847-06010iGSZ10202109-202210

TYPE B:REFER 35-01

main35847-48030iAXZA15202009-202109

TYPE A:REFER 35-01

35882CTUBE, DIFFERENTIAL GEAR LUBE APPLY

main35882-06030iGSZ10201808-202109

main35882-48030iAXZA15202009-202109

TYPE A:REFER 35-01

4301

9008011209

main90080-11209

9010510587

main90105-10587

90105A0103

main90105-A0103

90105A0373

main90105-A0373

9011008045

main90110-08045

90148A0027

main90148-A0027

9036451004

main90364-51004

9046212105

main90462-12105

90462A0002

main90462-A0002

90464A0014

main90464-A0014

9094901C99

main90949-01C99

9155180625

main91551-80625

9162140614

main91621-40614

42 parts on this diagram · 2 diagrams in section
