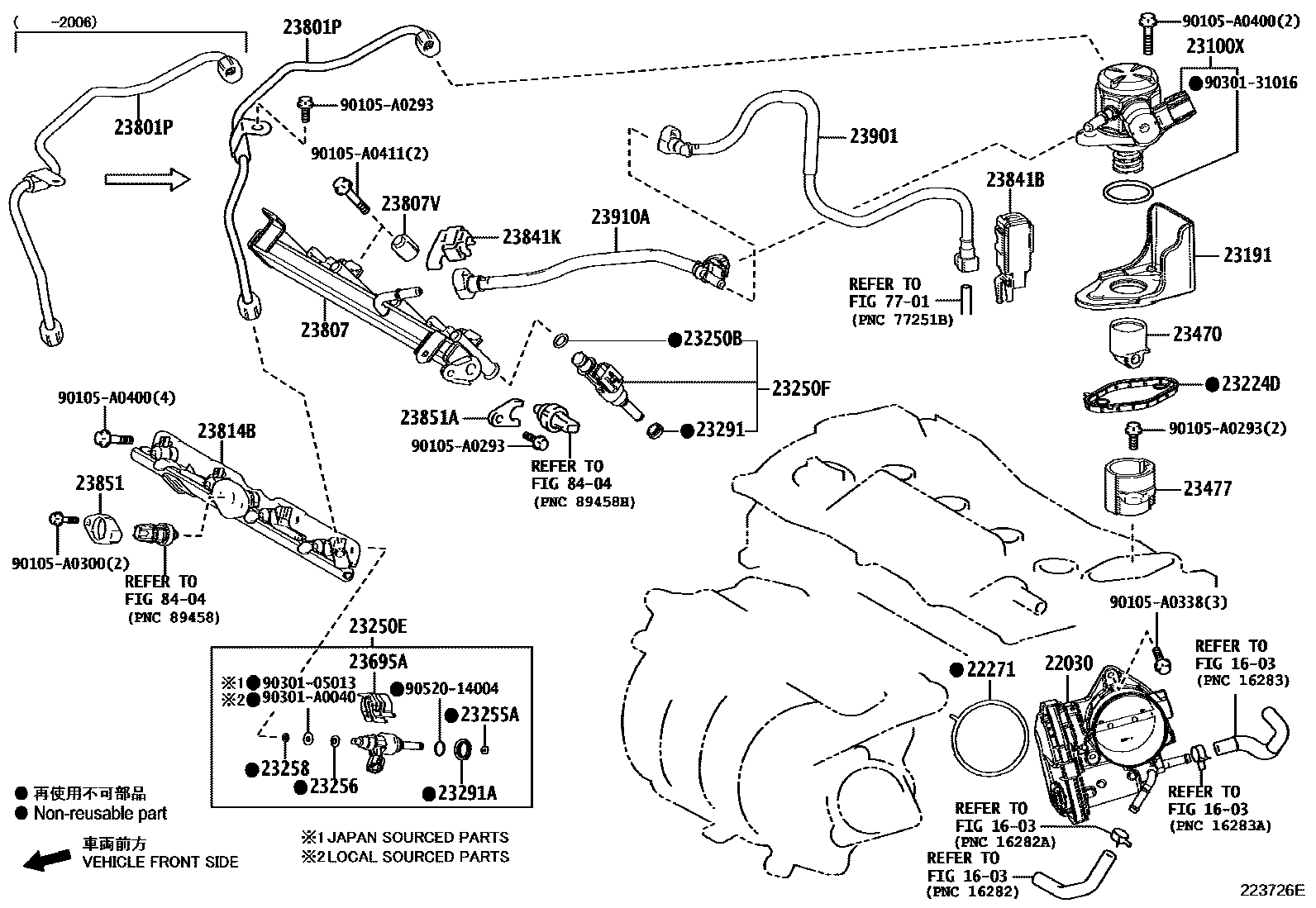

FUEL INJECTION SYSTEM
1603
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22271GASKET, THROTTLE BODY
(J)
(L)
23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)
(L)
(J)
23191FLANGE, FUEL PUMP
(J)
(L)
23250BRING, O(FOR FUEL INJECTOR)
NOK
(J),DENSO
(J)
(L)
(L),DENSO
23250EINJECTOR ASSY, FUEL(FOR DIRECT)
MARK 1,*402
MARK 2,*402
MARK 3,*402
MARK 6,*252
MARK 7,*252
MARK 8,*252
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
MARK 5,REFER REPAIR MANUAL
MARK 6,REFER REPAIR MANUAL
MARK 7,REFER REPAIR MANUAL
MARK 8,REFER REPAIR MANUAL
MARK 9,REFER REPAIR MANUAL
23250FINJECTOR ASSY, FUEL(FOR PORT)
MARK=23250-0P100
(J)
MARK=23250-31140
MARK=23250-31230
sub23209-F9080
(L)
23255ASEAL, FUEL INJECTOR
(J)
NOK
DENSO
(L)
23256RING, FUEL INJECTOR BACK-UP, NO.1
(J),DENSO
(J)
NOK
(L)
(L),DENSO
23258RING, FUEL INJECTOR BACK-UP, NO.3
NO.2
NO.1
23291INSULATOR, INJECTOR VIBRATION
(L)
(L)
(J)
(J)
23291AINSULATOR, INJECTOR VIBRATION
23470LIFTER ASSY, FUEL PUMP
(J)
(L)
23477GUIDE, FUEL PUMP LIFTER
(J)
(L)
23695ACLAMP, NOZZLE HOLDER
23801PPIPE SUB-ASSY, FUEL, NO.1
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23814BPIPE, FUEL DELIVERY
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23841KCLAMP, FUEL PIPE
23851HOLDER, FUEL PRESSURE SENSOR, NO.1
23851AHOLDER, FUEL PRESSURE SENSOR, NO.2
(J)
(L)
7701
8404
90105A0293
main90105-A0293
90105A0300
main90105-A0300
90105A0338
main90105-A0338
90105A0400
main90105-A0400
90105A0411
main90105-A0411
9030105013
9030131016
90301A0040
main90301-A0040
9052014004
38 parts on this diagram · 4 diagrams in section
