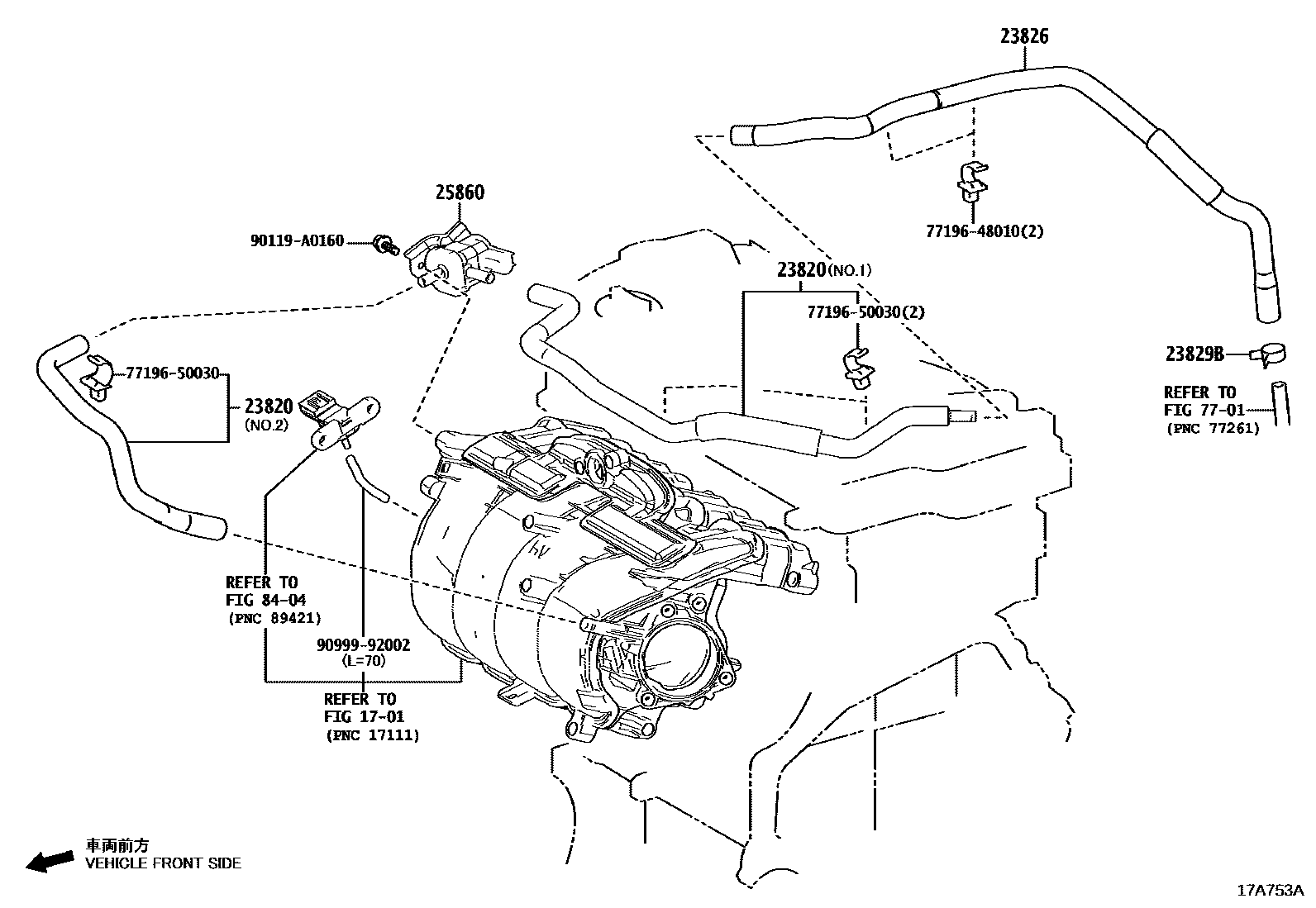

VACUUM PIPING

0001 1 0002 1 0003 1

1701

23820HOSE ASSY, FUEL VAPOR FEED

main23820-F0081iA25AFXS..AXZH1#201905-202109

NO.1:REFER ILLUST.

main23820-F0110iA25AFKS..AXZA15202009-202109

main23820-F0150iA25AFXS..AXZH1#201905-202109

NO.2:REFER ILLUST.

main23820-F0360iA25AFKS..AXZA15202109

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-0P270i2GRFKS..GSZ10201808-202109

NO.1

main23826-F0071iA25AFKS..AXZA15202009-202109

main23826-F0080iA25AFXS..AXZH1#201905-202109

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main90466-A0032iA25#..AXZA15,AXZH1#201905-202109

(L)

main96136-41901iA25#..AXZA15,AXZH1#201905-202109

(J)

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-0P030i2GRFKS..GSZ10201808-202109

NO.1

main25860-31120i2GRFKS..GSZ10201808-202109

NO.2

main25860-F0010iA25AFKS..AXZA15202009-202109

main25860-F0020iA25AFXS..AXZH1#201905-202109

7701

8404

7719648010CLAMP, EVAPORATION VENT TUBE, NO.1

main77196-48010

7719650030CLAMP, EVAPORATION VENT TUBE, NO.1

main77196-50030

90119A0160

main90119-A0160

9099992002

main90999-92002

11 parts on this diagram · 3 diagrams in section
