CRANKSHAFT & PISTON

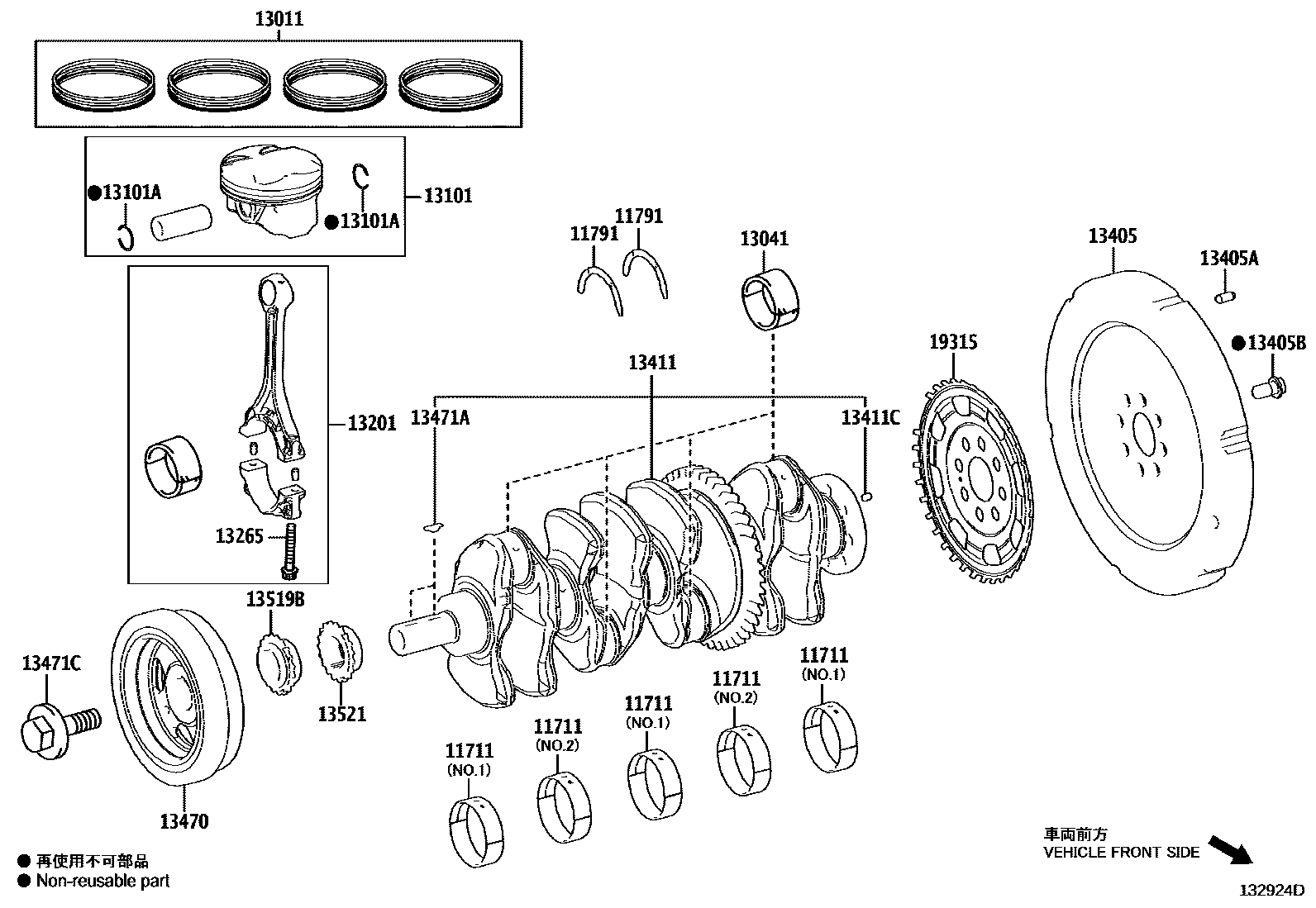

Parts diagram

11711BEARING, CRANKSHAFT

main11071-0P060-A1i201808-202109

MARK UPPER 1 LOWER 1,NO.2,(L):REFER R/M

main11071-0P060-A2i201808-202109

MARK UPPER 1 LOWER 2,NO.2,(L):REFER R/M

main11071-0P060-B2i201808-202109

MARK UPPER 2 LOWER 2,NO.2,(L):REFER R/M

main11071-0P060-B3i201808-202109

MARK UPPER 2 LOWER 3,NO.2,(L):REFER R/M

main11071-0P060-C3i201808-202109

MARK UPPER 3 LOWER 3,NO.2,(L):REFER R/M

main11071-0P060-C4i201808-202109

MARK UPPER 3 LOWER 4,NO.2,(L):REFER R/M

main11071-0P060-D4i201808-202109

MARK UPPER 4 LOWER 4,NO.2,(L):REFER R/M

main11071-0P060-D5i201808-202109

MARK UPPER 4 LOWER 5,NO.2,(L):REFER R/M

main11071-0P060-E5i201808-202109

MARK UPPER 5 LOWER 5,NO.2,(L):REFER R/M

main11071-31060-A1i201808-202109

MARK UPPER 1 LOWER 1,NO.2,(J):REFER R/M

main11071-31060-A2i201808-202109

MARK UPPER 1 LOWER 2,NO.2,(J):REFER R/M

main11071-31060-B2i201808-202109

MARK UPPER 2 LOWER 2,NO.2,(J):REFER R/M

main11071-31060-B3i201808-202109

MARK UPPER 2 LOWER 3,NO.2,(J):REFER R/M

main11071-31060-C3i201808-202109

MARK UPPER 3 LOWER 3,NO.2,(J):REFER R/M

main11071-31060-C4i201808-202109

MARK UPPER 3 LOWER 4,NO.2,(J):REFER R/M

main11071-31060-D4i201808-202109

MARK UPPER 4 LOWER 4,NO.2,(J):REFER R/M

main11071-31060-D5i201808-202109

MARK UPPER 4 LOWER 5,NO.2,(J):REFER R/M

main11071-31060-E5i201808-202109

MARK UPPER 5 LOWER 5,NO.2,(J):REFER R/M

main11701-0P060-A1i201808-202109

MARK UPPER 1 LOWER 1,NO.1,(L):REFER R/M

main11701-0P060-A2i201808-202109

MARK UPPER 1 LOWER 2,NO.1,(L):REFER R/M

main11701-0P060-B2i201808-202109

MARK UPPER 2 LOWER 2,NO.1,(L):REFER R/M

main11701-0P060-B3i201808-202109

MARK UPPER 2 LOWER 3,NO.1,(L):REFER R/M

main11701-0P060-C3i201808-202109

MARK UPPER 3 LOWER 3,NO.1,(L):REFER R/M

main11701-0P060-C4i201808-202109

MARK UPPER 3 LOWER 4,NO.1,(L):REFER R/M

main11701-0P060-D4i201808-202109

MARK UPPER 4 LOWER 4,NO.1,(L):REFER R/M

main11701-0P060-D5i201808-202109

MARK UPPER 4 LOWER 5,NO.1,(L):REFER R/M

main11701-0P060-E5i201808-202109

MARK UPPER 5 LOWER 5,NO.1,(L):REFER R/M

main11701-31100-A1i201808-202109

MARK UPPER 1 LOWER 1,NO.1,(J):REFER R/M

main11701-31100-A2i201808-202109

MARK UPPER 1 LOWER 2,NO.1,(J):REFER R/M

main11701-31100-B2i201808-202109

MARK UPPER 2 LOWER 2,NO.1,(J):REFER R/M

main11701-31100-B3i201808-202109

MARK UPPER 2 LOWER 3,NO.1,(J):REFER R/M

main11701-31100-C3i201808-202109

MARK UPPER 3 LOWER 3,NO.1,(J):REFER R/M

main11701-31100-C4i201808-202109

MARK UPPER 3 LOWER 4,NO.1,(J):REFER R/M

main11701-31100-D4i201808-202109

MARK UPPER 4 LOWER 4,NO.1,(J):REFER R/M

main11701-31100-D5i201808-202109

MARK UPPER 4 LOWER 5,NO.1,(J):REFER R/M

main11701-31100-E5i201808-202109

MARK UPPER 5 LOWER 5,NO.1,(J):REFER R/M

main11701-F0010-01i202001-202204

MARK 1,NO.1,REFER R/M

main11701-F0010-01i201905-202001

MARK 1,NO.1 OR NO.2,*RRM

main11701-F0010-01i202204

MARK 1,NO.1 & NO.2,REF. R/M

main11701-F0010-02i201905-202001

MARK 2,NO.1 OR NO.2,*RRM

main11701-F0010-02i202001-202204

MARK 2,NO.1,REFER R/M

main11701-F0010-02i202204

MARK 2,NO.1 & NO.2,REF. R/M

main11701-F0010-03i202001-202204

MARK 3,NO.1,REFER R/M

main11701-F0010-03i201905-202001

MARK 3,NO.1 OR NO.2,*RRM

main11701-F0010-03i202204

MARK 3,NO.1 & NO.2,REF. R/M

main11701-F0010-04i202204

MARK 4,NO.1 & NO.2,REF. R/M

main11701-F0010-04i202001-202204

MARK 4,NO.1,REFER R/M

main11701-F0010-04i201905-202001

MARK 4,NO.1 OR NO.2,*RRM

main11701-F0010-05i201905-202001

MARK 5,NO.1 OR NO.2,*RRM

main11701-F0010-05i202001-202204

MARK 5,NO.1,REFER R/M

main11701-F0010-05i202204

MARK 5,NO.1 & NO.2,REF. R/M

main11701-F0020-01i202001-202204

MARK 1,NO.2,REFER R/M

main11701-F0020-02i202001-202204

MARK 2,NO.2,REFER R/M

main11701-F0020-03i202001-202204

MARK 3,NO.2,REFER R/M

main11701-F0020-04i202001-202204

MARK 4,NO.2,REFER R/M

main11701-F0020-05i202001-202204

MARK 5,NO.2,REFER R/M

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-F0010i201905-202201

STD

main11791-F0040i202201

STD

13011RING SET, PISTON

main13011-0P051i201808-202109

STD,(L)

main13011-31230i201808-202306

STD,(J)

main13011-31290i202307

STD,(J)

main13011-F0040i201905-202109

STD

13041BEARING, CONNECTING ROD

main13041-0P090-01i201808-202109

MARK 1,(L),REFER R/M

main13041-0P090-02i201808-202109

MARK 2,(L),REFER R/M

main13041-0P090-03i201808-202109

MARK 3,(L),REFER R/M

main13041-0P090-04i201808-202109

MARK 4,(L),REFER R/M

main13041-31100-01i201808-202109

MARK 1,(J),REFER R/M

main13041-31100-02i201808-202109

MARK 2,(J),REFER R/M

main13041-31100-03i201808-202109

MARK 3,(J),REFER R/M

main13041-31100-04i201808-202109

MARK 4,(J),REFER R/M

main13041-F0010-01i201905-202109

MARK 1,REFER REPAIR MANUAL

main13041-F0010-02i201905-202109

MARK 2,REFER REPAIR MANUAL

main13041-F0010-03i201905-202109

MARK 3,REFER REPAIR MANUAL

13101PISTON SUB-ASSY, W/PIN

main13101-0P040i201808-202109

STD

main13101-25030i202009-202109

STD

main13101-25040i201905-202109

STD,(J)

main13101-31171-A0i201808-202109

STD,MARK A,(J),REFER R/M

main13101-31171-B0i201808-202109

STD,MARK B,(J),REFER R/M

main13101-31171-C0i201808-202109

STD,MARK C,(J),REFER R/M

main13101-F0020i201905-202109

STD,(L)

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-21024i201905-202109

main90520-22025i201808-202109

(J)

main90520-A0004i201808-202109

(L)

13201ROD SUB-ASSY, CONNECTING

main13201-09B90i201808-202109

(L),REFER R/M

main13201-39285-A0i201808-202109

MARK A,(J):REFER R/M

main13201-39285-B0i201808-202109

MARK B,(J):REFER R/M

main13201-39285-C0i201808-202109

MARK C,(J):REFER R/M

main13201-F9000-A0i201905-202109

MARK A,REFER REPAIR MANUAL

main13201-F9000-B0i201905-202109

MARK B,REFER REPAIR MANUAL

main13201-F9000-C0i201905-202109

MARK C,REFER REPAIR MANUAL

13265BOLT, CONNECTING ROD

main13265-28010i201808-201901

main13265-28020i201901-202109

main13265-F0010i201905-202109

13405FLYWHEEL SUB-ASSY

main13451-25030i201905-202109

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08120i201905-202109

L=18,OD=8

13405BBOLT, FLYWHEEL SETTING

main90105-12404i201905-202109

13411CRANKSHAFT

main13401-0P060i201808-202109

(L)

main13401-31070i202109-202307

main13401-31070i201808-202109

(J)

main13401-31070i202307

*497

main13401-31080i202307

*714

main13401-F0010i201905-202109

13411CPIN, STRAIGHT(FOR CRANKSHAFT)

main90250-06035i201905-202109

13470PULLEY ASSY, CRANKSHAFT

main13470-25010i202009-202109

main13470-25020i201905-202109

13471PULLEY, CRANKSHAFT

main13470-31060i201808-202109

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-04001i201905-202109

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-16020i201808-202109

main90119-A0265i201905-202109

13519BSPROCKET, OIL PUMP DRIVE

main13519-F0010i201905-202109

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-0P020i201808-202109

(L)

main13521-31070i201808-202109

(J)

main13521-F0010i201905-202109

19315PLATE, CRANK ANGLE SENSOR, NO.1

main19315-0P050i201808-202109

(L)

main19315-31020i201808-202109

(J)

main19315-F0010i201905-201911

main19315-F0011i201912-202109

20 parts on this diagram · 3 diagrams in section
