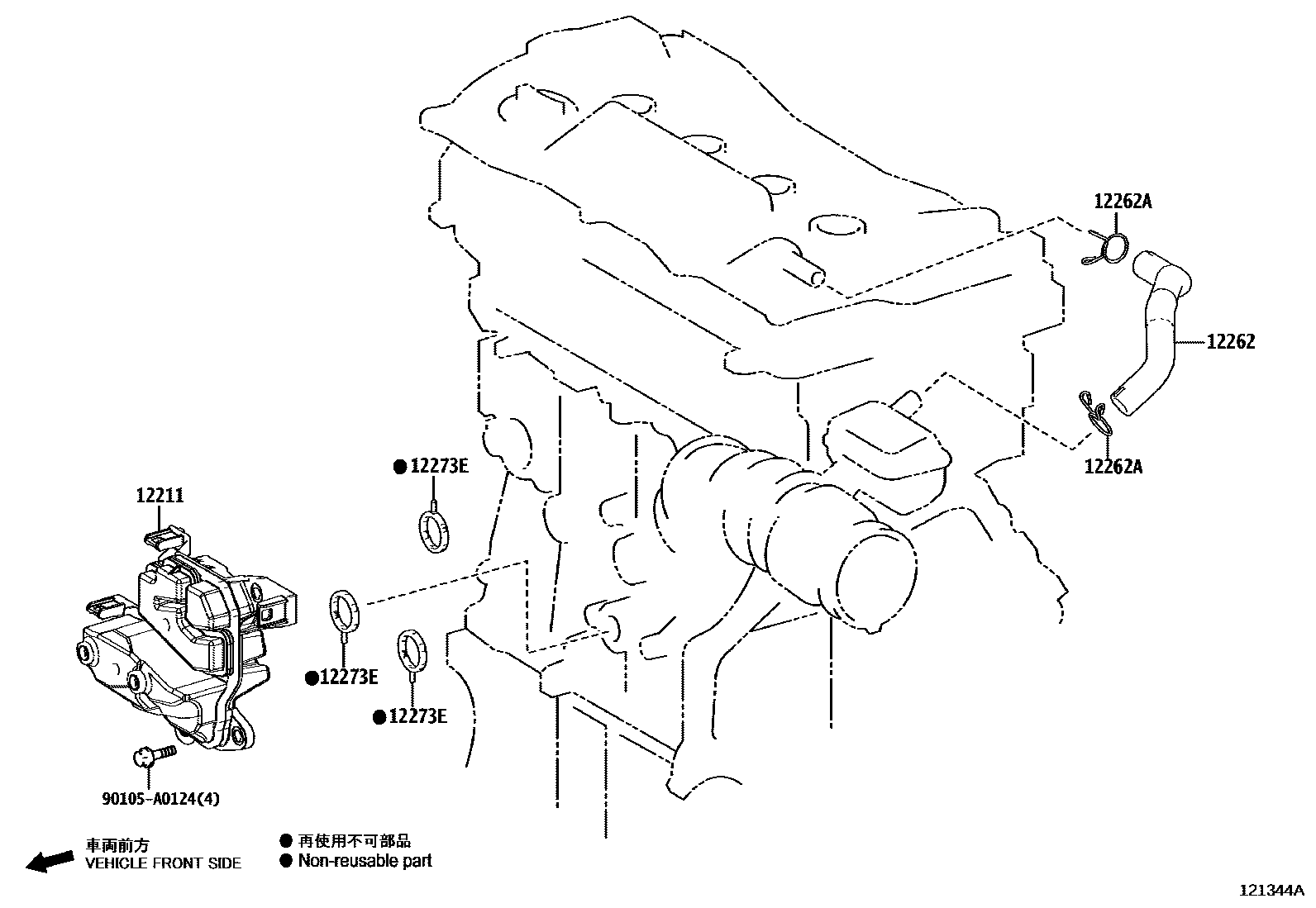

VENTILATION HOSE

0001 1 0002 1 0003 1

12211CASE, VENTILATION, NO.1

main12211-F0010iA25#..AXZA15,AXZH1#201905-202012

sub12211-F0011

main12211-F0011iA25#..AXZA15,AXZH1#202101-202208

12262HOSE, VENTILATION, NO.2

main12262-25030iA25AFKS..AXZA15202009-202109

main12262-25040iA25AFXS..AXZH1#201905-202109

main12262-31190i2GRFKS..GSZ10201808-202109

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90466-A0028iA25#..AXZA15,AXZH1#201905-202109

main90466-A0028i2GRFKS..GSZ10201808-202109

(L)

main90467-21004i2GRFKS..GSZ10201808-202109

(J)

12273EGASKET(FOR VENTILATION CASE)

main12273-24010iA25#..AXZA15,AXZH1#201905-202208

90105A0124

main90105-A0124

5 parts on this diagram · 3 diagrams in section
