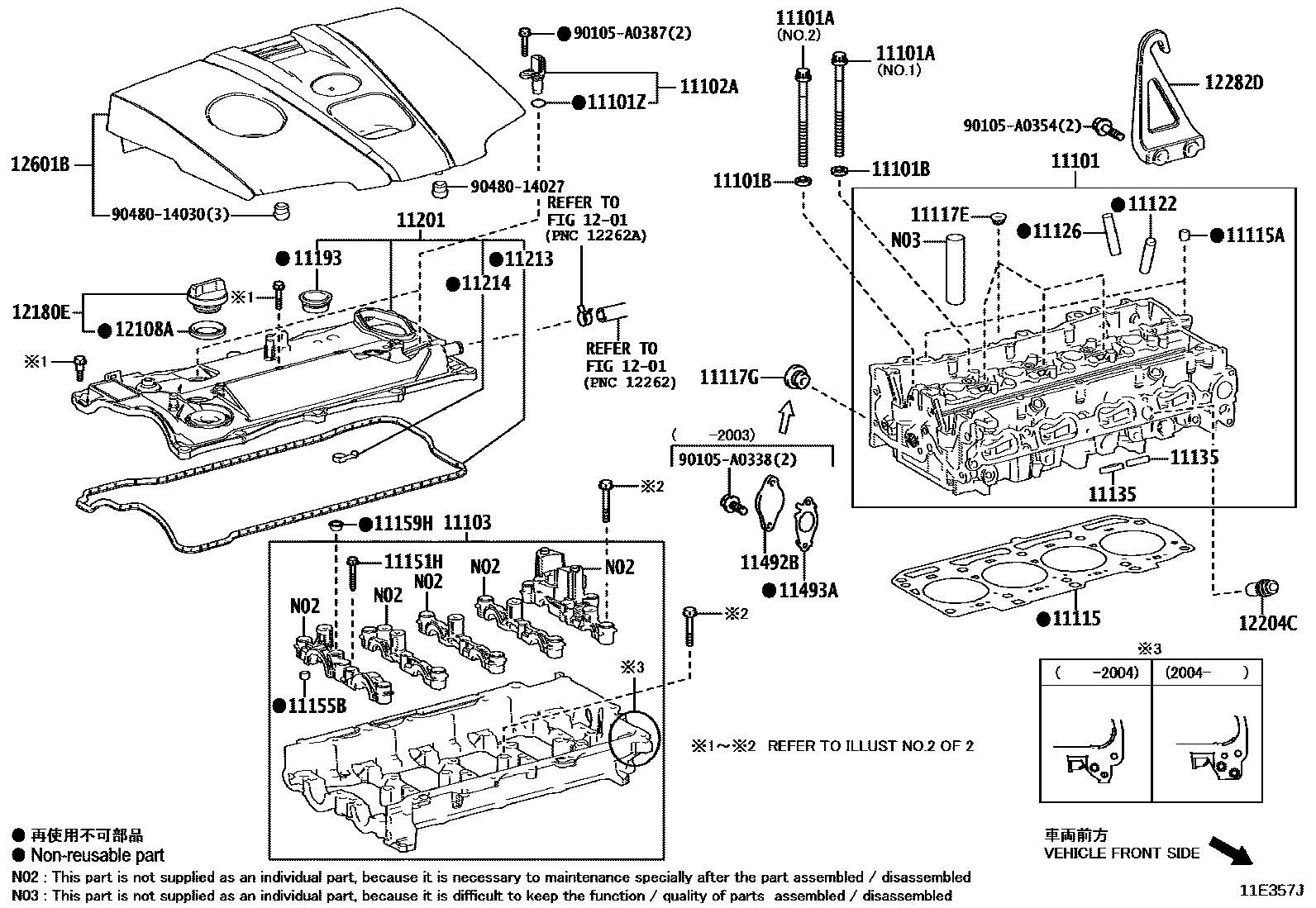

CYLINDER HEAD
11101ABOLT(FOR CYLINDER HEAD SET)
(J)
(L)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
(J)
(L)
11101ZO RING, CAM POSITION SENSOR
11102HEAD, CYLINDER, LH
*612
*497
11102ASENSOR, CAMSHAFT POSITION
11103HOUSING SUB-ASSY, CAMSHAFT
(L)
(J)
11115GASKET, CYLINDER HEAD
(L)
(J)
11115APIN, RING
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
(J)
(J)
(L)
(L)
11117GPLUG, W/HEAD STRAIGHT SCREW, NO.3
(J)
(L)
11122BUSH, INTAKE VALVE GUIDE
STD
STD
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
11135SEAT, EXHAUST VALVE
STD,(L)
STD
STD,(J)
STD,(J)
STD
STD,(L)
O/S 0.03,(L)
O/S 0.03
O/S 0.03,(J)
O/S 0.03
11151HBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)
(J)
(L)
11155BPIN, RING
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
(L)
(J)
11193GASKET, SPARK PLUG TUBE
(L)
(J)
11201COVER SUB-ASSY, CYLINDER HEAD
(L),TYPE A:REF ILL.
(L),TYPE B:REF ILL.
(J)
sub11201-F0012
sub11201-F0060
11213GASKET, CYLINDER HEAD COVER
(L)
(J)
11214GASKET, CYLINDER HEAD COVER, NO.2
(L)
(J)
(L)
11492BPLATE, WATER SEAL
11493AGASKET, WATER SEAL PLATE
1201
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
12180ECAP ASSY, OIL FILLER
12282DHANGER, ENGINE, NO.2
12601BCOVER SUB-ASSY, ENGINE, NO.1
(L),TYPE B:REF ILL.
(J)
(J),TYPE A:REF ILL.
(L)
90105A0338
main90105-A0338
90105A0354
main90105-A0354
90105A0387
main90105-A0387
9048014027
main90480-14027
9048014030
main90480-14030
35 parts on this diagram · 8 diagrams in section
