STANDARD TOOL

09110JACK ASSY

main09111-06120iAXZA15,AXZH1#,GSZ10201808-202109

09115ROD SUB-ASSY, JACK HANDLE

main09115-0R010iAXZA15,AXZH1#,GSZ10201808-202109

09120BAG, TOOL

main09120-48010

09130PLIERS

main09130-50040

09135DRIVER, SCREW

main99915-10700

09141SPANNER

main09141-60010

main09141-60020

09150WRENCH, HUB NUT BOX

main09150-06010iAXZA15,AXZH1#,GSZ10201808-202109

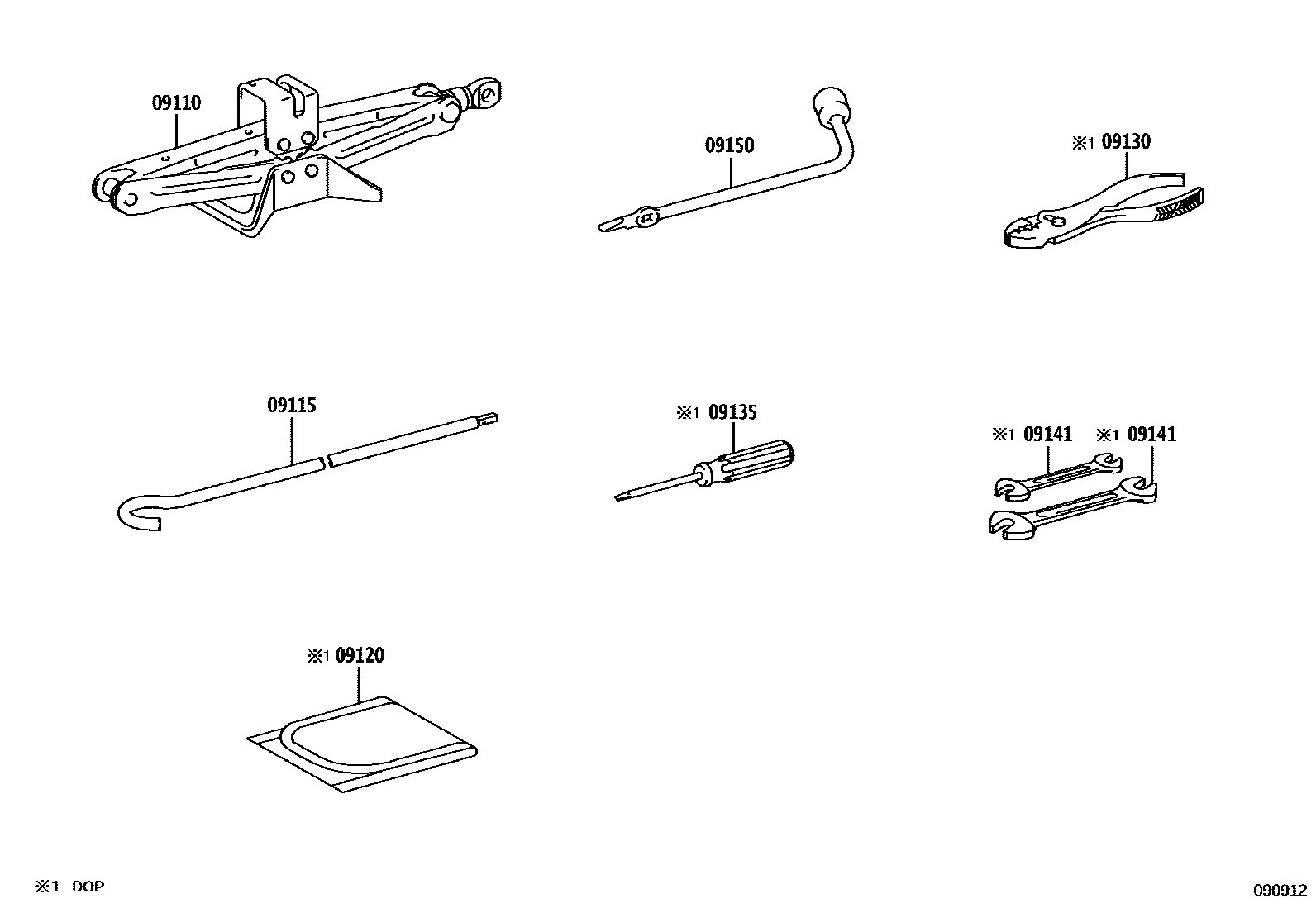

7 parts on this diagram · 1 diagram in section
