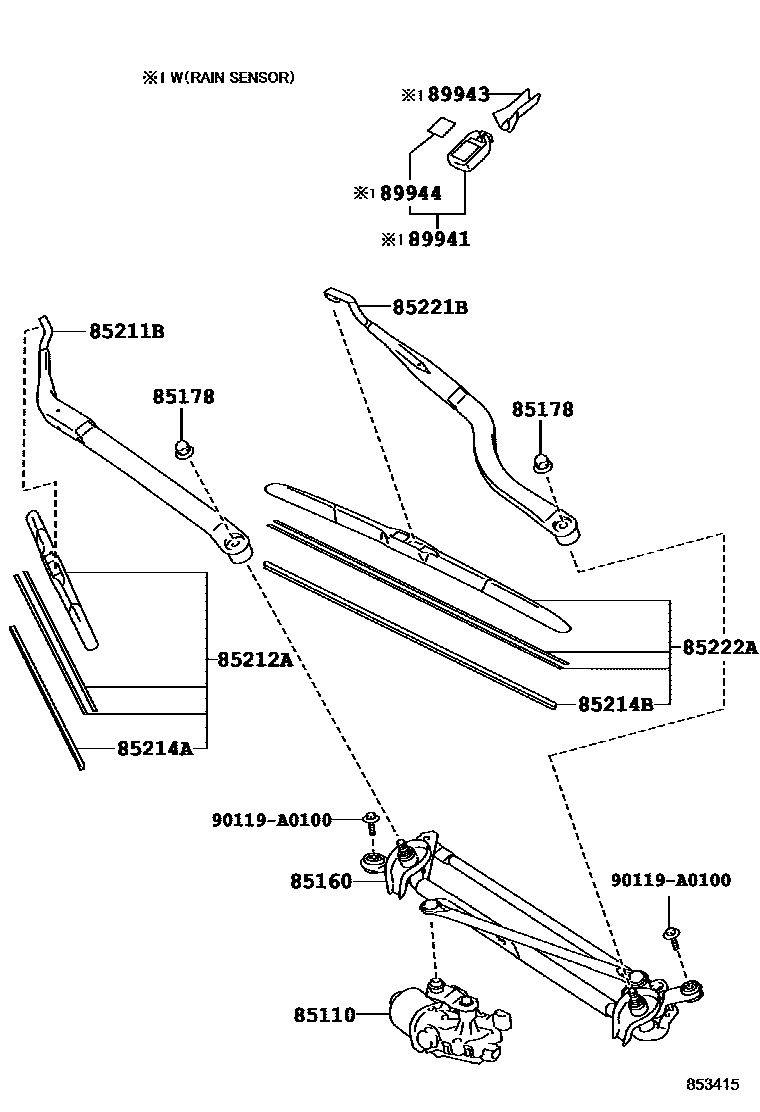

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-06200iGSV60201510

85160LINK ASSY, WINDSHIELD WIPER

main85150-06190iGSV60201510

85178NUT (FOR FRONT WIPER ARM SETTING)

main90080-17184iGSV60¥70201510

85211BARM, FRONT WIPER, RH

main85211-06180iGSV60201510

85212ABLADE, FR WIPER, RH

main85212-06180iGSV60201510

85214ARUBBER, WIPER, RH

main85214-06100iGSV60¥800201510

sub85214-0E130

85214BRUBBER, WIPER, LH

main85214-0E151iGSV60¥990201609

main85214-0T050iGSV60201510-201608

85221BARM, FRONT WIPER, LH

main85221-06180iGSV60201510

85222ABLADE, FR WIPER, LH

main85222-06180iGSV60201510

89941SENSOR, RAIN

main89941-52010¥12,500

89943COVER, RAIN SENSOR

main89943-33050¥1,400

89944TAPE, RAIN SENSOR

main89944-42010¥1,490

90119A0100

main90119-A0100

13 parts on this diagram · 1 diagram in section
