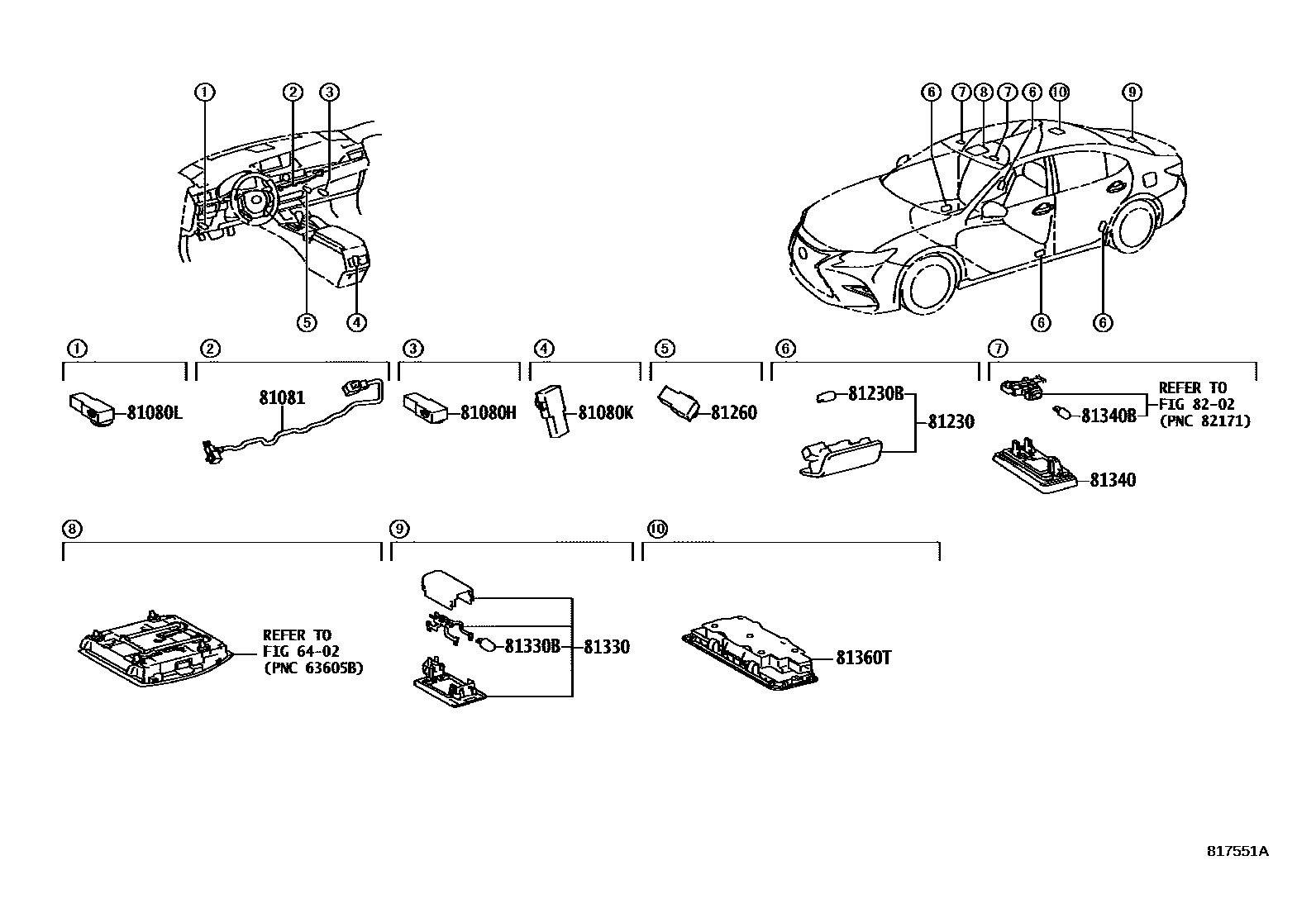

INTERIOR LAMP
6402
81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080KLAMP ASSY, CONSOLE BOX ILLUMINATION
sub81080-33290
81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81081LAMP SUB-ASSY, INTERIOR ILLUMINATION
DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP)
81230LAMP ASSY, COURTESY
81230BBULB(FOR COURTESY LAMP)
12V 5W
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 5W
81340BBULB (FOR VANITY LAMP)
12V 8W
81360TLAMP ASSY, SPOT
ECRU,TRIM0#,41,5#
MOON STONE,TRIM1#,2#,40
8202
14 parts on this diagram · 1 diagram in section
