REAR COMBINATION LAMP
52562ERETAINER, REAR BUMPER, UPPER RH
52563DRETAINER, REAR BUMPER, UPPER LH
6101
81496GUIDE, REAR COMBINATION LAMP
81496BGUIDE, REAR LAMP
81550LBULB, REAR TURN SIGNAL LAMP
12V 21W,AMBER
81550NBULB, BACK UP LAMP
12V 16W
81554GASKET, REAR COMBINATION LAMP BODY, RH
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81558LPROTECTOR, REAR COMBINATION LAMP, RH
81564GASKET, REAR COMBINATION LAMP BODY, LH
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81568JPROTECTOR, REAR COMBINATION LAMP, LH
81584AGASKET, REAR LAMP RH
81585CSOCKET & WIRE, REAR LAMP, RH
81588PROTECTOR, REAR LAMP, LH
81588APROTECTOR, REAR LAMP, RH
81589BCOVER, REAR COMBINATION BACK, RH
81594AGASKET, REAR LAMP LH
81595SOCKET & WIRE, REAR LAMP, LH
81599BCOVER, REAR COMBINATION BACK, LH
9015960500
main90159-60500
9015960602
main90159-60602
9017605018
main90176-05018
9017905102
main90179-05102
9018906148
main90189-06148

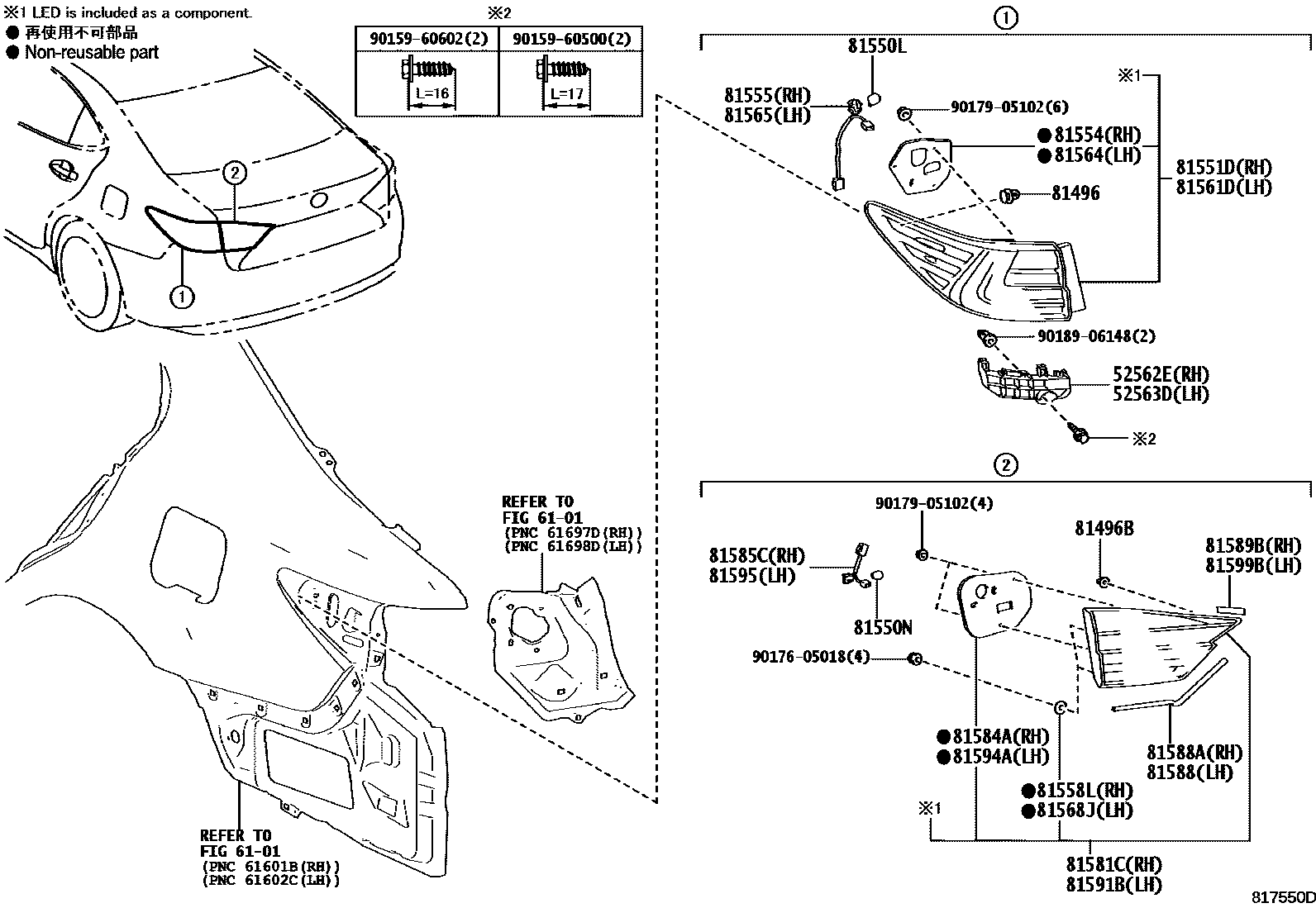

30 parts on this diagram · 1 diagram in section
