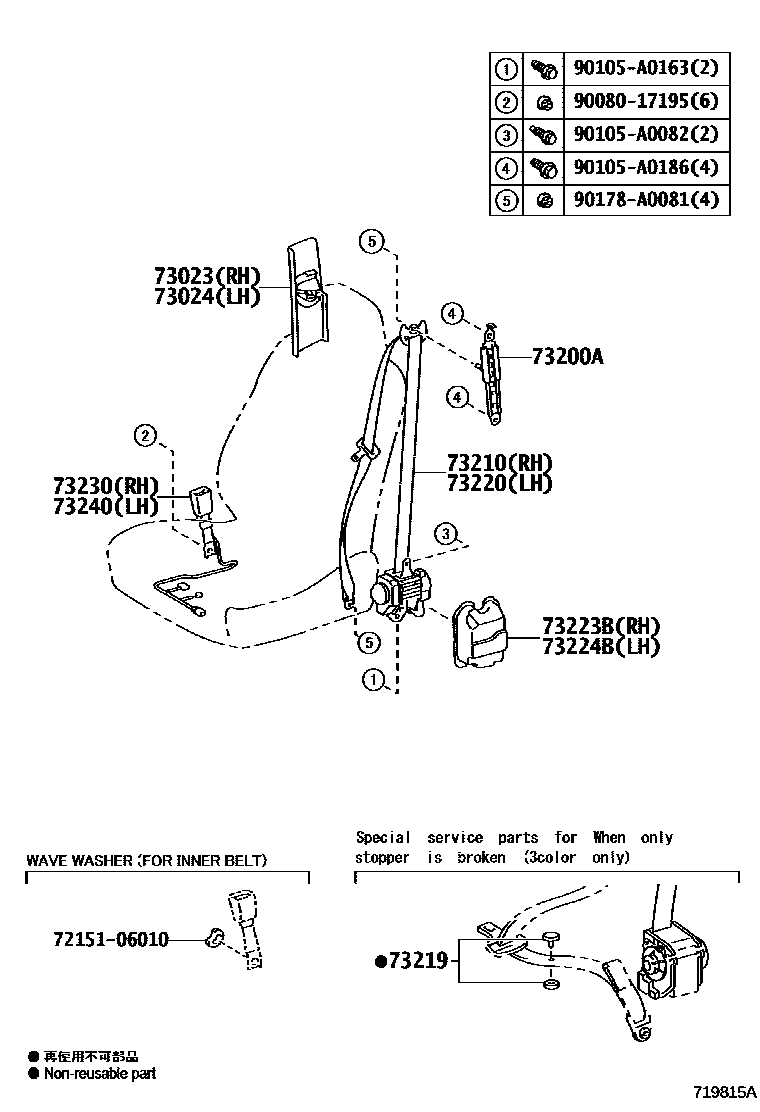

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-06070-A3iGSV60201510-201807

ECRU,TRIM0#,41,5#

main73023-06070-B3iGSV60201510-201807

MOON STONE,TRIM1#,2#,40

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-06070-A3iGSV60201510-201807

ECRU,TRIM0#,41,5#

main73024-06070-B3iGSV60201510-201807

MOON STONE,TRIM1#,2#,40

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-0C020iGSV60201510

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-06400-A0iGSV60201510-201807

IVORY,TRIM0#

main73210-06400-A1iGSV60201510-201807

NOBLE BROWN,TRIM41,5#

main73210-06400-B0iGSV60201510-201807

BLACK,TRIM1#,2#,40

73219STOPPER, TONGUE PLATE

main73219-02010iGSV60201510

BLACK

main73219-02020iGSV60201510

GRAY

main73219-02030iGSV60201510

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-06370-A0iGSV60201510-201807

IVORY,TRIM0#

main73220-06370-A1iGSV60201510-201807

NOBLE BROWN,TRIM41,5#

main73220-06370-B0iGSV60201510-201807

BLACK,TRIM1#,2#,40

73223BCOVER, FRONT SEAT BELT RETRACTOR, RH

main73223-06080iGSV60201510

73224BCOVER, FRONT SEAT BELT RETRACTOR, LH

main73224-06010iGSV60201510

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-06730-C0iGSV60201510-201807

BLACK,TRIM1#,2#,4#

main73230-06730-E0iGSV60201510-201807

NOBLE BROWN,TRIM0#,5#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-06720-C0iGSV60201510-201807

BLACK,TRIM1#,2#,4#

main73230-06720-E0iGSV60201510-201807

NOBLE BROWN,TRIM0#,5#

7215106010RAIL, SEAT TRACK, LOWER RH

main72151-06010

9008017195

main90080-17195

90105A0082

main90105-A0082

90105A0163

main90105-A0163

90105A0186

main90105-A0186

90178A0081

main90178-A0081

16 parts on this diagram · 2 diagrams in section
