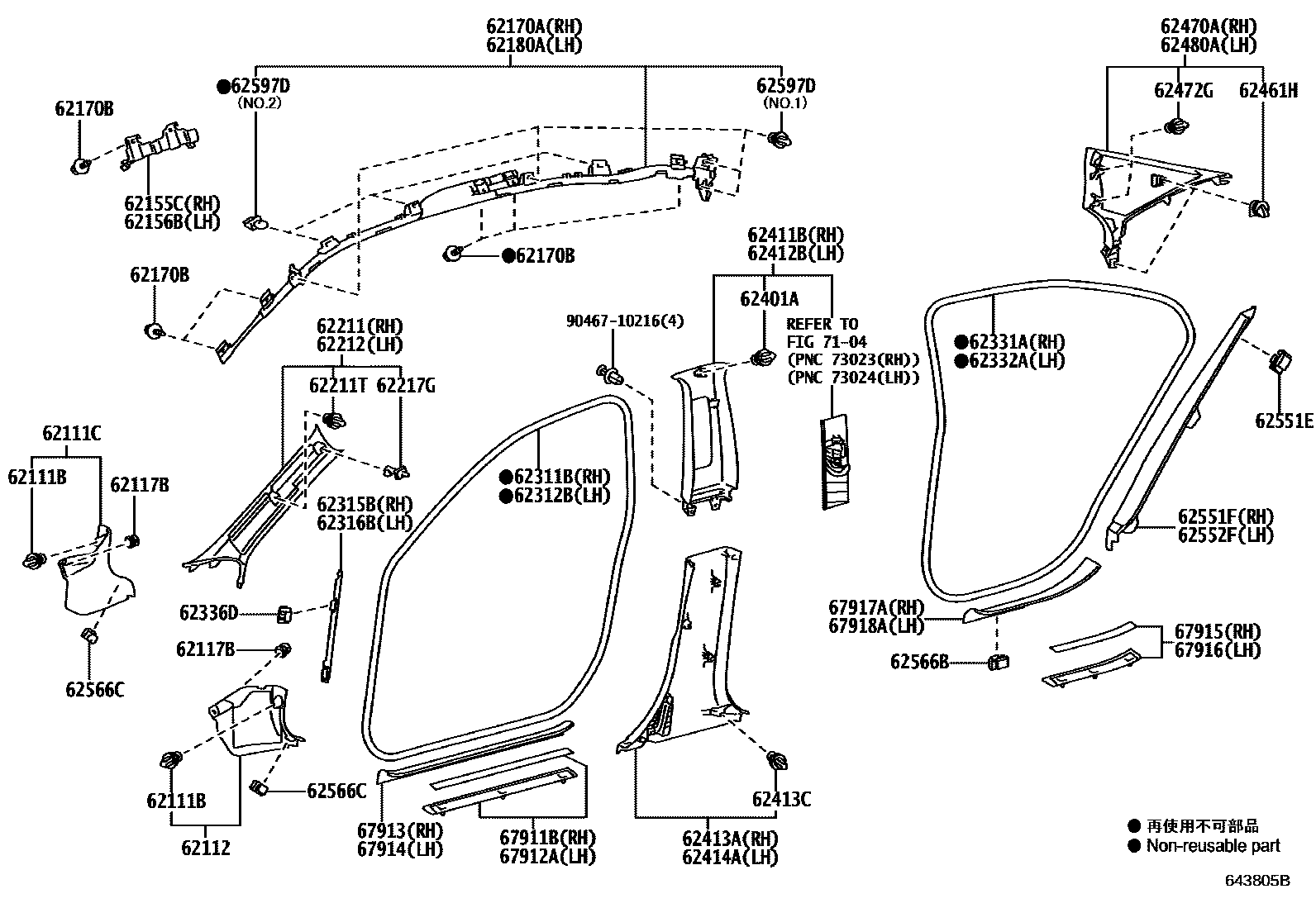

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62111BCLIP(FOR COWL SIDE TRIM)
62111CBOARD, COWL SIDE TRIM, RH
BLACK,TRIM1#,2#,40
NOBLE BROWN,TRIM0#,41,5#
62112BOARD, COWL SIDE TRIM, LH
BLACK,TRIM1#,2#,40
NOBLE BROWN,TRIM0#,41,5#
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
62155CBRACKET, CURTAIN SHIELD AIRBAG, RH
62156BBRACKET, CURTAIN SHIELD AIRBAG, LH
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
62170BBOLT, W/WASHER
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
62211GARNISH, FRONT PILLAR, RH
ECRU,TRIM0#,41,5#
MOON STONE,TRIM1#,2#,40
62211TCLIP(FOR FRONT PILLAR GARNISH)
62212GARNISH, FRONT PILLAR, LH
ECRU,TRIM0#,41,5#
MOON STONE,TRIM1#,2#,40
62217GCLIP, FRONT PILLAR GARNISH
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62315BCOVER, FRONT DOOR OPENING TRIM, RH
BLACK,TRIM1#,2#,40
NOBLE BROWN,TRIM0#,41,5#
62316BCOVER, FRONT DOOR OPENING TRIM, LH
BLACK,TRIM1#,2#,40
NOBLE BROWN,TRIM0#,41,5#
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62336DCLAMP
62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)
62411BGARNISH, CENTER PILLAR, UPPER RH
ECRU,TRIM0#,41,5#
MOON STONE,TRIM1#,2#,40
62412BGARNISH, CENTER PILLAR, UPPER LH
ECRU,TRIM0#,41,5#
MOON STONE,TRIM1#,2#,40
62413AGARNISH, CENTER PILLAR, LOWER RH
BLACK,TRIM1#,2#,40
NOBLE BROWN,TRIM0#,41,5#
62413CCLIP (FOR CENTER LOWER GARNISH)
62414AGARNISH, CENTER PILLAR, LOWER LH
BLACK,TRIM1#,2#,40
NOBLE BROWN,TRIM0#,41,5#
62461HCLIP (FOR ROOF SIDE INNER GARNISH)
62470AGARNISH ASSY, ROOF SIDE, INNER RH
ECRU,TRIM0#,41,5#
MOON STONE,TRIM1#,2#,40
62472GCLIP (FOR ROOF SIDE GARNISH)
GREEN
NATURAL
62480AGARNISH ASSY, ROOF SIDE, INNER LH
ECRU,TRIM0#,41,5#
MOON STONE,TRIM1#,2#,40
62551ECLIP(FOR REAR SEAT SIDE GARNISH)
62551FGARNISH, REAR SEAT SIDE, RH
BLACK,TRIM1#,2#,40
NOBLE BROWN,TRIM0#,41,5#
62552FGARNISH, REAR SEAT SIDE, LH
BLACK,TRIM1#,2#,40
NOBLE BROWN,TRIM0#,41,5#
62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1
62566CCLAMP, COWL SIDE TRIM
62597DCLIP
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH
67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH
67913PLATE, FRONT DOOR SCUFF, RH
BLACK,TRIM1#,2#,40
NOBLE BROWN,TRIM0#,41,5#
67914PLATE, FRONT DOOR SCUFF, LH
BLACK,TRIM1#,2#,40
NOBLE BROWN,TRIM0#,41,5#
67915PLATE, REAR DOOR SCUFF, OUTSIDE RH
67916PLATE, REAR DOOR SCUFF, OUTSIDE LH
67917APLATE, REAR DOOR SCUFF, RH
BLACK,TRIM1#,2#,40
NOBLE BROWN,TRIM0#,41,5#
67918APLATE, REAR DOOR SCUFF, LH
BLACK,TRIM1#,2#,40
NOBLE BROWN,TRIM0#,41,5#
7104
9046710216
main90467-10216
46 parts on this diagram · 1 diagram in section
