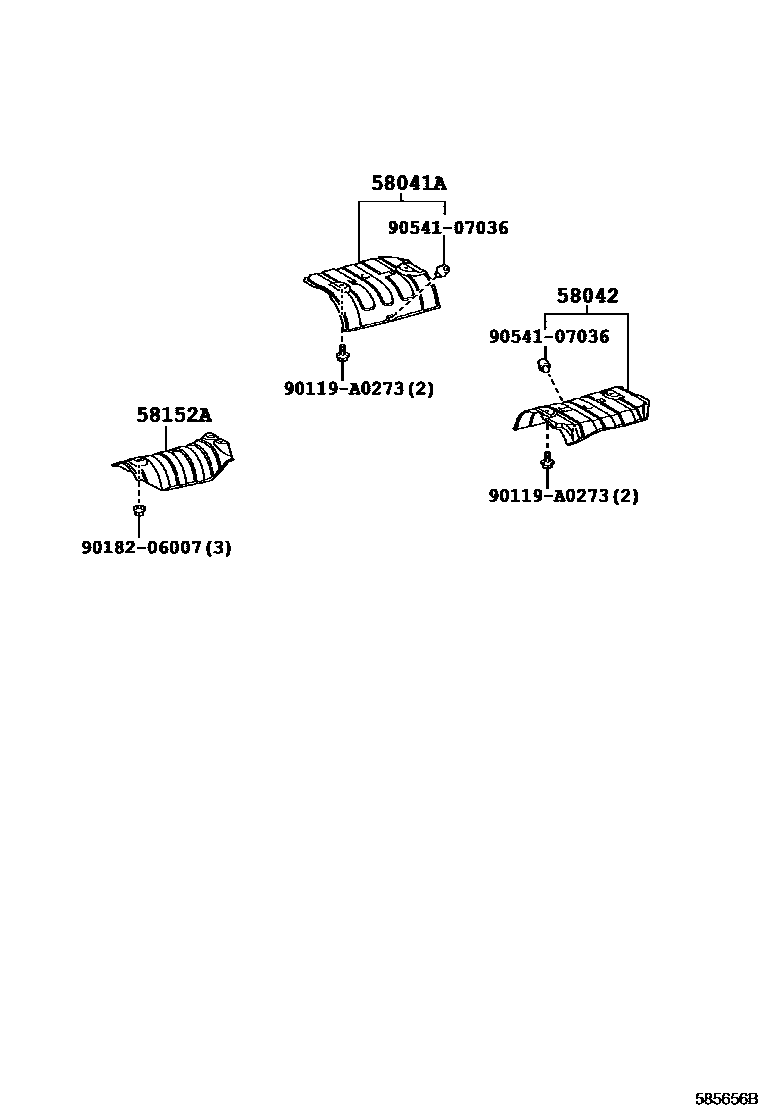

FLOOR INSULATOR

58041AINSULATOR SUB-ASSY, FRONT FLOOR HEAT, NO.1

main58041-06010iGSV60201611

main58327-06060iGSV60201510-201611

58042INSULATOR SUB-ASSY, FRONT FLOOR HEAT, NO.2

main58042-06010iGSV60201611

main58328-06040iGSV60201510-201611

58152AINSULATOR, FRONT FLOOR HEAT, NO.1 LOWER

main58152-07011iGSV60201510-201611

sub58152-07012

main58152-07012iGSV60201612

90119A0273

main90119-A0273

9018206007

main90182-06007

9054107036

main90541-07036

6 parts on this diagram · 1 diagram in section
