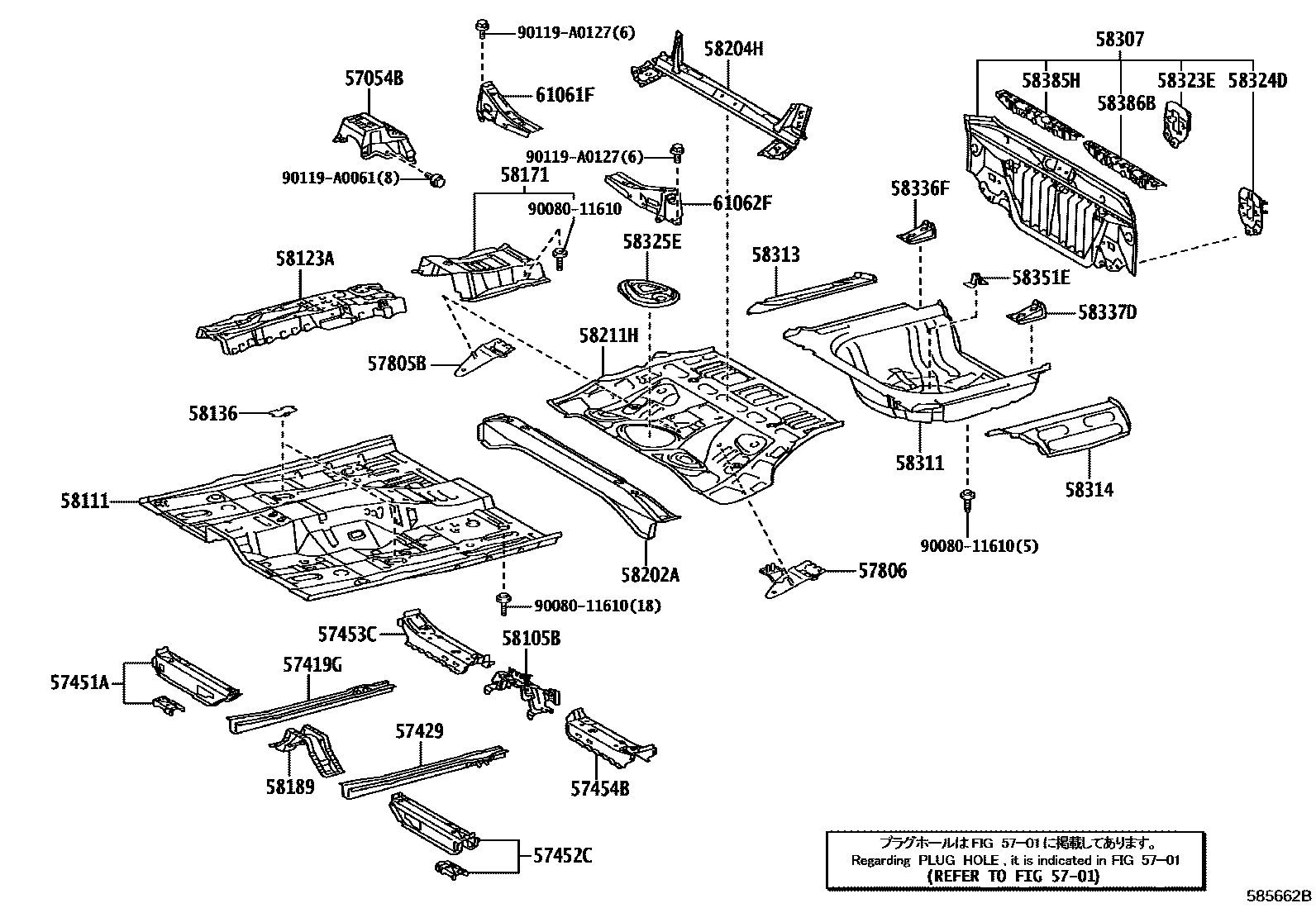

FLOOR PAN & LOWER BACK PANEL
5701
57054BREINFORCET SUB-ASSY, CROSSMEMBER FLOOR, NO.4
57419GREINFORCEMENT, FRONT FLOOR UNDER, REAR RH
57429REINFORCEMENT, FRONT FLOOR UNDER, REAR LH
57451AMEMBER, FRONT FLOOR CROSS, RH
57452CMEMBER, FRONT FLOOR CROSS, LH
57453CMEMBER, FRONT FLOOR CROSS SIDE, RH
57454BMEMBER, FRONT FLOOR CROSS SIDE, LH
57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH
57806REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH
58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB
58111PAN, FRONT FLOOR
58123ASUPPORT, SHIFT & SELECT LEVER
58136COVER, FRONT FLOOR HOLE
58171REINFORCEMENT, PARKING BRAKE BASE
58189REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET
58202APAN SUB-ASSY, CENTER FLOOR, FRONT
58204HPAN SUB-ASSY, CENTER FLOOR, REAR
58211HPAN, CENTER FLOOR
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58323EREINFORCEMENT, REAR BUMPER ARM SUPPORT, RH
58324DREINFORCEMENT, REAR BUMPER ARM SUPPORT, LH
58336FREINFORCEMENT, REAR FLOOR PAN, RH
58337DREINFORCEMENT, REAR FLOOR PAN, LH
58351EBRACKET, SPARE WHEEL CLAMP
58385HBRACKET, REAR BUMPER COVER, NO.1
58386BBRACKET, REAR BUMPER COVER, NO.2
61061FGUSSET SUB-ASSY, QUARTER WHEEL HOUSE, NO.1
61062FGUSSET SUB-ASSY, QUARTER WHEEL HOUSE, NO.2
9008011610
main90080-11610
90119A0061
main90119-A0061
90119A0127
main90119-A0127
36 parts on this diagram · 2 diagrams in section
