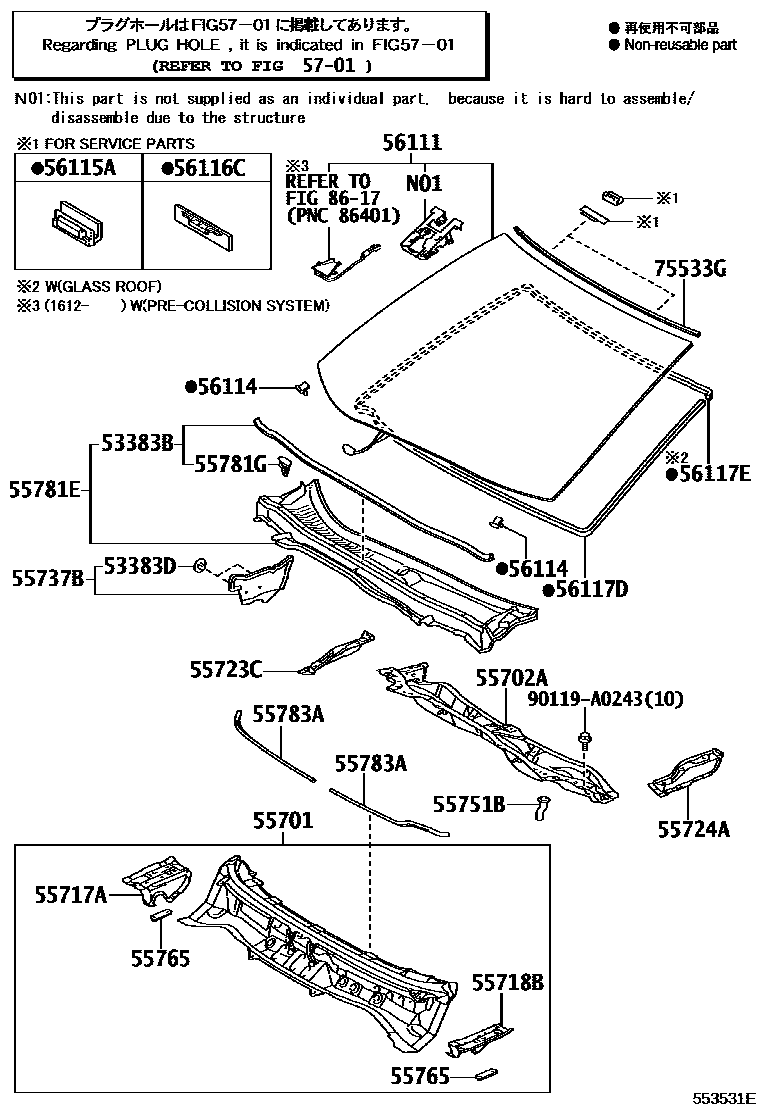

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-06180i201510

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main90467-09050i201510

55701PANEL SUB-ASSY, COWL

main55701-06290i201510

55702APANEL SUB-ASSY, COWL TOP, OUTER FRONT

main55702-06330i201510

55717APANEL, COWL TOP SIDE, INNER RH

main55717-33070i201510

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-33070i201510

55723CREINFORCEMENT, COWL TOP SIDE, RH

main55723-33081i201510

55724AREINFORCEMENT, COWL TOP SIDE, LH

main55724-33090i201510

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-33010i201510

55751BHOSE, COWL WATER EXTRACT, NO.1

main55751-06110i201701

main55751-33040i201510-201612

55765BRACKET, HOOD DAMPER MOUNTING

main55765-44010i201510

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-06250i201510

55781GCLIP, COWL TOP VENTILATOR LOUVER

main67867-12150i201510

55783APAD, COWL TOP SILENCER

main55783-33110i201510

56111GLASS, WINDSHIELD

main56101-06A40i201510-201807

56114RETAINER, WINDSHIELD GLASS

main56114-22050i201510

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100i201510

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050i201510

56117DDAM, WINDSHIELD GLASS ADHESIVE

main56117-06170i201510

*L=2914,INTERMITTENT WIPER-WITH(AUTO)

main56117-06170i201510

*L=2914

main56117-06170i201510

*L=2914,PRE-COLLISION SYSTEM-WITH&MOON ROOF-WITH(GLASS ROOF)&INTERMITTENT WIPER-WITH(AUTO)

main56117-06170i201510

*L=2914,PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-WITH(AUTO)

main56117-06170i201510

*L=2914,MOON ROOF-WITH(GLASS ROOF)&INTERMITTENT WIPER-WITH(AUTO)

56117EDAM, WINDOW GLASS ADHESIVE

5701

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-33100i201510-201807

8617

90119A0243

main90119-A0243

24 parts on this diagram · 1 diagram in section
