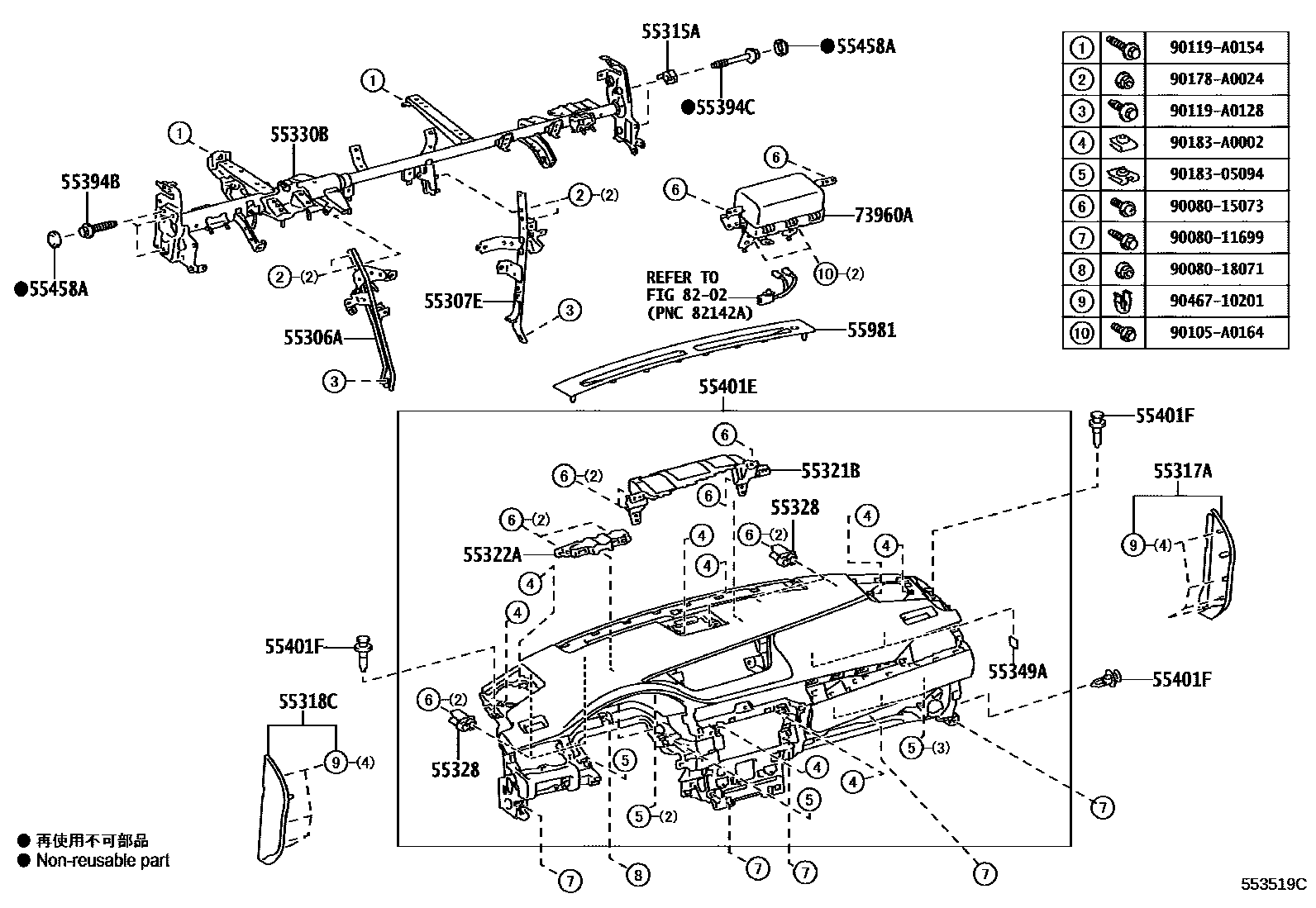

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-06100iGSV60201510

55307EBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-06100iGSV60201510

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-48160×2iGSV60201510

55317APANEL, INSTRUMENT SIDE, RH

main55317-06260-C0iGSV60201510-201807

BLACK,TRIM1#,2#,40

main55317-06260-E0iGSV60201510-201807

NOBLE BROWN,TRIM0#,41,5#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-06230-C0iGSV60201510-201807

BLACK,TRIM1#,2#,40

main55318-06230-E0iGSV60201510-201807

NOBLE BROWN,TRIM0#,41,5#

55321BBRACKET, INSTRUMENT PANEL, NO.1

main55321-06190iGSV60201510

55322ABRACKET, INSTRUMENT PANEL, NO.2

main55322-06170iGSV60201510

55328PIN, INSTRUMENT PANEL, NO.1

main55328-60090×4iGSV60201510

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-06450iGSV60201510

55349ACUSHION, INSTRUMENT PANEL

main55349-0C040×2iGSV60201510

55394BBOLT, INSTRUMENT PANEL

main90119-A0305×3iGSV60201510

55394CBOLT, INSTRUMENT PANEL

main90119-A0306×2iGSV60201510

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-06190-C1iGSV60201510-201807

BLACK,TRIM1#,2#,40

main55401-06190-E0iGSV60201510-201807

BROWN,TRIM41,5#

main55401-06190-E1iGSV60201510-201807

BROWN/IVORY,TRIM0#

55401FCLIP(FOR SAFETY PAD)

main52161-02020×3iGSV60201510

55458ACAP, INSTRUMENT PANEL SAFETY PAD

main55458-22110×5iGSV60201510

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-06100-C0iGSV60201510-201807

BLACK,TRIM1#,2#,40

main55981-06100-E0iGSV60201510-201807

NOBLE BROWN,TRIM0#,41,5#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-06210iGSV60201510

8202

9008011699

main90080-11699

9008015073

main90080-15073

9008018071

main90080-18071

90105A0164

main90105-A0164

90119A0128

main90119-A0128

90119A0154

main90119-A0154

90178A0024

main90178-A0024

9018305094

main90183-05094

90183A0002

main90183-A0002

9046710201

main90467-10201

28 parts on this diagram · 4 diagrams in section
